Description of the PH-9 SRM
12
+G stud welding gun
Operating Instructions Soyer Bolzenschweißtechnik 49

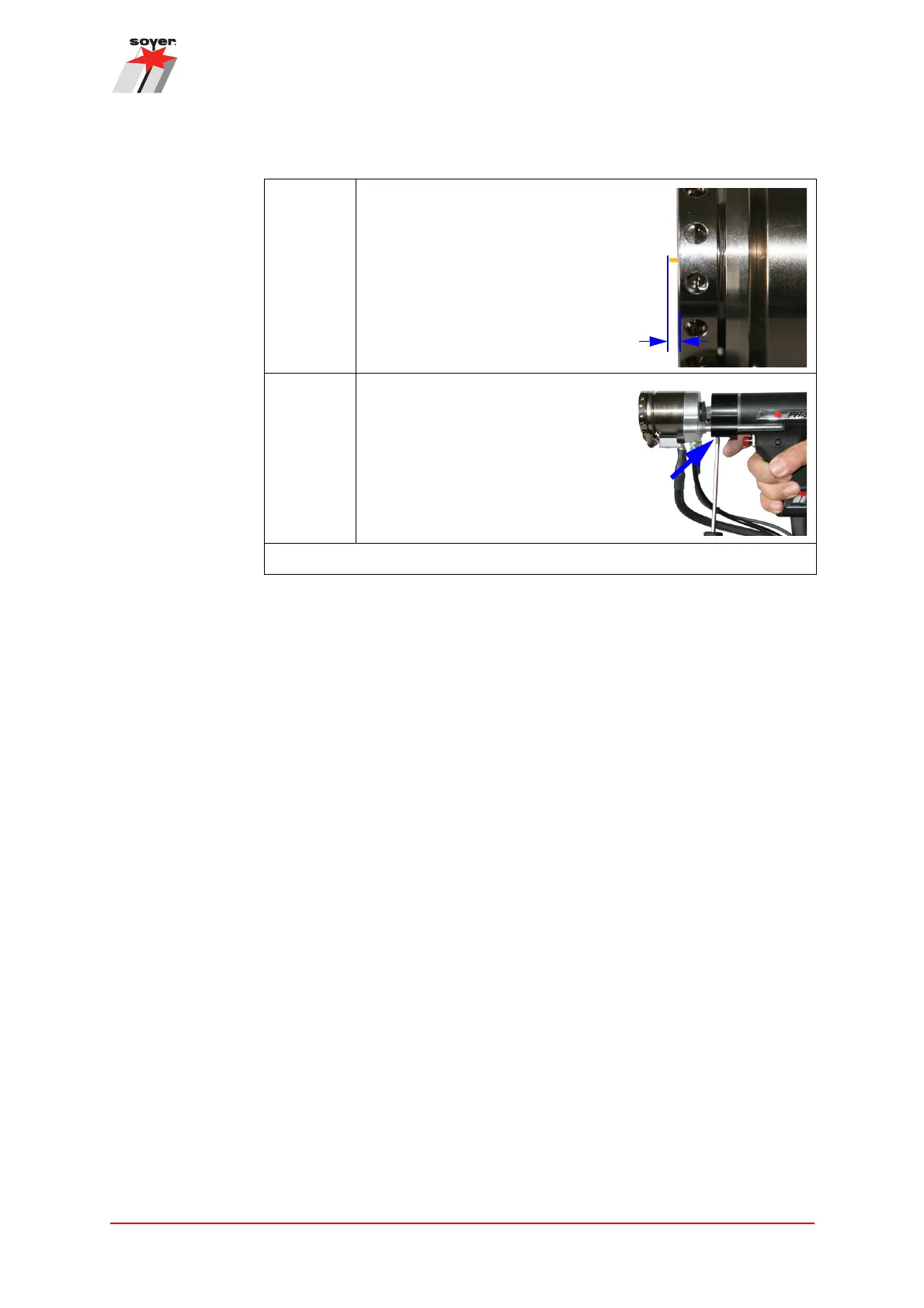

Step 10: Insert a stud and check the stud
protrusion.
The stud/stud flange must
protrude 1 - 1.5 mm from the
shielding gas shroud.
If applicable, correct the
settings of the stud chuck
by moving the support.
Step 11: Tighten the four Allen screws.
The assembly is complete.
Installing the SRM® stud chuck.
