Stihl TS 700, TS 800 - Tightening Torques, B 3.6; Reassemble Remaining Parts in Reverse Order

23TS 700, TS 800

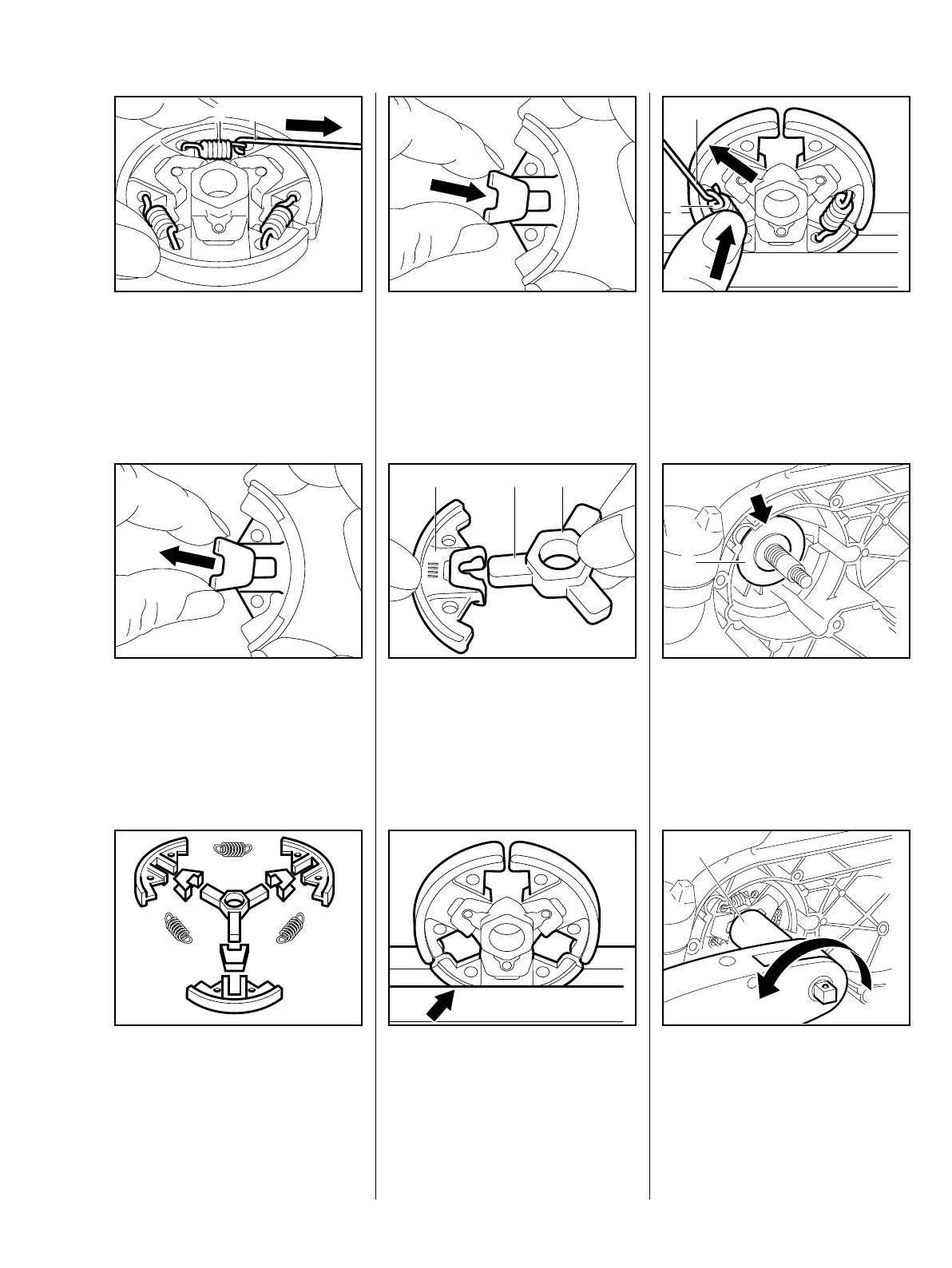

Disassembly
: Unhook the clutch springs (1)
with the assembly hook (2)
5910 890 2800.
VA
208RA028
21
– Remove the clutch shoes from
the carrier.
: Remove the retainers from the
clutch shoes.
VA
208RA031
– Clean the individual parts with a
standard degreasant not
containing any chlorinated or
halogenated hydrocarbons.
– Replace any defective parts.
VA
208RA026
Assembly
: Slide the retainers onto the clutch
shoes.
VA
208RA029
: Slide the clutch shoes over the
legs (1) on the carrier so that the
type number (2) faces towards
the longer hexagon (3).
VA
146RA208
2 1 3
: Clamp the clutch in a vice.
212RA288
VA
: Hook one end of the clutch spring
(1) into the clutch shoes.
: Pull the other end with the
assembly hook (2)
5910 890 2800 and press it into
the clutch shoe.
212RA289
VA
2
1
Installation
: Fit the cover washer (1) with the
shoulder facing outwards.
1
Top
376RA040 TG
: Screw on the clutch and tighten it
down with a size 21 insert (1)
5910 893 5616.
Tightening torques, b 3.6
– Reassemble remaining parts in
reverse order.
1
376RA041 TG
