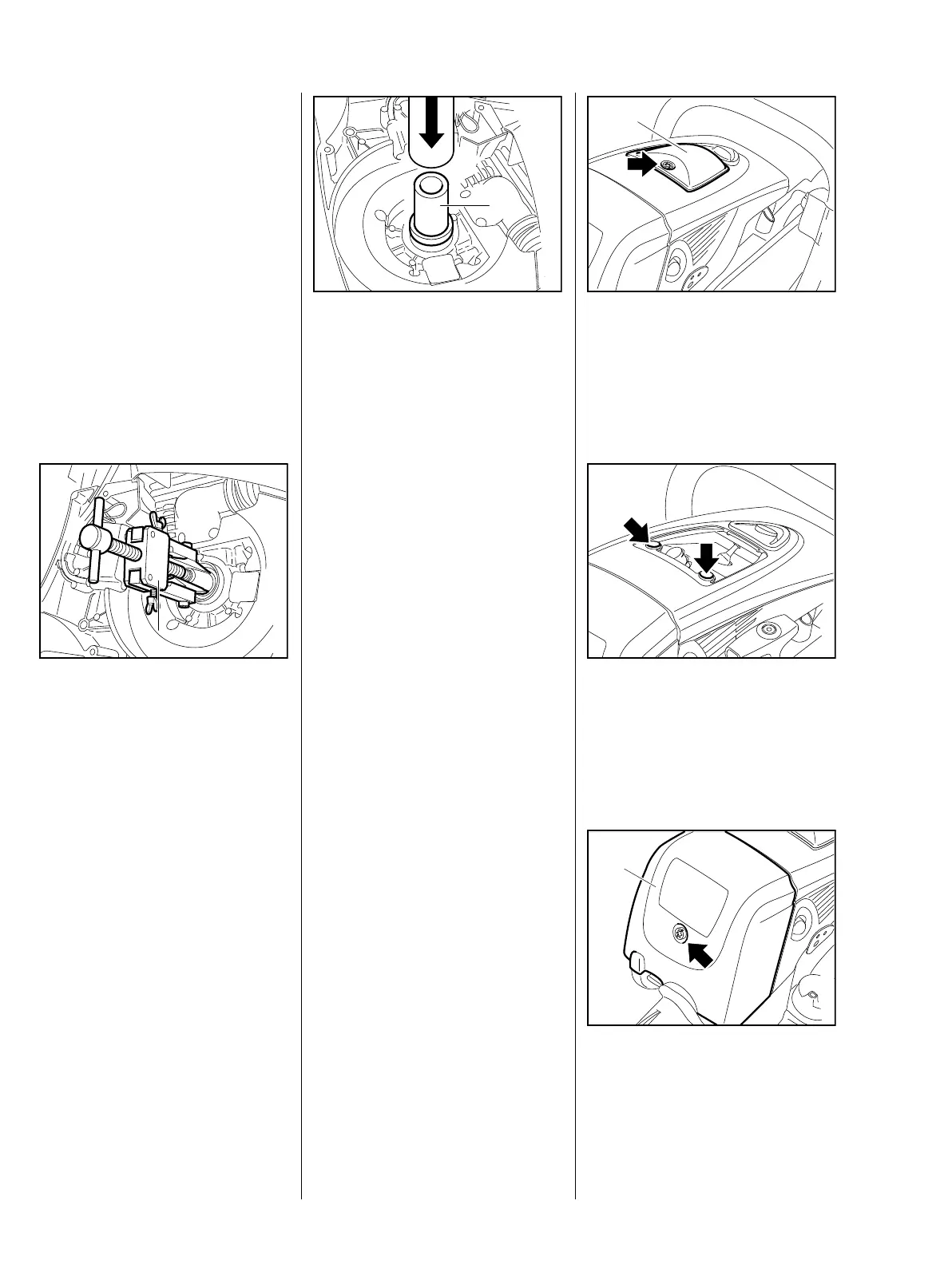

28 TS 700, TS 800
Ignition side
– Remove the flywheel,
see b 8.5
– Free off the oil seal in its seat by
tapping it with a suitable tube or a
punch.
: Apply puller (1) 5910 890 4400
with No. 3.1 jaws.
– Clamp the puller arms.
– Pull out the oil seal.
Important:
1
376RA060 TG
Avoid damage to the crankshaft
stub.
– Clean the sealing face with
standard solvent-based
degreasant not containing any
chlorinated or halogenated
hydrocarbons.
– Lubricate the sealing lips of the
new oil seal with grease.
– Slip the oil seal with the open side
facing the crankcase over the
crankshaft stub.
: Use the press sleeve (1)
4224 893 2400 to press it home.
– Turn the crankshaft through
1
376RA061 TG
several times after approx. 1
minute.
– Reassemble remaining parts in
reverse order.
: Remove screw from cap (arrow).
: Remove cap (1).
1
376RA062 TG
: Undo screws (arrows).
376RA063 TG
: Undo screw (arrow).
: Remove the filter cover (1).
376RA064 TG
1
7.4 Remove shroud
