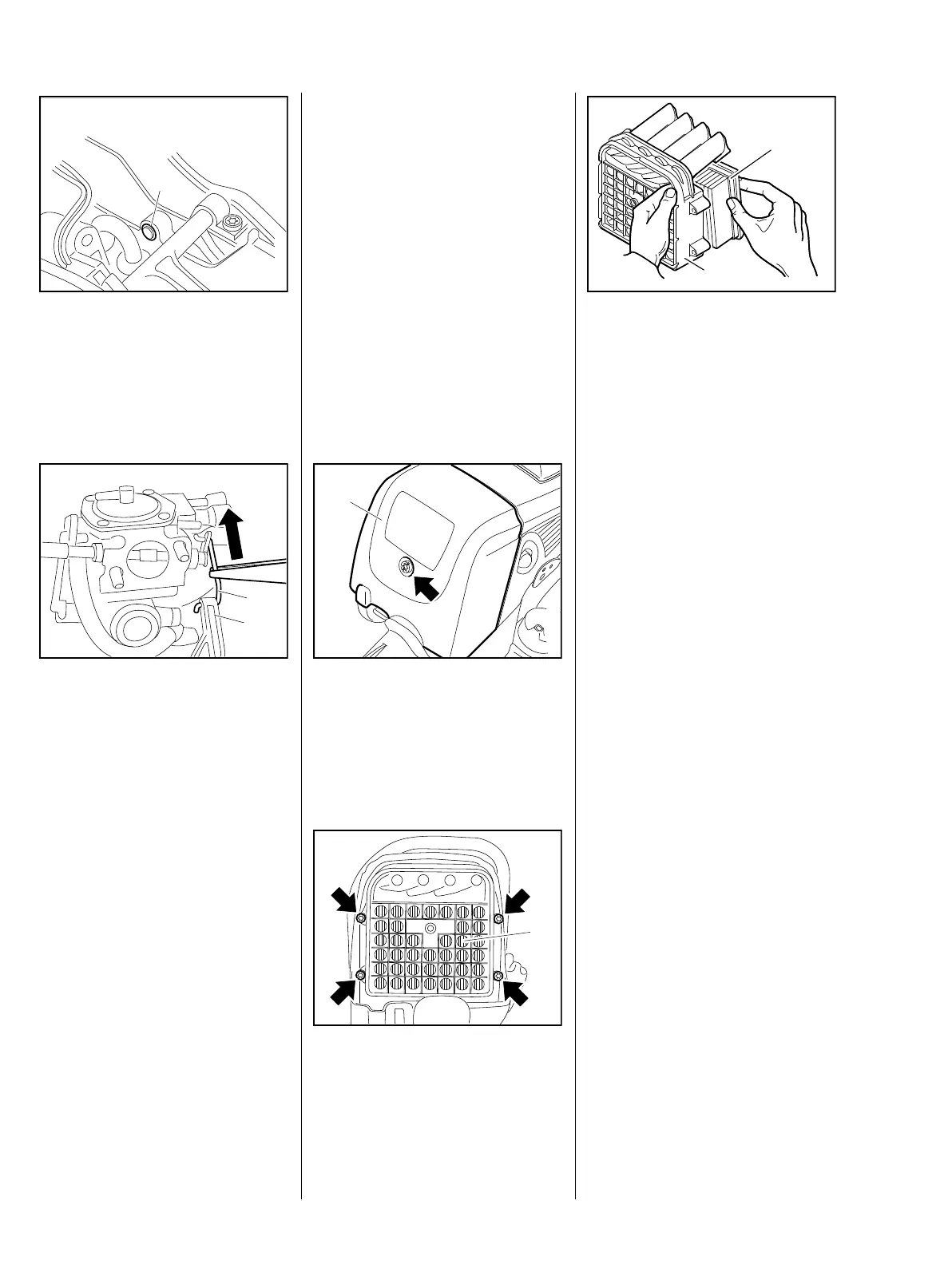

: Slide the e-clip (1) into the groove
in the axle pin.
1
376RA180 TG
: Hook the throttle rod (1) into the
throttle trigger (2) from below and
draw it into the groove in the
throttle trigger with a suitable tool
until the throttle rod engages in
the throttle trigger.
1
2
376RA198 TG
Note:
The throttle rod may work loose
during operation if it is not properly
engaged.
– Check correct functioning.
– Reassemble remaining parts in
reverse order.
Dirty air filters reduce engine power,
increase fuel consumption and
make starting more difficult.
The air filter should be checked
when there is a noticeable loss of
engine power.
– Refer also to troubleshooting,
b 4.4
: Remove the screw (arrow) from
the filter cover (1).
– Remove the filter cover.
376RA064 TG
1
: Remove the screws (arrows)
from the filter housing (1).
– Remove the filter housing.
– Clean away loose dirt from
around the filter.
1
376RA129 TG
: Remove the air filter (1) from the
air filter housing (2).
– Clean away loose dirt from
around the filter.
– Check the filter and replace it if
damaged or dirty.
1
2
376RA128 TG
Note:
The air filter components for this
machine are carefully matched. For
this reason, the auxiliary filter must
always be replaced together with
the main filter.
Note:
The quality of the filter elements
used is particularly important on
account of the special operating
conditions prevailing when using a
cut-off machine.
