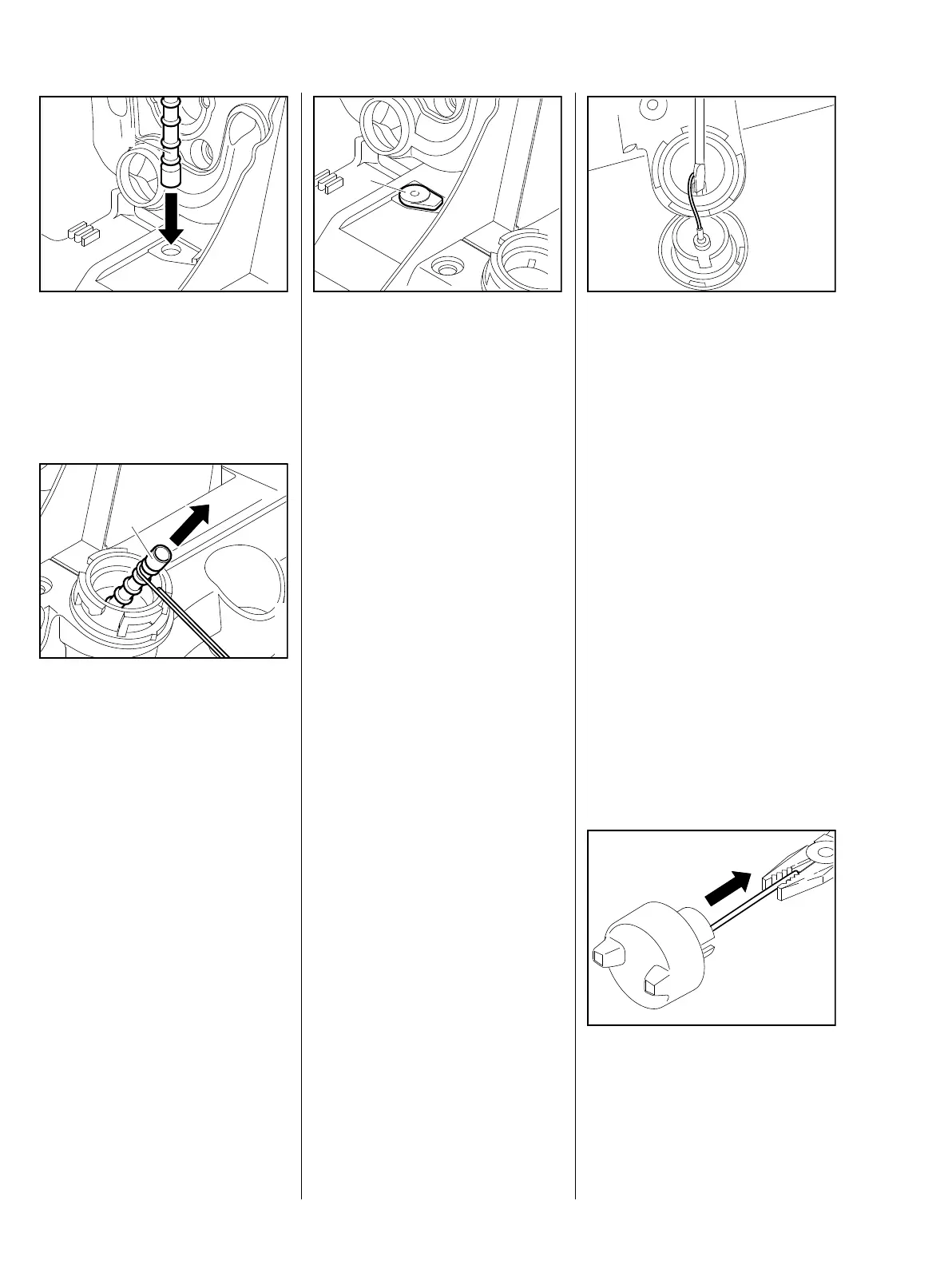

: Push the fuel hose (1) into the
hole in the tank housing.
1
376RA172 TG
: Pull the fuel hose (1) out of the
fuel tank with assembly hook (2)
5910 893 8800.
Take care not to overextend the fuel
hose.
– Attach the pick-up body and line
1
376RA173 TG
up the fuel hose, b 12.7.1
: Press the tab on the fuel hose (1)
into the fixture on the tank
housing and line it up.
– Reassemble remaining parts in
reverse order.
1
376RA196 TG
: Prise the cord of the filler cap out
of its mount inside the tank.
– Examine the filler cap, cord and
sealing ring, and replace if
necessary.
The filler cap is supplied complete
376RA200 TG
with cord and sealing ring.
If only the cord or sealing ring is
damaged, these can also be
replaced separately.
– Examine the sealing ring and
replace it if necessary.
: Pull the cord out of its mount in
the filler cap with a suitable tool.
376RA201 TG
12.7.3 Fuel filler cap
