65TS 700, TS 800

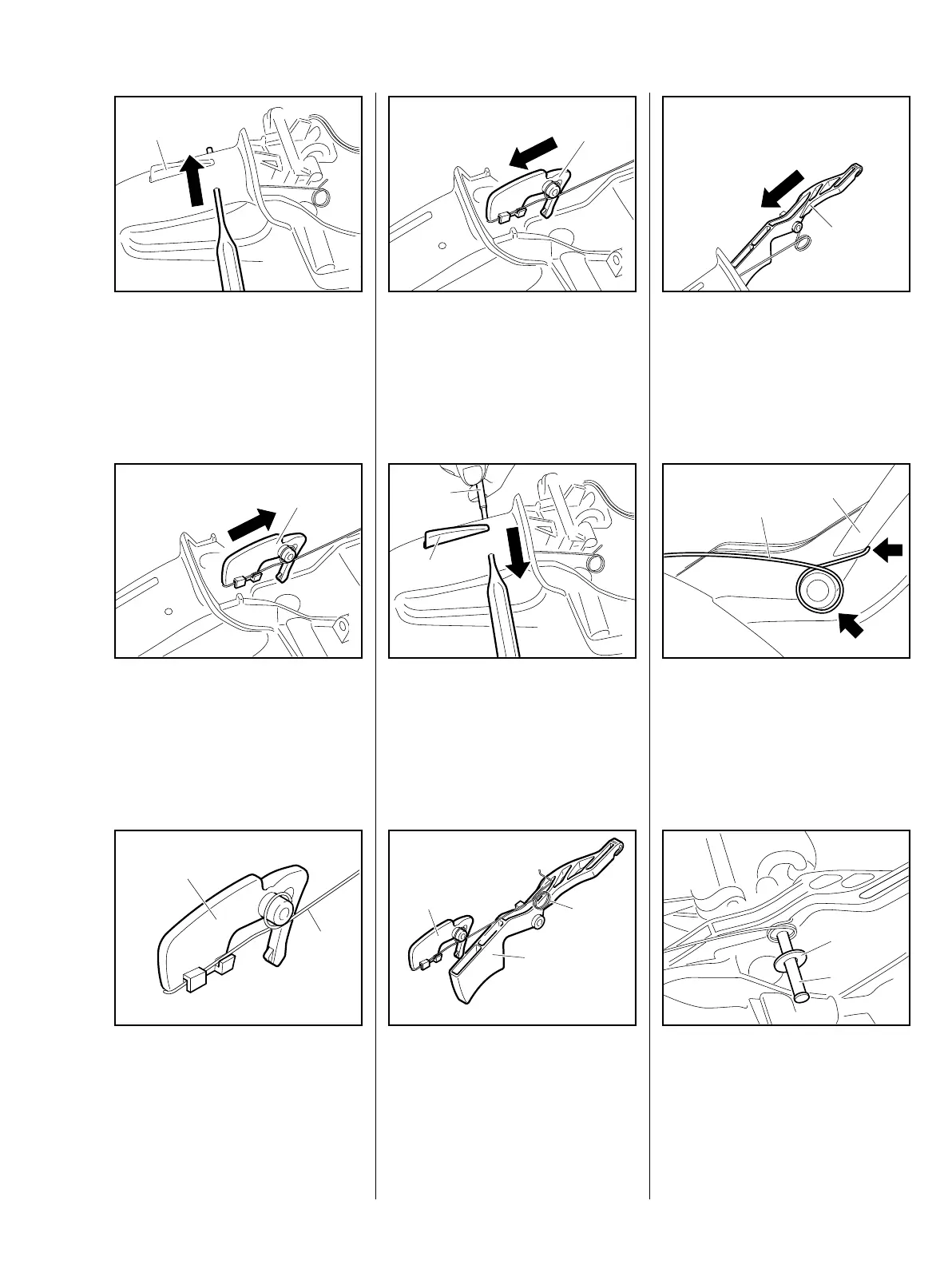

Removal / installation of the
interlock lever
: Use a suitable drift to drive out
the pin on the interlock lever (1).
1
376RA187 TG
: Remove the interlock lever (1)
with torsion spring from the
handle of the tank housing.
1
376RA188 TG
: Note the installed position of the
torsion spring (1) in the interlock
lever (2).
The torsion spring or interlock lever
must be replaced if damaged.
2
1
376RA189 TG
: Slide the interlock lever (1) with
torsion spring into the handle of
the tank housing.
1
376RA190 TG
: Fix the interlock lever (2) with a
suitable drift.
: Position the pin (1) at the drift and
push it into the hole.
1
2
376RA175 TG
Installing the throttle trigger
: Note the assembly sequence and
installed position of the interlock
lever (1), throttle trigger (2) and
torsion spring (3).
1
2
3
376RA176 TG
: Slide the throttle trigger (1) into
the handle of the tank housing
and hook the interlock lever into
the throttle trigger.
1
376RA177 TG
: Hook the torsion spring (1) into
the throttle trigger (2) (arrows).
1
2
376RA178 TG
: Position the washer (1) on the
throttle trigger and push the axle
bolt (2) through the washer,
throttle trigger and bearing hole.
1
2
376RA179 TG
