41TS 700, TS 800

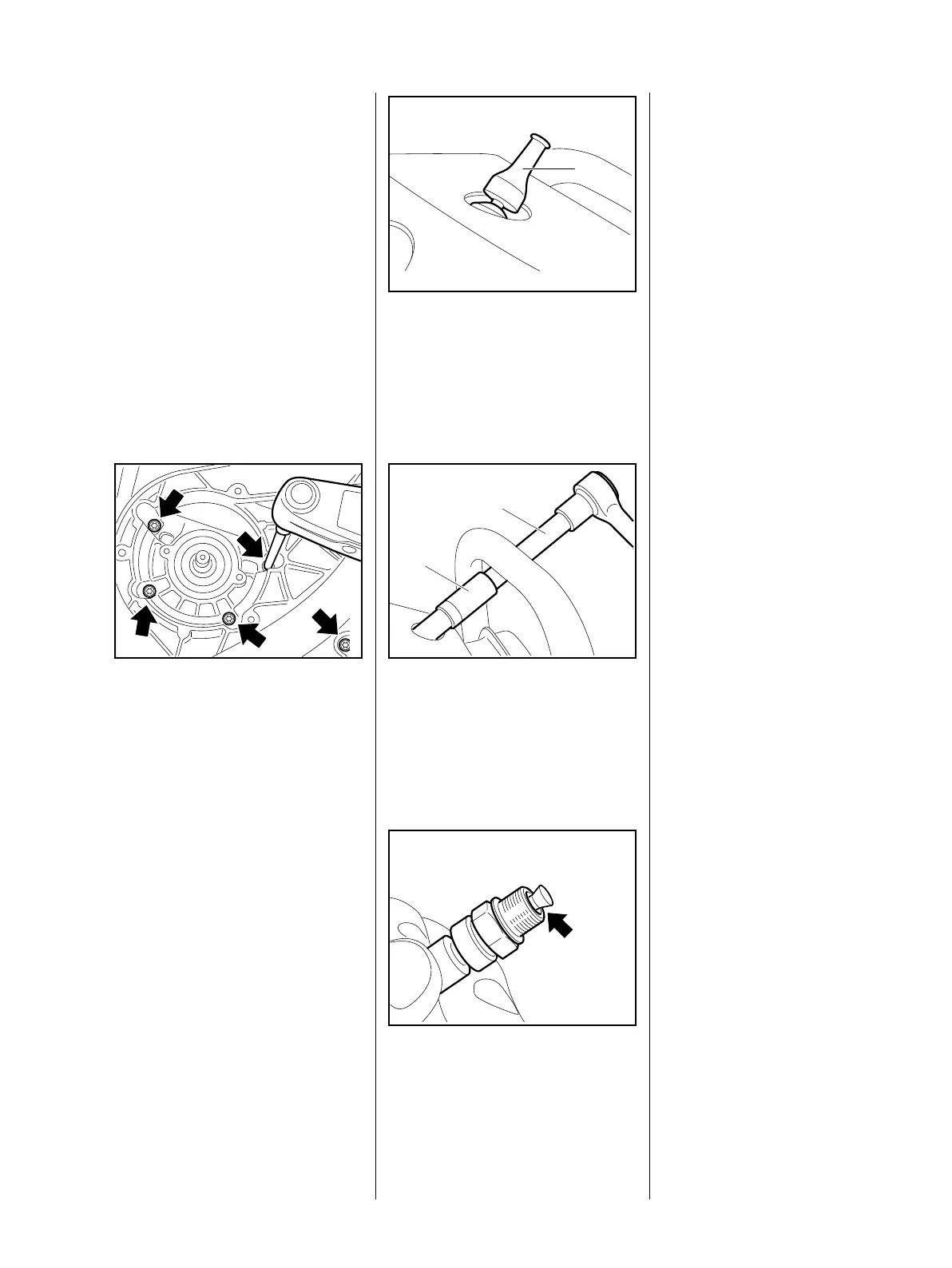

– Turn the spindle clockwise to
remove the assembly tool.
: Insert the screws (arrows) on the
clutch side and tighten them
down crosswise.
– Tightening torques, b 3.6
– Install the oil seal on the ignition
side, b 7.3
376RA127 TG
– Check the mating face for the
cylinder on the crankcase and
remove any excess gasket
material.
– Reassemble remaining parts in
reverse order.
– Remove shroud, b 7.4
– Remove the decompression
valve (1).
1
376RA335 TG
: Fit insert (1) 5910 893 2804 on
the decompression valve, then
mount the extension (2) on the
insert and unscrew the
decompression valve.
1
2
376RA336 TG
: Examine the sealing cone
(arrow) on the decompression
valve for signs of damage.
376RA337 TG
Note:
Use a new decompression valve if
the sealing cone on the
decompression valve does not seal
tightly or is damaged.
– Fit the decompression valve by
hand and screw it in.
– Reassemble remaining parts in
reverse order.
– Tighten the decompression valve
down firmly, tightening torques,
b 3.6
– Install the shroud, b 7.4
7.9 Decompression valve
