60 TS 700, TS 800

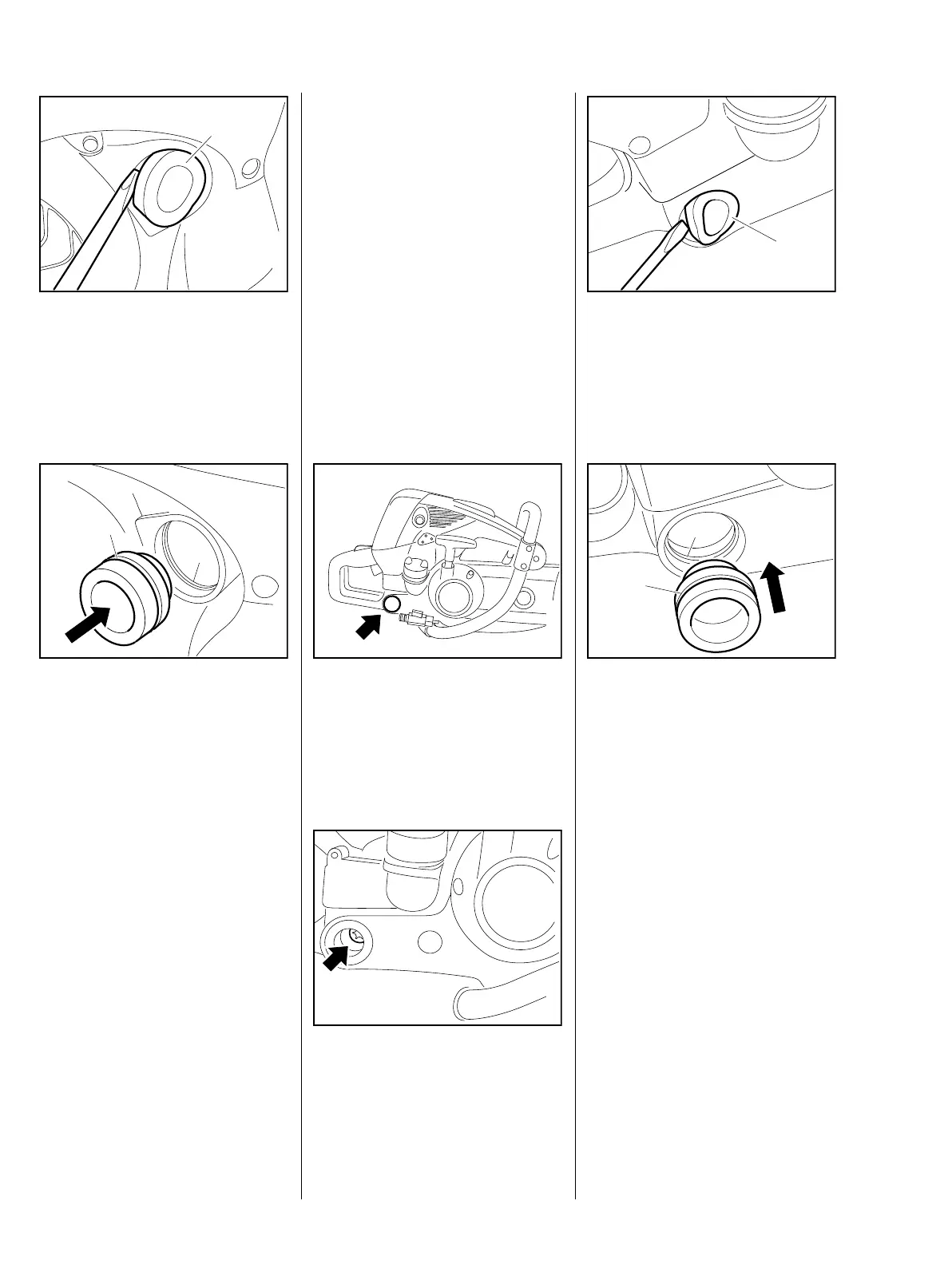

: Prise off the rubber buffer (1) with
a suitable tool.
1
376RA295 TG
: Press the rubber buffer into the
mount in the housing until the
circumferential
groove (1) in the buffer engages
the tapered end (2) of the mount.
– Reassemble remaining parts in
reverse order.
1
2
376RA296 TG
– Tightening torques, b 3.6
Rubber buffer on clutch side
Damaged rubber buffers (annular
buffers) must always be replaced.
: Prise the plug (arrow) out of the
rubber buffer.
376RA297 TG
: Remove the screw (arrow) from
the rubber buffer.
376RA298 TG
: Prise off the rubber buffer (1) with
a suitable tool.
1
376RA299 TG
: Press the rubber buffer into the
mount in the housing until the
circumferential
groove (1) in the buffer engages
the tapered end (2) of the mount.
– Reassemble remaining parts in
reverse order.
1
2
376RA300 TG
– Tightening torques, b 3.6
