3 Overview

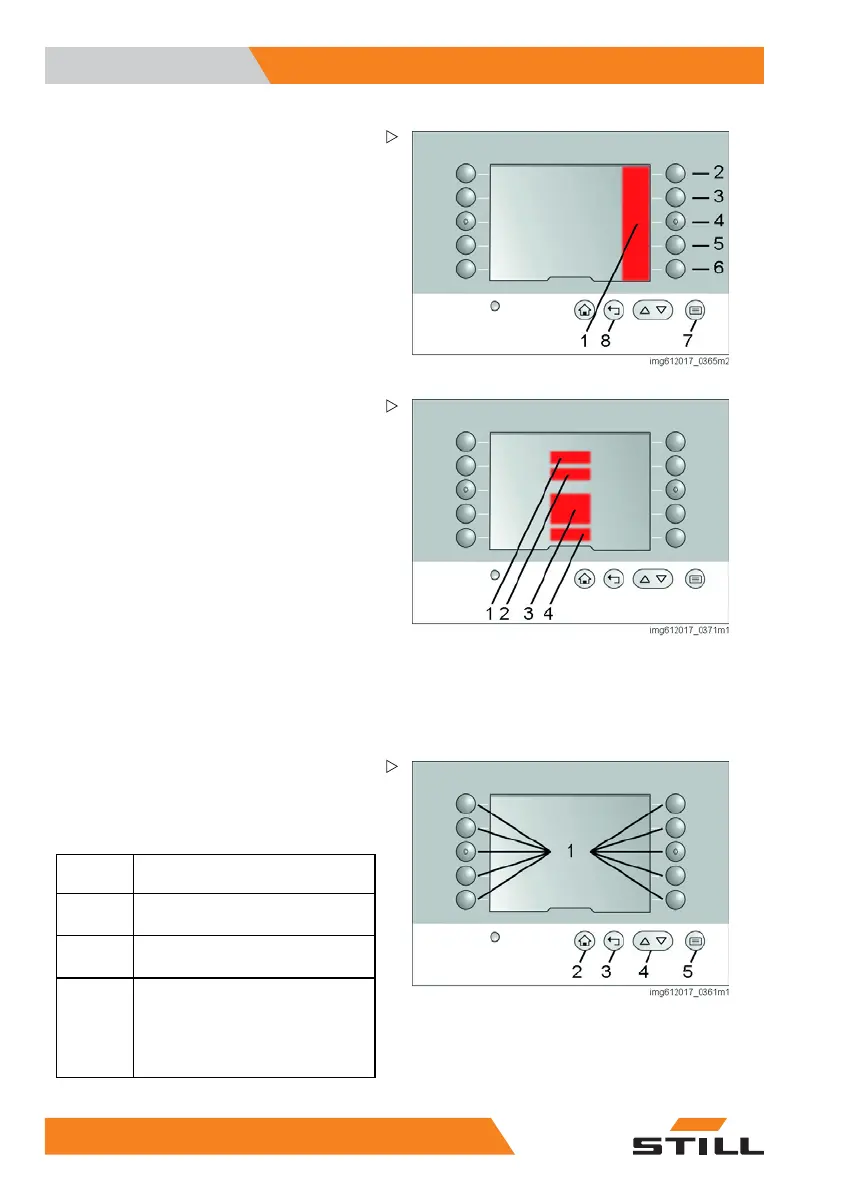

Operating display
Procedure
– Push button (7). The menu in area (1)
opens.
– Press key sequence (6), (3) an
d(5).
– Select the status bar field using button (2),
(3) or (4).
– In the list, use buttons (2) to (6) to select the
desired information.
– Exitthelistbypressingbu
tton (8).
Central information area
The central information area simultaneously
shows four values that are relevant for opera-
tion:
• Weight (1):
The maximum permissible weight for the
current lift height. If the optional weight
measurement is available, the current
weight of the load being lifted.
• Lift height (2):
Current height of the fork arms (upper edge)
• Type of guidance and steering angle (3)
• Driving speed (4)
This part of the display cannot be parame-
terised.
Operation
The display is operated using 15 membrane
switches. The function of buttons (2) to (4) is
fixed. Button (5) has two functions.
Item
number
Function
2
Changes the view back to the
main page
3
Changes the view back to the
next-highest menu
4
If the arrow
is displayed at the
upper or low
er edge of the
right-hand
menu bar, the content
can be change
dusingthesetwo
push buttons.
34 5
231 804 2502 EN - 11/2017
