Operating display
Changes the view to the main
page with the menu shown in the
right-hand menu bar.
5
If a settings page is displayed, the
current setting can be saved.

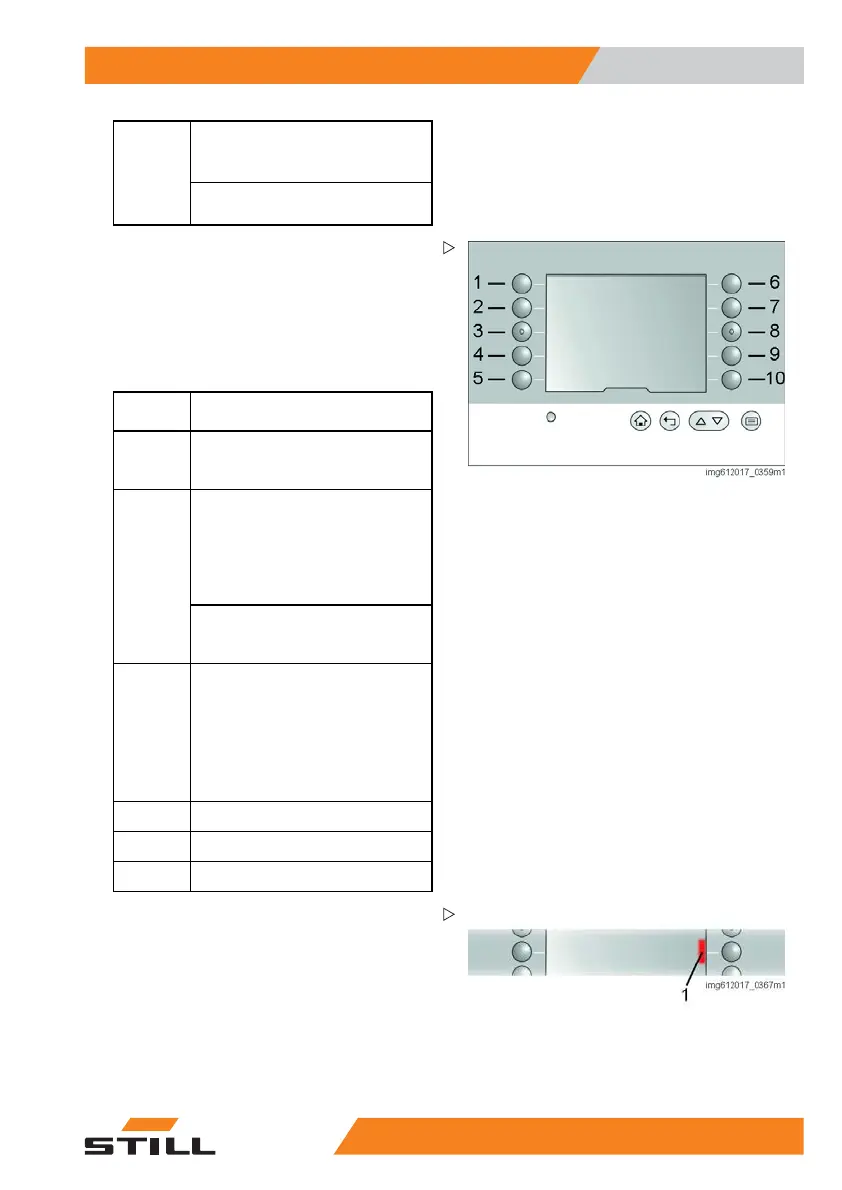

The function of membrane keys (1) to (10)
is shown directly next to the keys in the
display. The function of the buttons changes
depending on the menu that is displayed.
The layout of the homepage is always the
same when the industrial truck is delivered ex
works.
Item
number
Function
1
The energy-saving mode of the
industrial truck is activated or
deactivated.
The navigation information is
shown or hidden. For this, the
key switch for the navigation
must be set to AUTO. Otherwise,
the symbol is greyed out and
therefore cannot be selected.*
5
If the button is pressed and held
when a drive order is active, the
drive order is deleted.*
6
The right-hand menu bar with the
available data regarding height
preselection opens. If the symbol
is greyed out, the industrial truck
is equipped with the navigation
option and the key switch for
navigation is set to AUTO.*
9
Switch the wo
rk light* on/off
10 Switch the fan* on/off
*Option
If a functio
n or button is selected, this is
indicated w
ith a coloured bars (1) next to
the button.
If the function is deselected, this
coloured ba
r is no longer present.
