Operation 4
Driving
Ancillary movements
All movements of the load apart from the main
lift are categorised as ancillary movements.
Standard functions are:
• Sliding the fork.
• Swivelling the fork.
• Lifting the auxiliary lift.
Touch the right-hand senso
rsurface(4)
and move the left-hand oper
ating lever in
the direction (5) or (6) to t
rigger the reach
movement to the left or righ
t.

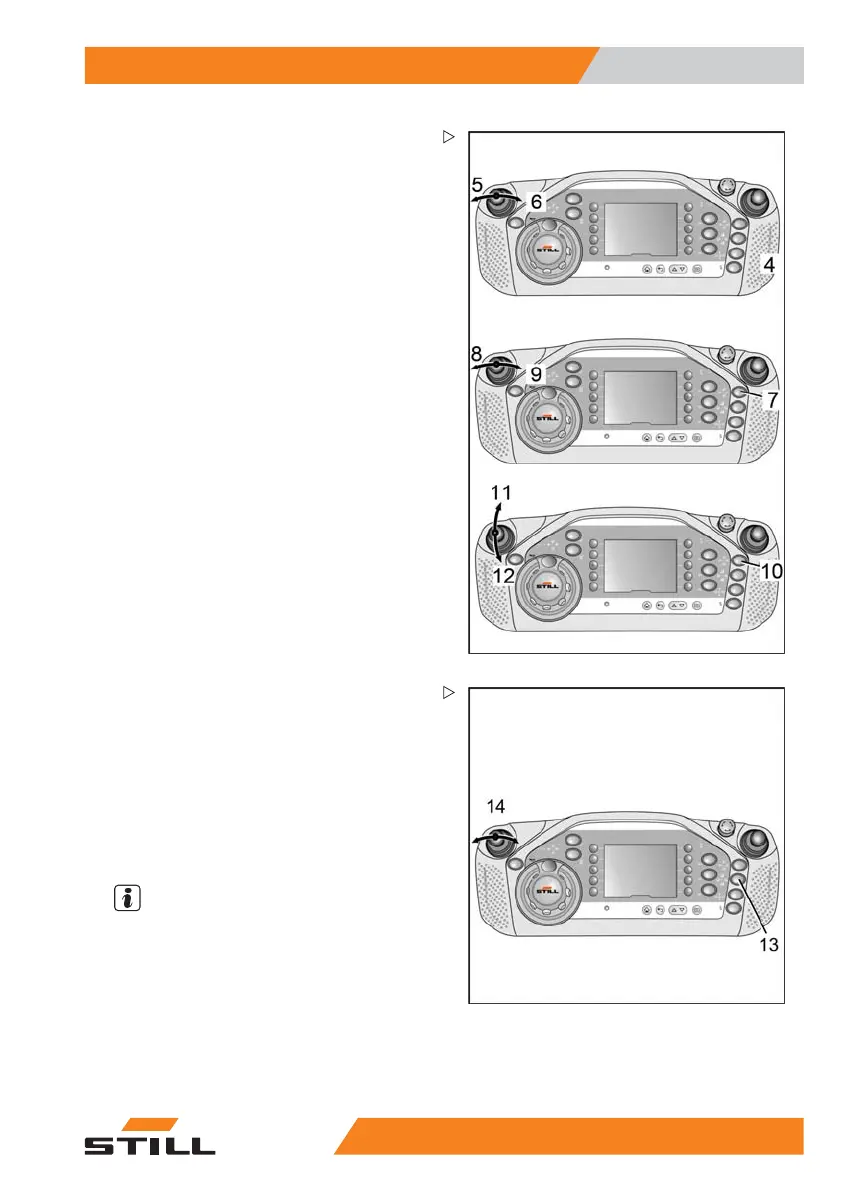

Pressing button (7) and moving the left-hand
operating lever in direction (8) or (9) triggers
the swivel-shift movement to the left or right.
Pressing button (10) and moving the left-hand
operating lever in direction (11) or (12) triggers
the lifting or lowering of the auxiliary lift.
Swivelling and sliding the swivel fork
180° synchronously
Pressing selection key (13) and moving the
left-hand operating lever (14) to the right or
left triggers the synchronous movement. This
movement can be interrupted at any time or
continued in the opposite direction. To do this,
release the operating lever or the selection
key.
NOTE
The synchron
ous movement only starts when
the turret he
ad is in one of its end positions.
When the sync
hronous movement reaches
theend,anaco
ustic signal is sounded. Always
carry out the syn
chronous movement until the
end. The swivel f
ork is then in its right or left
end position.
