Stryker LUCAS 3 Service Manual

LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 28 of 91

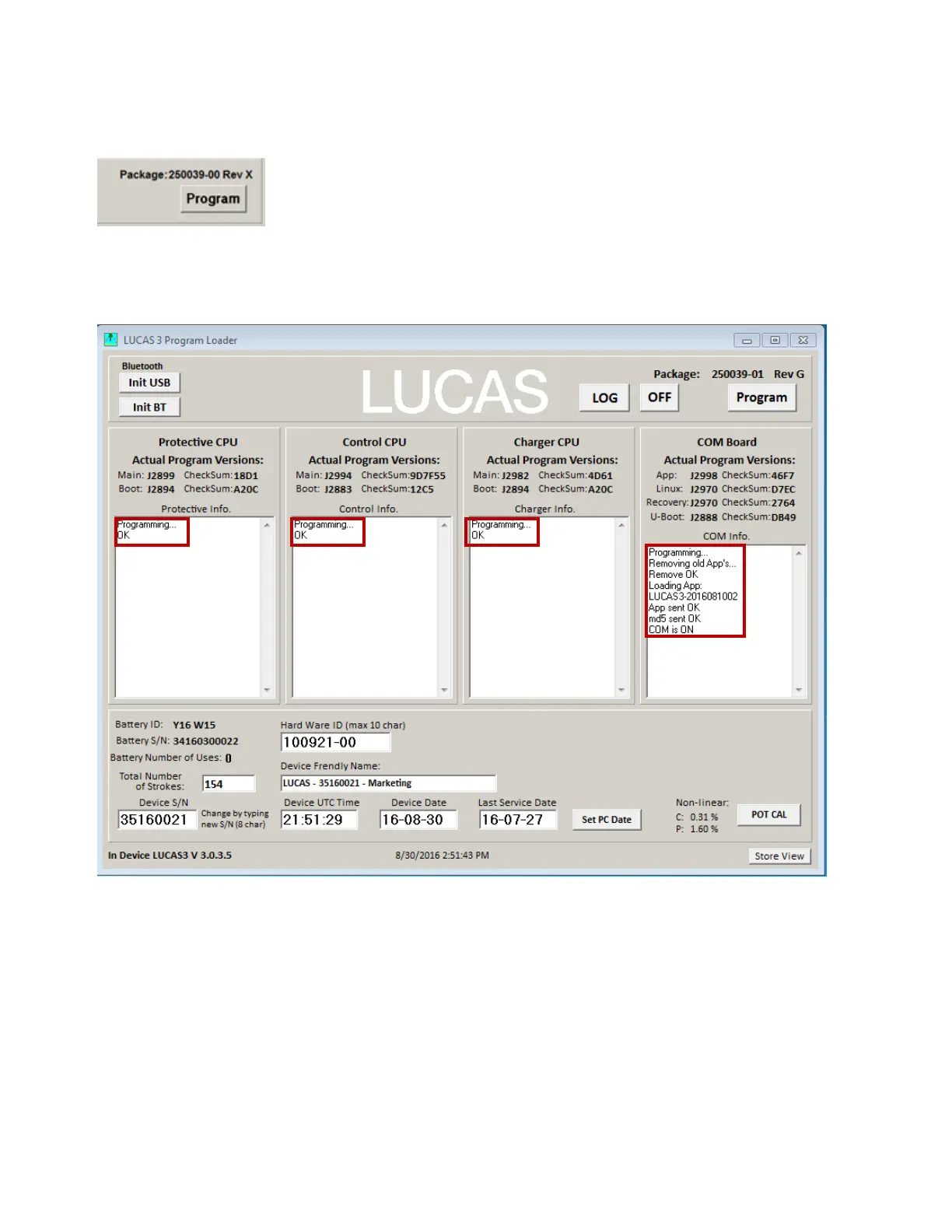

Update LUCAS Software
1. Click Program in the upper right corner to update LUCAS software.
The programming process will start and update the software for each CPU. Note: Do not disconnect the
connection during the software update. When all four CPUs are updated, following window will appear. Each
CPU window will have OK to indicate the update is complete.
- LUCAS 3 Version 3.0 (Part No: 250039-00) –

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
