• Lock the four screws with thread lock fluid and tighten to 5.3 in-lbs / 0.6 Nm with a Torque Screwdriver
PH1.
3. Test
Perform a Function Check according to Function Check
.
How to Replace the Bellows
1. Disassembling
• Take off the suction cup
• Remove the clamp by removing the two screws with a Torx 10 (T10) or Torx 20 (T20) Screwdriver.

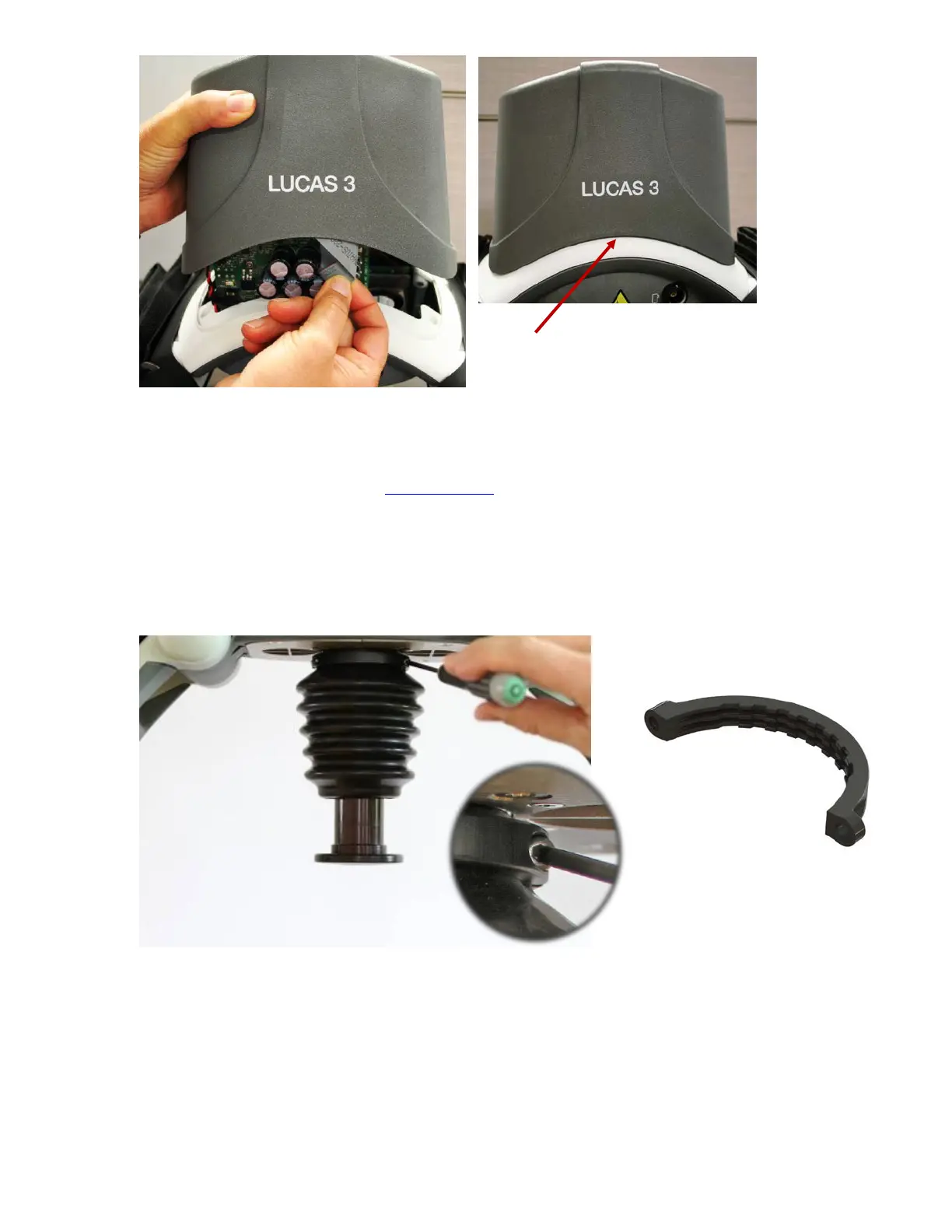

• Remove the Bellows ring, start by treading the bellows over the ring, then continue to take off the ring as
showed in the picture.
Correct hood installation

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
