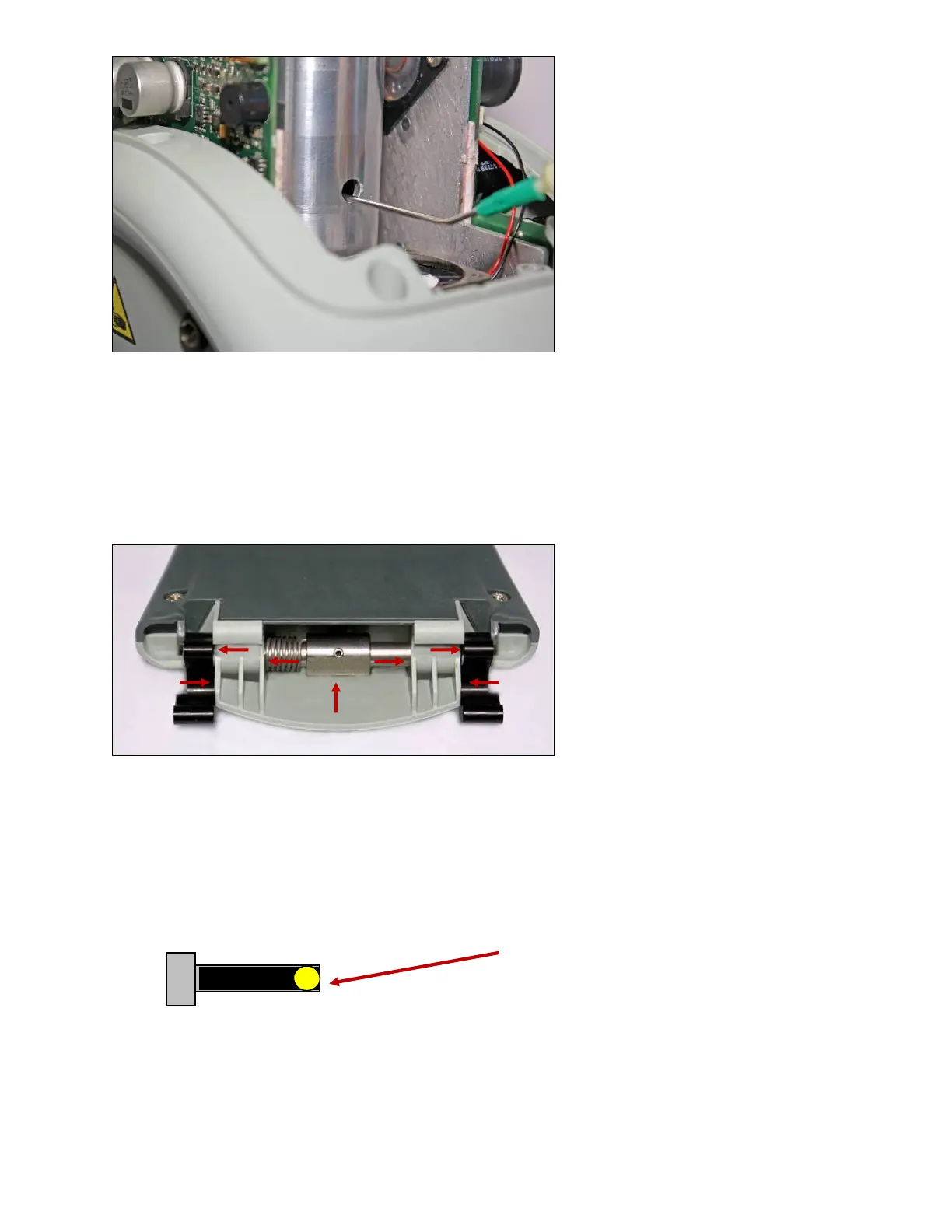

Claw Lock Lubrication
Use PTFE Spray Lubricant (21576-000023)
Spray a small quantity of lubricant on all movable parts (gliding surfaces of the claws, where the axle goes into the
plastic and the locking pin), see picture below.
Open and lock the mechanism continuously to work in the lubricant.
Replacing Parts or Modules in LUCAS
How to Apply Thread Lock Fluid
The normal amount of Thread Lock Fluid should be corresponding to the diameter of the screw and the Thread Lock
Fluid should be applied at the lower end of the screw, see picture below:
This general description shall apply on all use of Thread Lock Fluid on LUCAS according to this manual.
How to Replace the Hood
WARNING: Take Off The Battery Before Opening The Device!
Thread Lock Fluid Thread Lock Fluid Thread Lock Fluid

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
