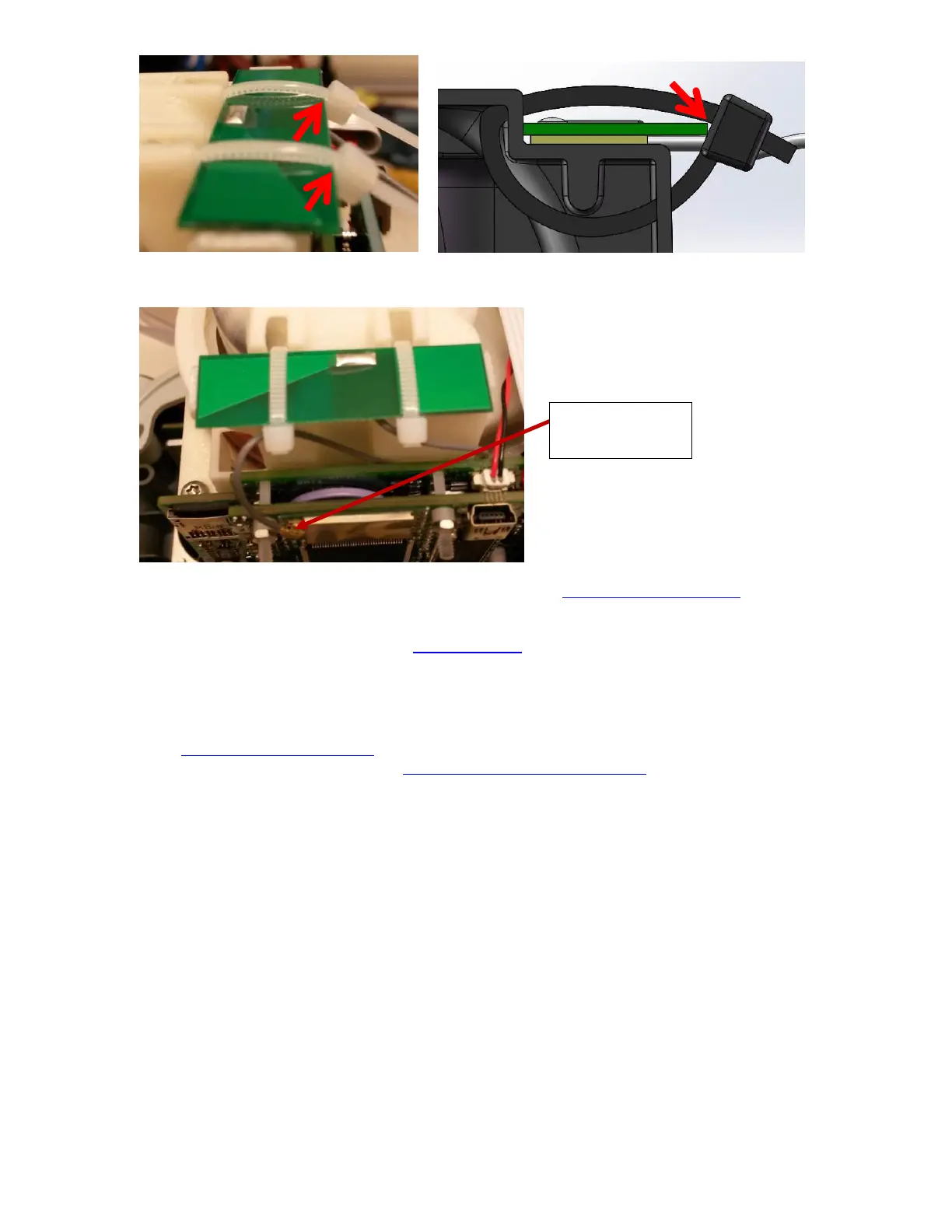

• Cut off the excess cable tie tails
• Connect antenna to the Communication Board and tuck away the antenna cable beneath antenna and
between belt cover and Control PCBA.
• Put back the Hood according to Reassembling instruction in How to Replace the Hood
.
3. Test
• Perform a Function Check according to Function Check
How to Replace the Communication PCB
1. Disassembling
• Before disassembling and changing any PCB and if possible; connect a laptop and perform “Store View”
using LUCAS® 3 Program Loader
.
• Follow Disassembling instructions in How to Replace the Controller PCB to take out the Controller PCB.
• Use a plier carefully cut off 3 plastic screws that hold the communication PCB on Controller PCB
• Save the plastic spacers and the nuts for reuse
Antenna Cable
Connector

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
