• Apply transfer tapes (approximate 7x8mm, 2x) to the belt cover, and remove the tapes protective top layer.
• Place the antenna on top of the transfer tapes and against the surfaces marked with red arrows and in
between flanges marked with green arrows.

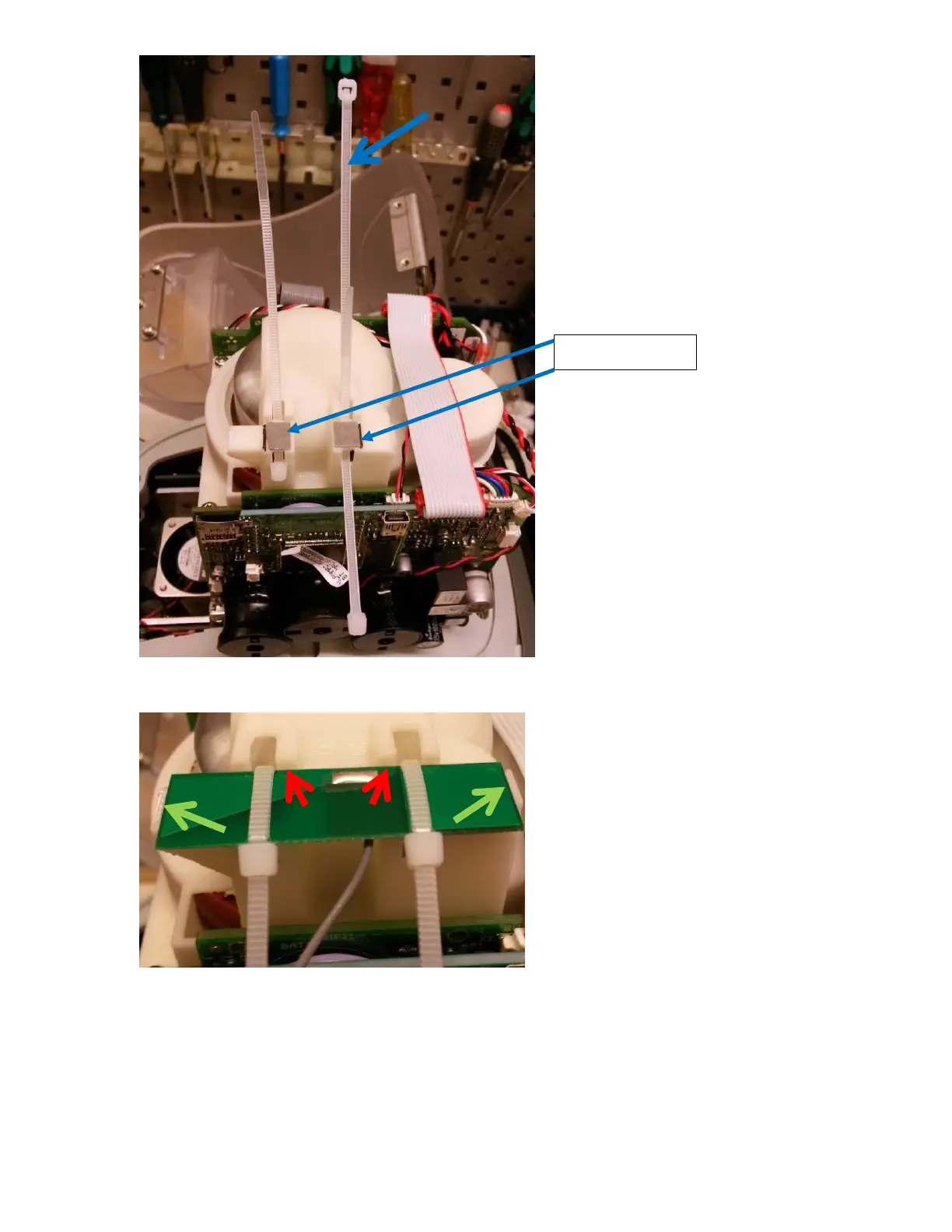

• Close and tighten the cable ties by hand until the antenna is secured as shown in the pictures below, with
the cable tie closing position against the edge of the antenna board.
