Stryker LUCAS 3 Service Manual

LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 73 of 91

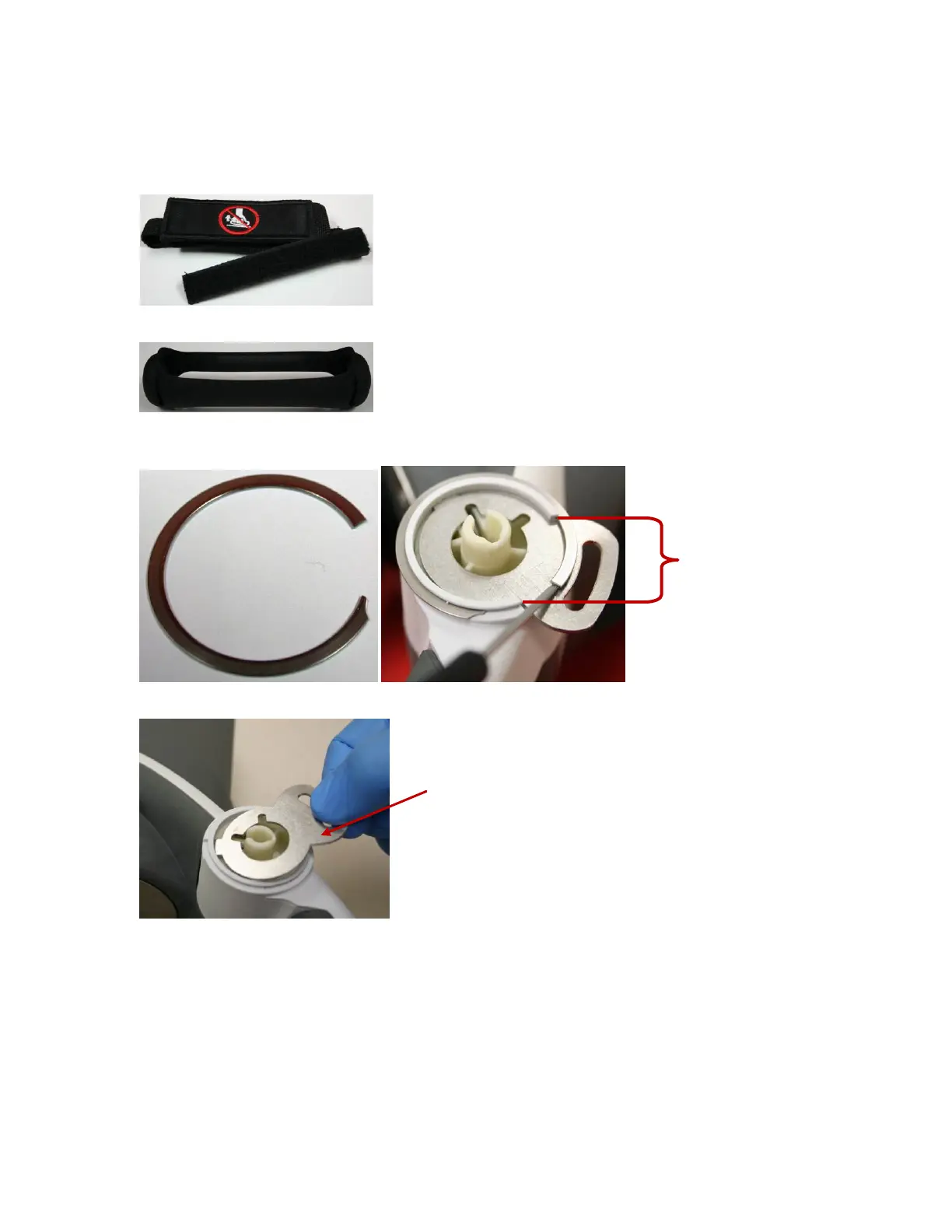

How to Replace the Support Leg
This procedure can be used for replacing the Support Leg or replacing the Axel-Angle Shaft.
1. Disassembling
• Remove the Patient Strap.
• Remove the Bumper.
• Remove Snap Ring by turning the open end of ring to the open edges of the leg, shown in the picture; and
take it out (two rings, one on each side).
• Remove the Patient Strap Holders (two, one on each side).
• Lay LUCAS on the side of table with nothing blocking the shaft underneath. The round end of spring
should be facing up according to the pictures below.
Turning the Snap
Ring to the open
area and take it
out
Take out Patient
Strap Holders

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
