Stryker LUCAS 3 Service Manual

LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 32 of 91
Update LUCAS 3 sw 3.0 to LUCAS 3 sw 3.1
Setup
Note. First time the USB programming cable is used on the computer (PC), following has to be done:
1. Connect the USB connector to the PC and let the PC install the driver for the USB programming cable

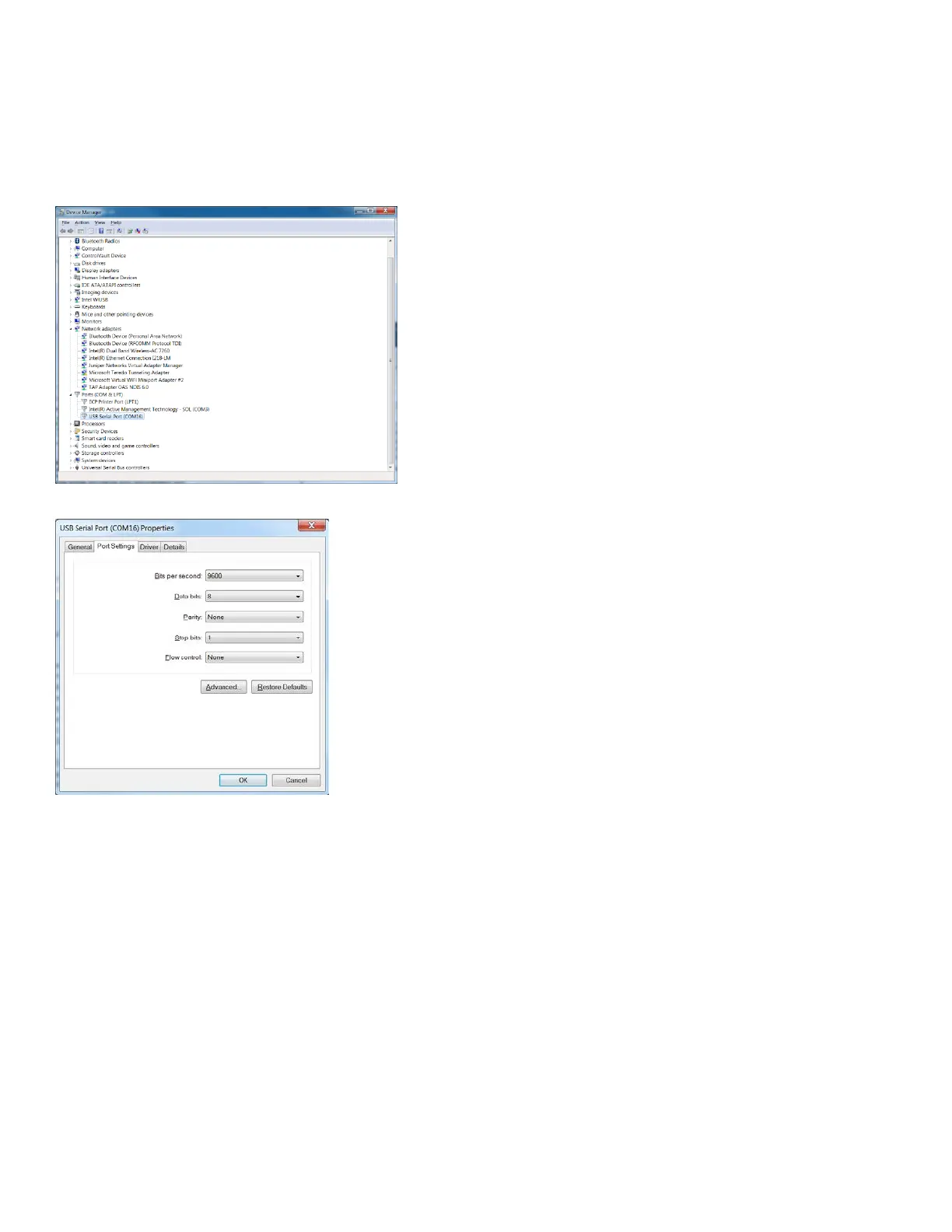

2. Start the Device manager on the PC
3. Expand Ports and select Properties for the used COM Port
4. Select Port Settings.

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
