• Check the function of the torsion spring by folding and unfolding the Support Legs.
• Perform a Function Check according to Function Check
How to Replace the Antenna
1. Disassembling
• Remove the Hood according to instructions in How to Replace the Hood
.
• Cut out two cable ties
• Disconnect the antenna cable connector from Communication Board
• Remove the antenna board from the belt cover
2. Reassembling

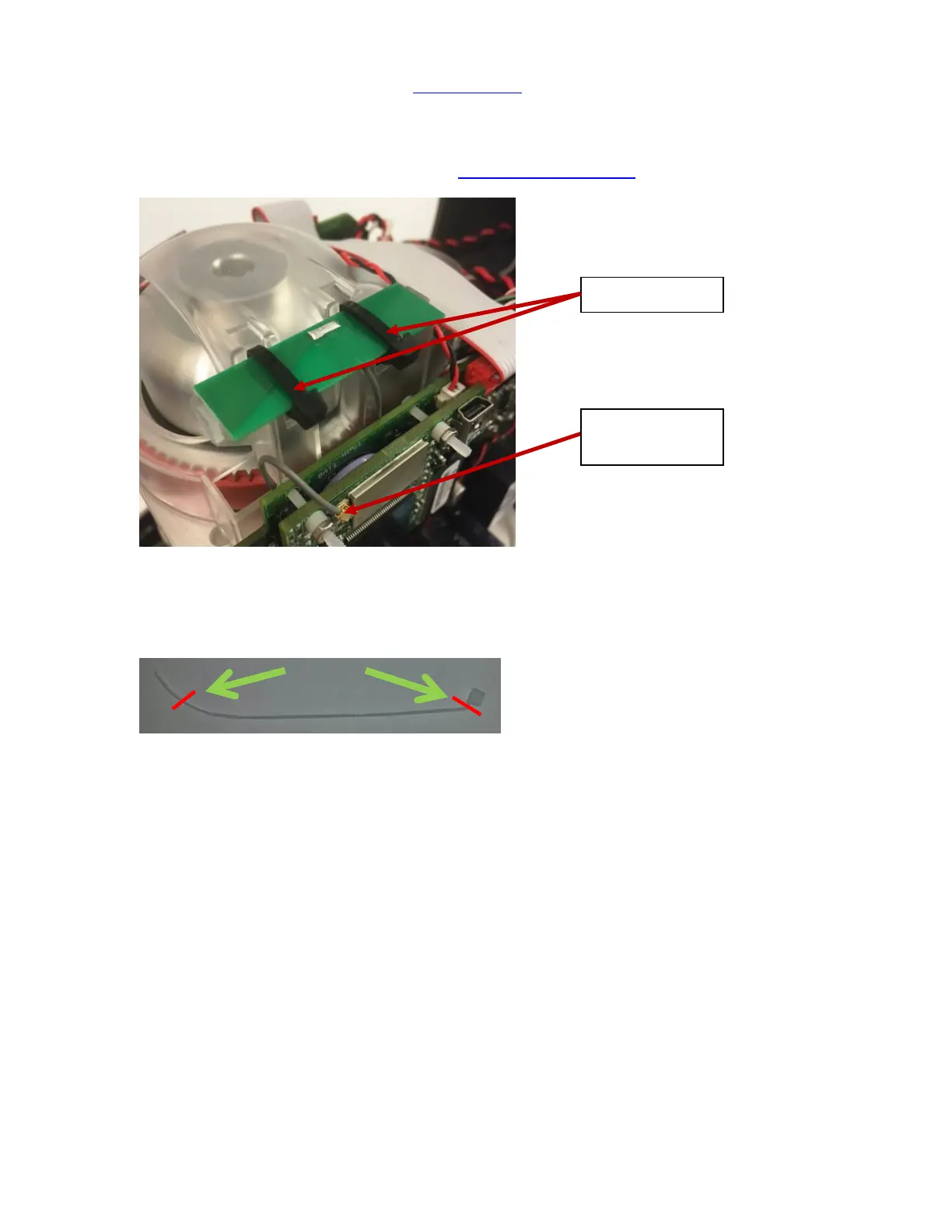

• Pre-bend two cable ties at the bend line marked in red as shown in the picture
• Bend the tip of the cable tie to make it easier go through the hole
• Use a third cable tie (marked with blue arrow in the picture) to guide the cable tie through the holes
Cable Ties
Antenna Cable
Connector

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
