• Remove the Bellows by treading it over the Piston.
2. Reassembling

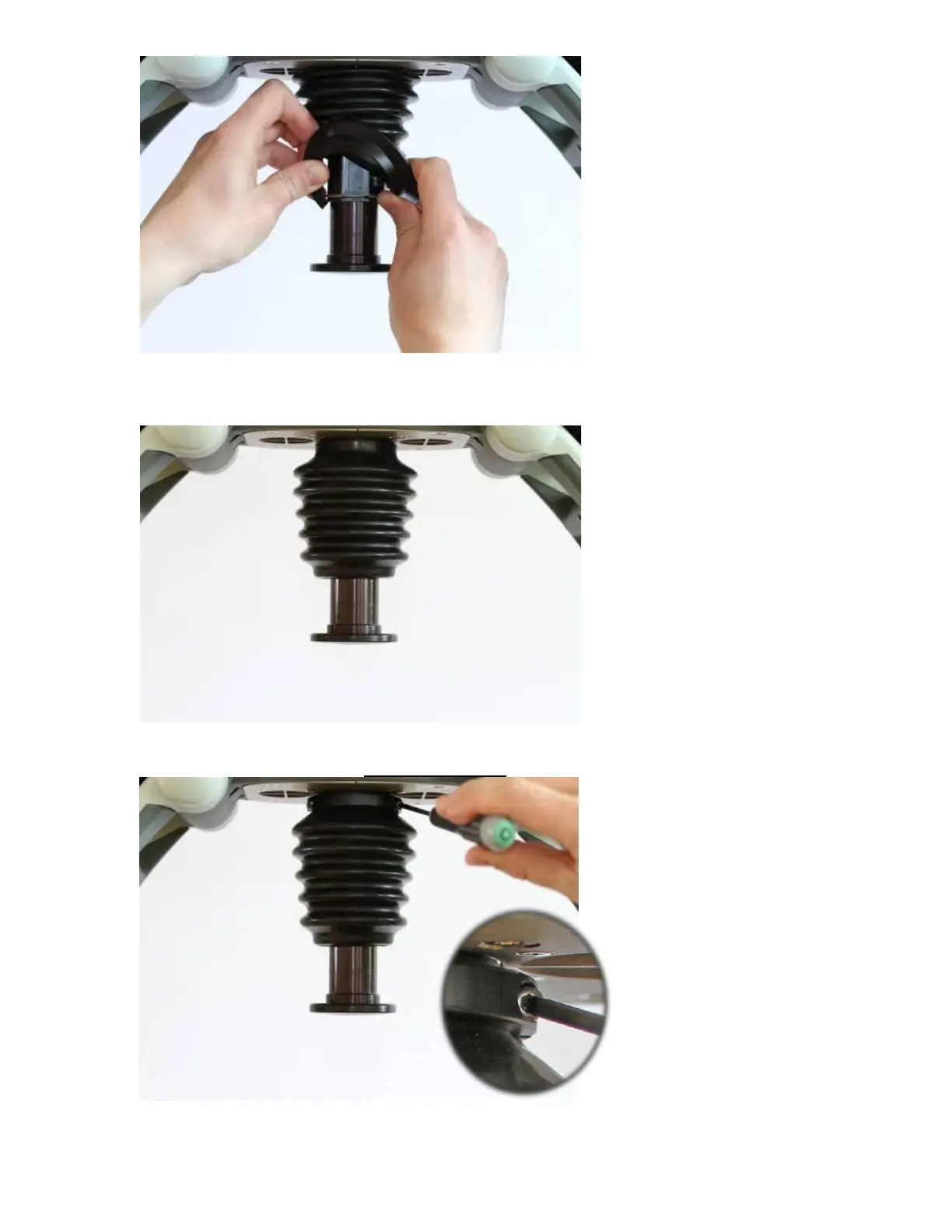

• Carefully thread the Bellows over the piston and position it as far up as possible.
• Place the clamp and fixate the bellows by tightening the two screws to 9.0 in-lbs / 1.0 NM with a Torque
Screwdriver Torx 10 (T10) / or 13.0 in-lbs / 1.5 NM with a Torx 20 (T20) depending on Bellows Clamp.
The clamp should be positioned as far up as possible.

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
