2. Reassembling

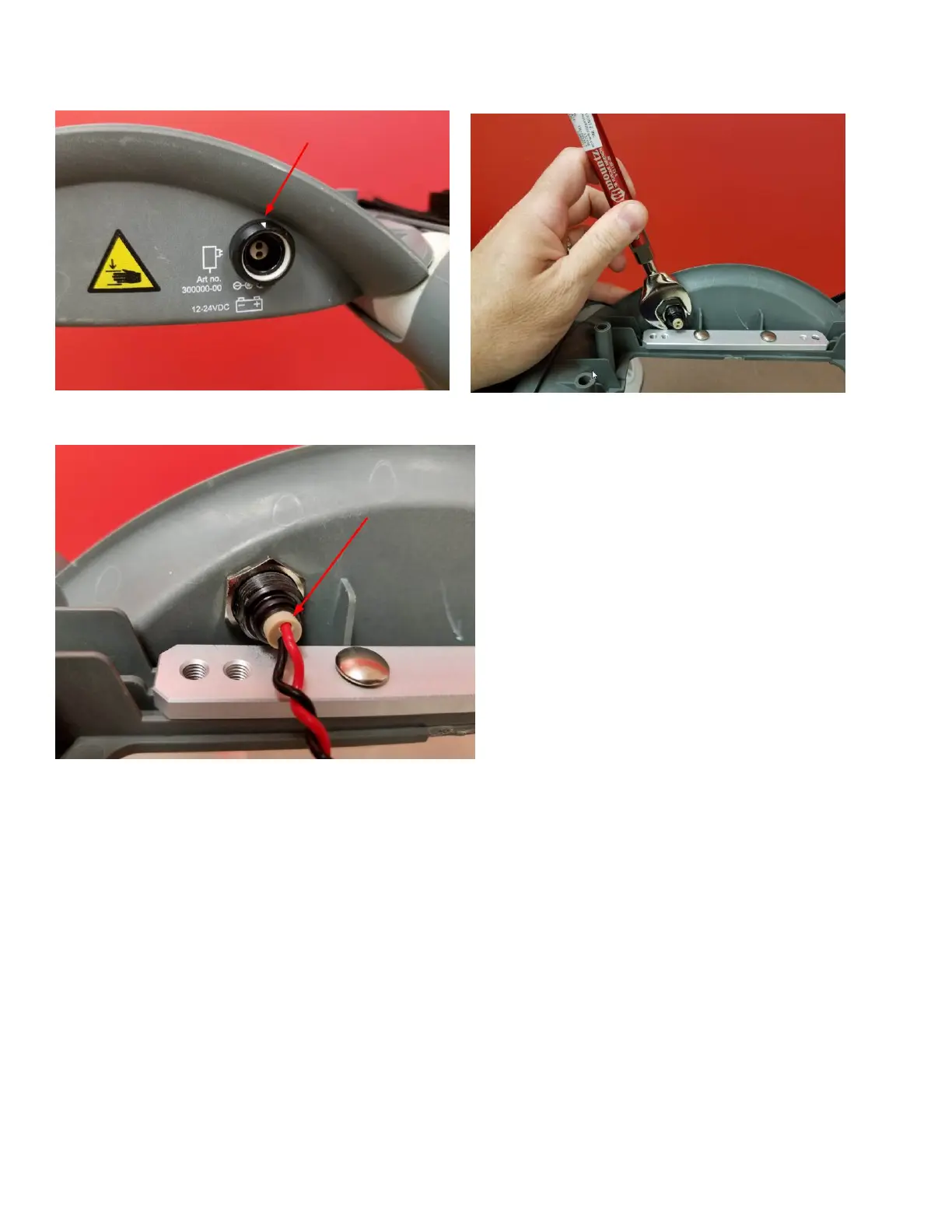

• Install the Power Inlet with the white arrow on top.
• Install the Power Inlet nut and tighten to 9 in-lbs / 1.0 Nm.
• Insert the Power Inlet wires with the red on top.
• Install the Main Body Lid and tighten all four Torx 20 screws to 13 in-lbs / 1.5 Nm
• Re-install the Compression Module, Controller PCB, Protective PCB, and Hood.
3. Test
• Perform a Function Check according to Section Function Check.
