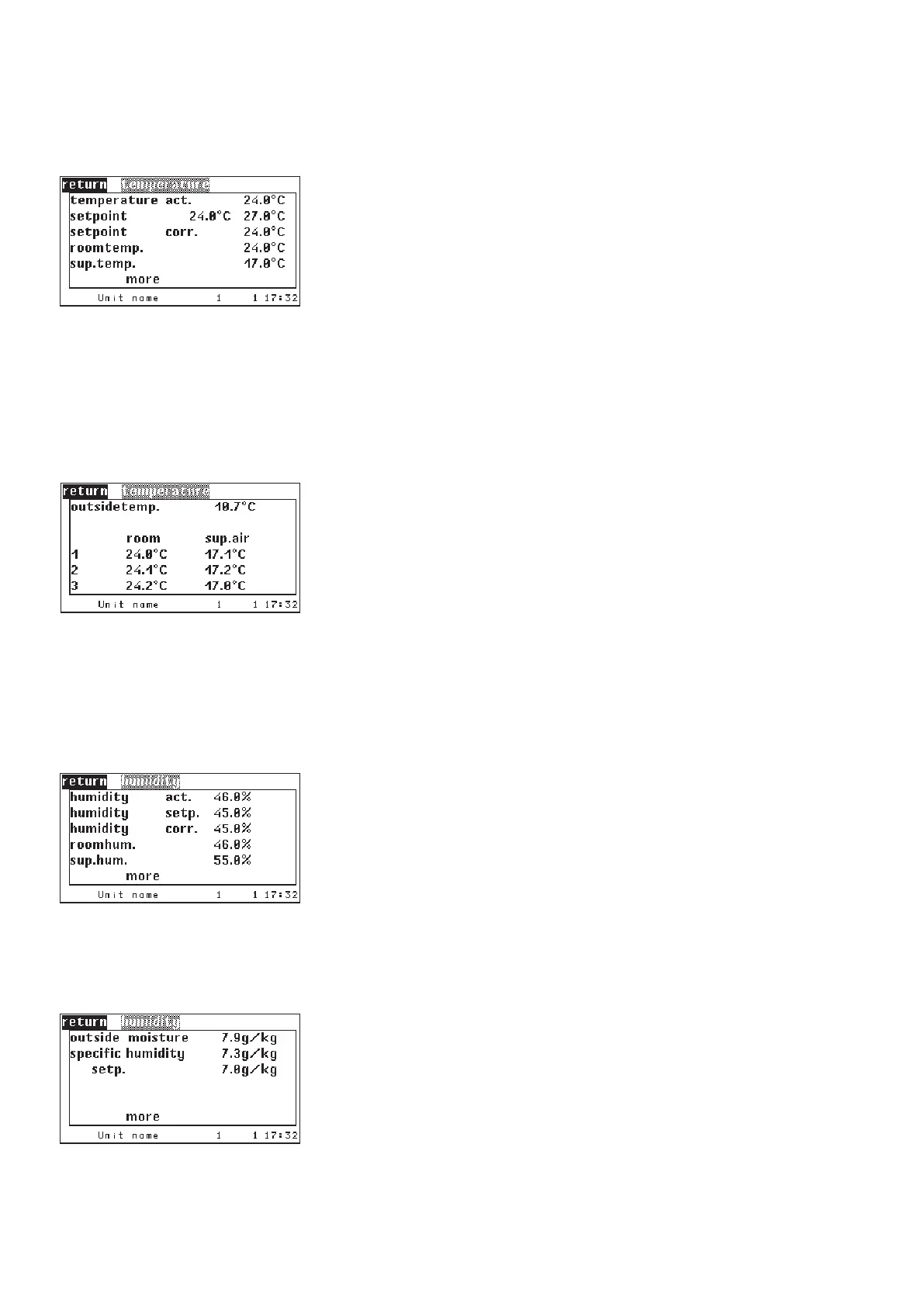

The values of the relative humidity are displayed in this window.
1. The value, which is used for the control. It can also be a zone humidity.
2. Setpoint of the relative humidity
3. Shifted setpoint (caused by external setpoint setting or limitating control)
4. The actual value of the room humidity sensor.
5. The actual value of the supply air humidity sensor (if existant).
1. The actual value of the outside moisture content sensor (if existant).
2. The actual value of the specific humidity.
3. The setpoint of the specific humidity.
Values
Air
This window shows the following temperatures:
1. The value, which is used for the control. It can also be a zone temperature.
These values represent an average value for each parameter, which is calcu-
lated of all sensors of the units which are assigned to the same zone.
2. The adjusted setpoint (setpoint 1/ setpoint 2)
3. The setpoint shifted by the controller, the unit is controlled according to this
parameter only. This value corresponds to the adjusted setpoint in most
cases.
It may be different in the following cases by:
- week program - external setpoint shifting
- emergency operation - limitating control
- integral factor
4. The actual value of the room temperature sensor.
5. The actual value of the supply air temperature sensor.
6. The outside temperature
The following values are only shown for the CyberRow unit series.
Three room air and supply air temperatures each are measured in different
heights where each room/supply air sensor pair is assigned to a different fan.
These values are used for the differential temperature control od the fan.
The average of the 3 room temperatures is displayed in the top menu in line 4,
the average of the 3 supply temperatures in line 5.
