S CLASS™ cutter User’s Manual
Setup 1-3

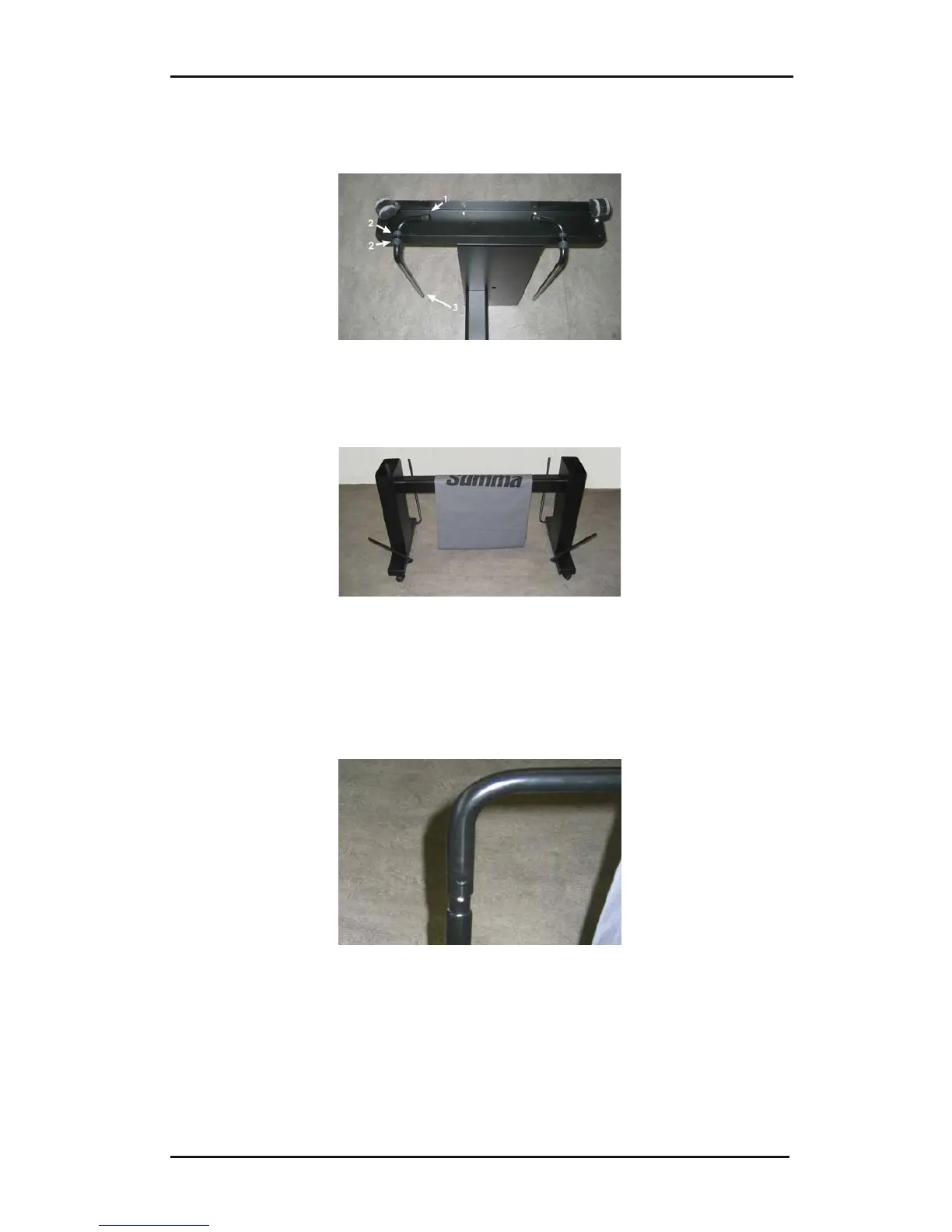

4. Attach on the left and right the 4 tubes for the basket as shown in figure 1-5 below.
On each tube, put the end cap (1) and the two saddle clips (2) to fix the tube in its
place. Position the shorter tube (3) at the rear side (side of the horizontal panel).
FIG 1-5
1-5 MOUNTING BASKET TUBES
5. Turn the stand upright and put the media basket on the horizontal panel as shown
in figure 1-6 below.
FIG 1-6
1-6 PREPARING TO INSTALL THE LINEN BASKET
6. Take one of the large c-shaped tubes and put it through the front hem in the linen
basket. Make sure the holes are oriented right-side up so that the tubes click
securely in place. Then put the tube on the two front tubes that stick out of the
feet. Slide the tubes together, while pressing down on the spring loaded ball
stopper, until the ball locks into place.
FIG 1-7
1-7 ORIENTATION OF THE HOLES IN THE C-SHAPED TUBES
7. Click a saddle clip onto one side of the tube. Insert the other end of the tube
through the middle hem of the linen basket and then into the hole in the leg of the
stand. Then guide the other end of the tube into the hole on the leg and secure
with a saddle clip.
