S CLASS™ cutter User’s Manual
Setup 1-5
1.2 S CLASS™ Cutter Components
1.2.1 The Cutter as viewed from the front

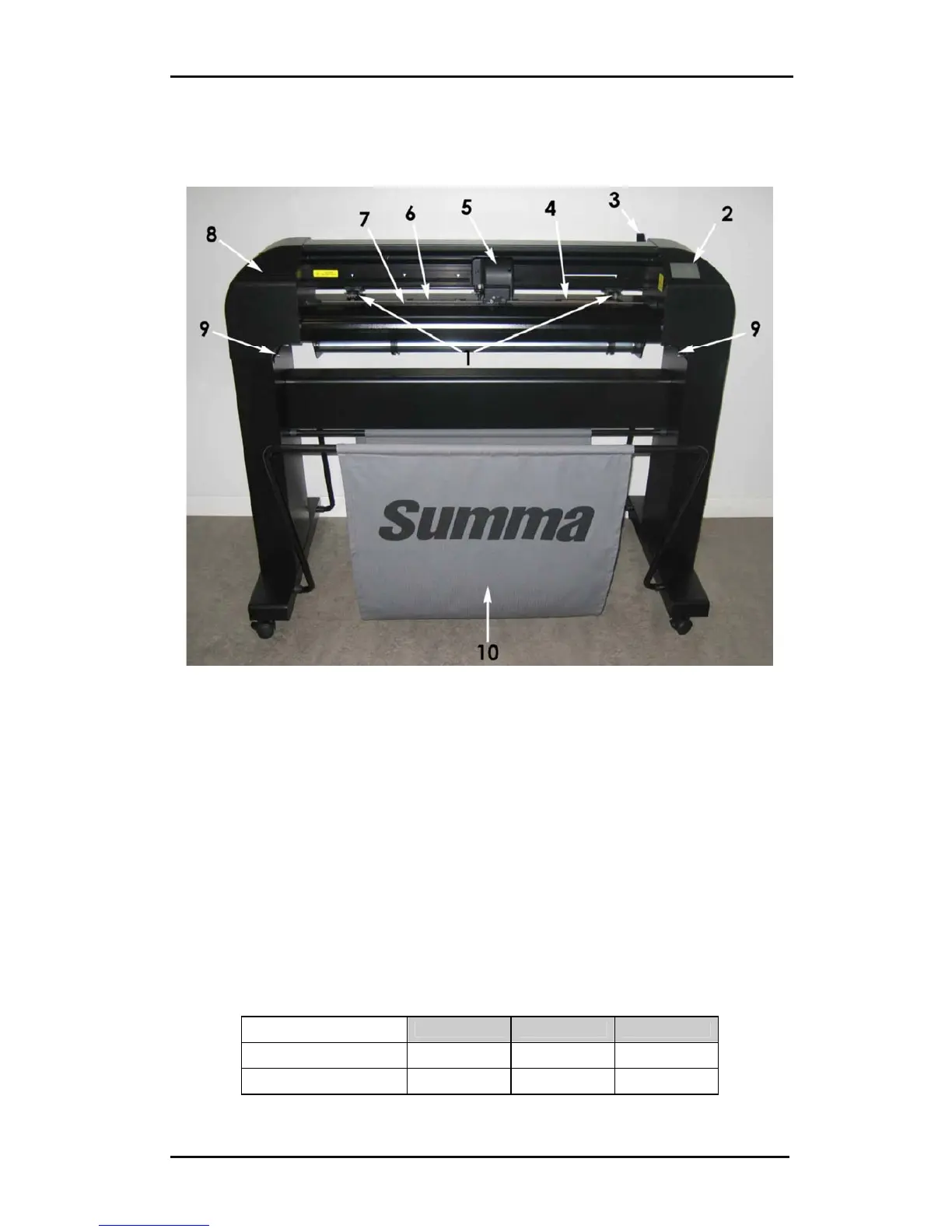

FIG 1-10
1-10 S CLASS™ CUTTER, FRONT VIEW
1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The S120(T) has one and the S160(T) has two extra pinch
rollers to ensure that wide media stays flat in the middle. The outer drive pinch
rollers have a selectable pressure; the extra rollers in the middle can be enabled
or disabled.
2. Touch panel: All cutter activity can be initiated from the 320x240 dot touch panel.
The panel displays information about the cutter’s current status and/or actions that
need to be taken.
3. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
4. Media drive sleeves: The media drive sleeves move the media only when the
pinch rollers are in the “down” position. The following table lists the number of
sleeves installed on each model of the S CLASS™ cutters.
Number of sleeves
S75 (T) S120 (T) S160 (T)
Short sleeve 4 7 9
Long sleeve 1 1 1
