Summa S 75 - Changing Drag Knife Offset; Changing Tool Pressure

S CLASS™ cutter User’s Manual
Basic Operation 2-6

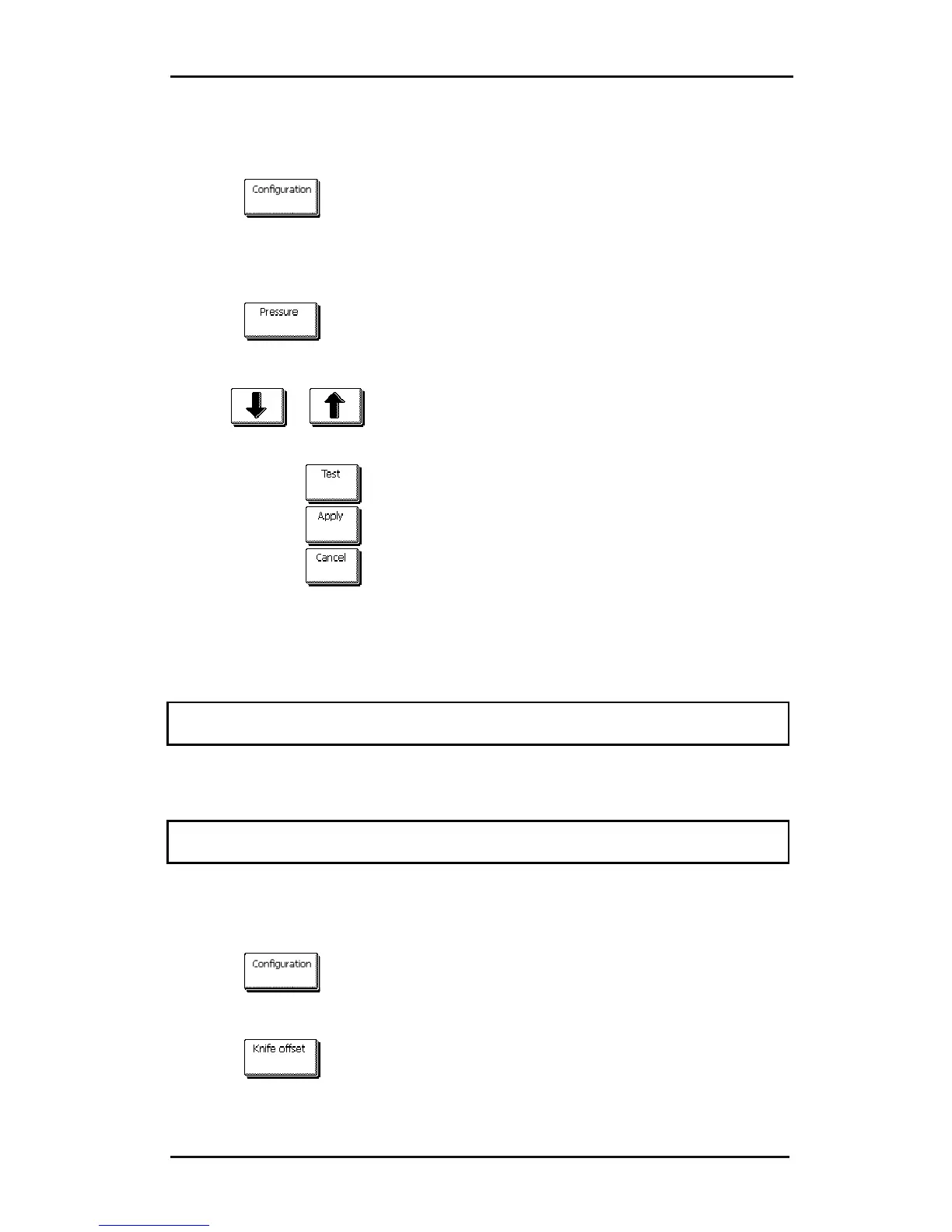

2.2.2 Changing tool pressure
1. Power on the cutter, load media, and mount tool (see section 1).
2. Press
.
The main menu will appear on the screen. Buttons may vary according to the
chosen tool type. However, there will always be a button labeled with the word
‘pressure.’
3. Press
button.
The current tool pressure will appear on screen.
4. Use or to change the pressure.
The new value (in bold) will change.
1. Press to perform the internal tool pressure test (see 1.6.1.1).
2. Press
to confirm and exit the tool pressure menu.
3. Press
to leave the pressure unchanged.
2.2.3 Changing drag knife offset
A very important parameter for a drag knife is the offset. The offset is the distance
between the knife center and the knife tip.
NOTE: Knife offset should be set each time the knife is changed and should be
checked if the knife shows signs of wear.
Typical knife offset for Summa knives is between 0.41 and 0.45 for standard knives,
and between 0.9 and 0.97 for sandblast knives.
NOTE: Sandblast knives should be used when the material that needs to be cut is
thicker than 0.25mm.
Changing knife offset:
1. Power on the cutter, load media, and mount drag knife (see section 1).
2. Press
.
The main menu will appear on the screen.
3. Press
.
The current knife offset will appear on screen.
