Contour Cutting 3-3
3.2.2 Media calibration
Media calibration ensures that the sensor is able to recognize the markers. OPOS is
calibrated at the factory to work on a wide range of media. However, certain media --
such as those with a high gloss -- may not work with the default settings. Before
working with such materials, perform a media calibration test. This test will alter
OPOS’s sensitivity so that it will read the markers with greater reliability.
Print a square measuring at least 4x4cm on the media that will be used. Be sure to
use the same ink that will be used when creating the registration markers.
Doing media calibration:

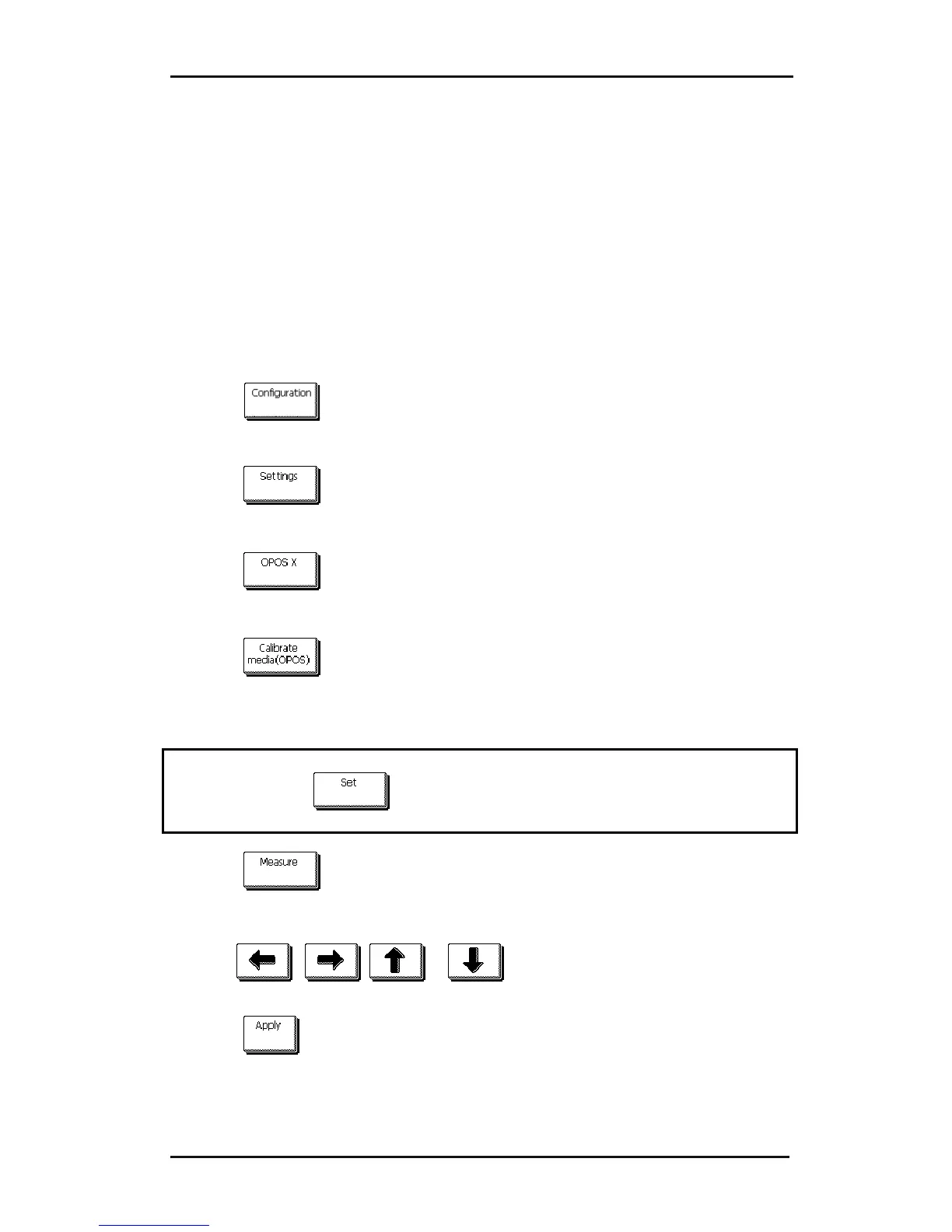

1. Turn on the cutter and load the vinyl with the printed square.
2. Press
.
The main menu will appear on screen.
3. Press
.
The configuration menus will appear on screen.
4. Press
.
The different OPOS configuration menus will appear on screen.
5. Press
.
The cutter allows the user to choose to either measure the media or to fill in a
previously recorded value.
NOTE: If a combination of media color – marker color has already been calibrated
and recorded, then can be used to enter this value directly, without having
to remeasure it.
6. Press
.
The cutter will lower the sensor. On the display, the message ”put knife on white
area” will appear.
7. Use
, , or to maneuver the knife on top of a white
area (the area should be at least 3 by 3 cm or 1” by 1”).
8. Press
to confirm.
