S CLASS™ cutter User’s Manual
Maintenance 5-2

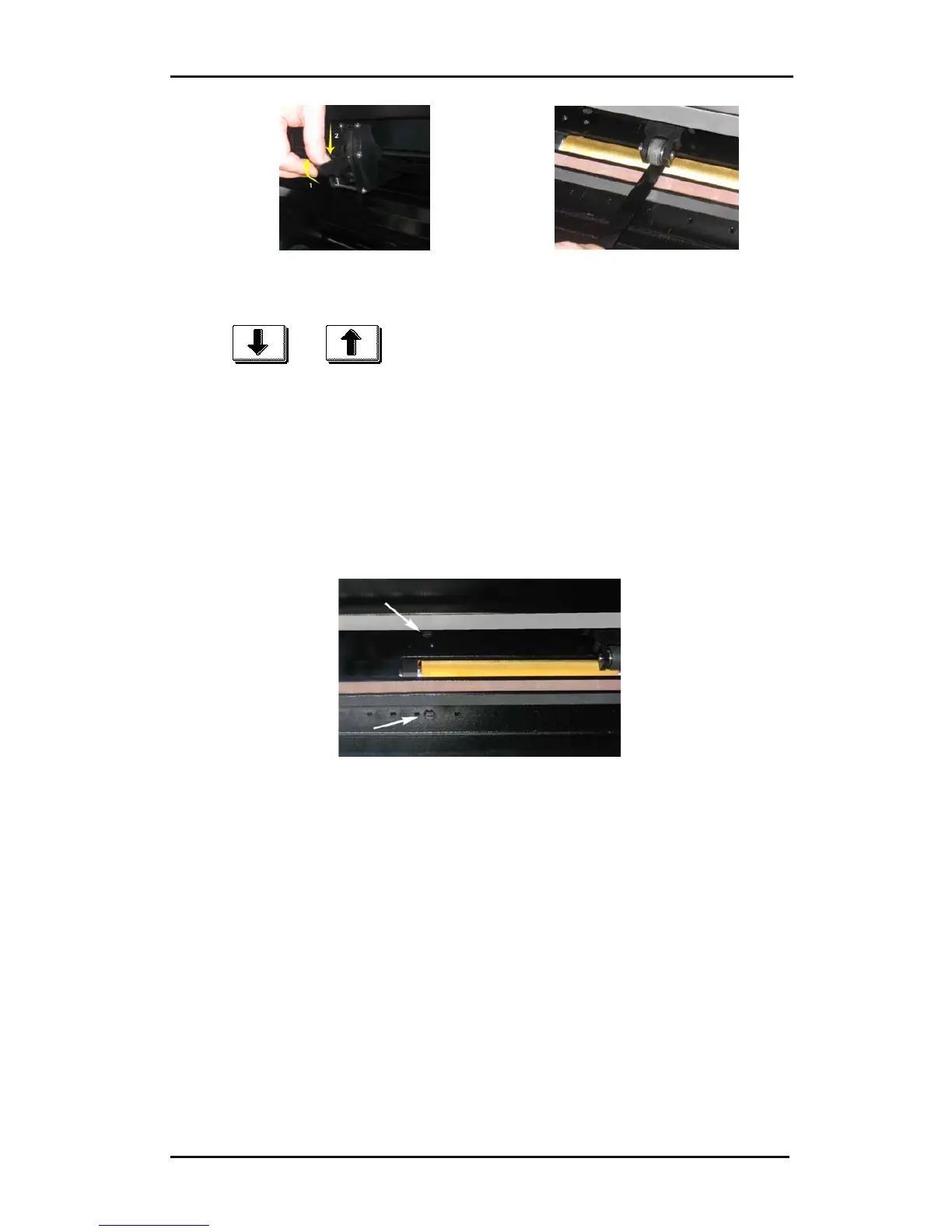

FIG 5-1
5-1 LIFTING THE PINCH ROLLER
FIG 5-2
5-2 PLACEMENT OF VINYL STRIP
8. Use
and to move the piece of vinyl back and forth several times
until all residue is removed from the drive sleeves.
9. Repeat for the other drive sleeves.
5.1.2 Cleaning the media sensors
Over time, the media sensors may become dirty with accumulated residue from the
media. This may cause the cutter to malfunction.
Clean the media sensors by wiping them out with cotton swabs.
FIG 5-3
5-3 MEDIA SENSORS S CLASS™ CUTTERS
