Summa S 75 - The Cutter as Viewed from the Back; S CLASS Cutter, Rear View

S CLASS™ cutter User’s Manual
Setup 1-7
1.2.2 The Cutter as viewed from the back

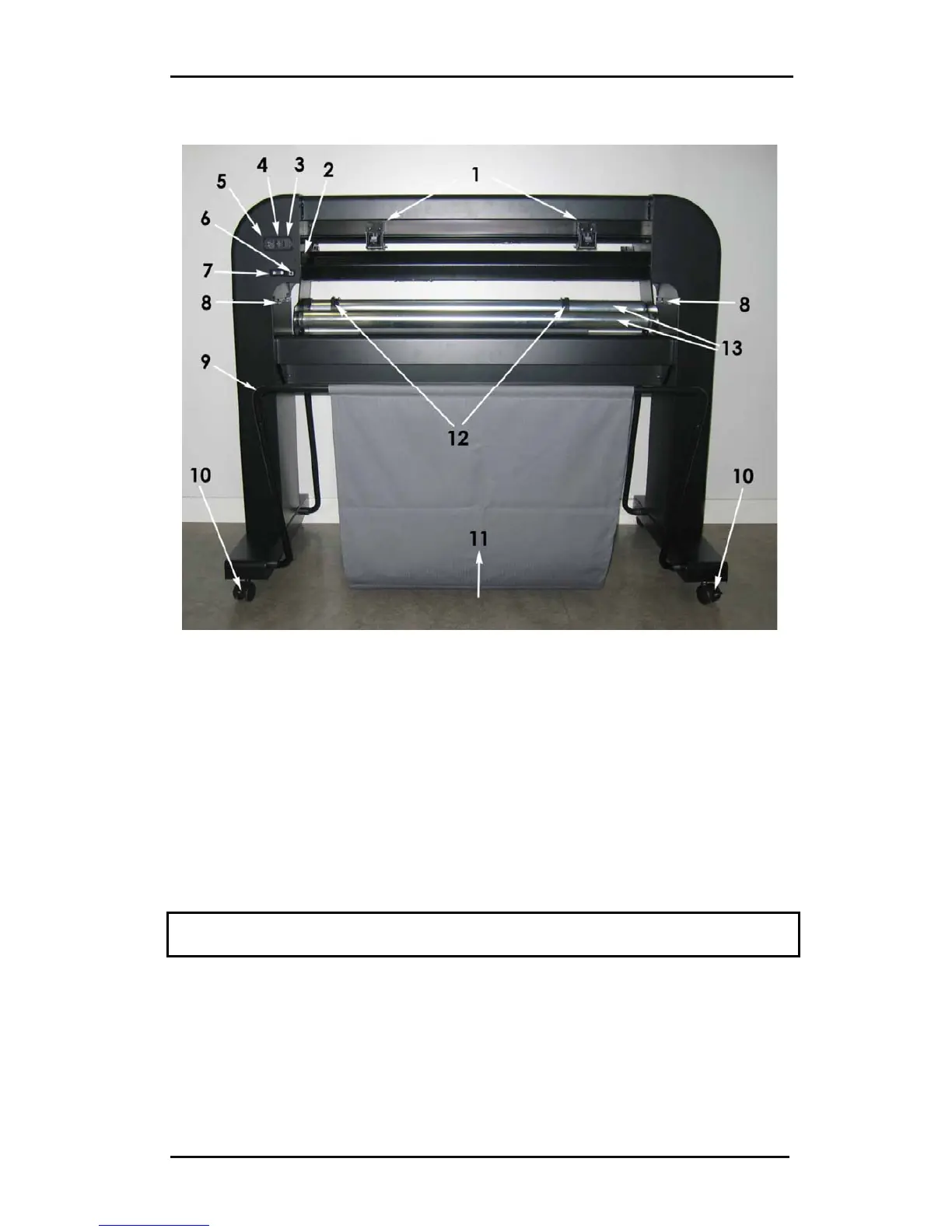

FIG 1-11
1-11 S CLASS™ CUTTER, REAR VIEW
1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The S120(T) has one and the S160(T) has two extra pinch
rollers to ensure that wide media stays flat in the middle. The outer drive pinch
rollers have a selectable pressure; the extra rollers in the middle can be enabled
or disabled. Do not move the pinch roller assemblies while holding them from this
side only.
2. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
3. The fuse box: The fuse is located at the right side of the power entry module.
Check the specification section to see which fuse is used in the S CLASS™ cutter.
CAUTION: For continued protection against risk of fire, replace only with the same type
and rating of fuse.
4. Power On/Off switch: This rocker switch, in the middle of the power entry
module, sets the cutter’s power to ON or OFF. To switch on the power, press the
“I” side of the rocker switch. To switch off the power, press the “O” side of the
rocker switch.
