Summa S 75 - Possible Knife Calibrations

S CLASS™ cutter User’s Manual
Basic Operation 2-8

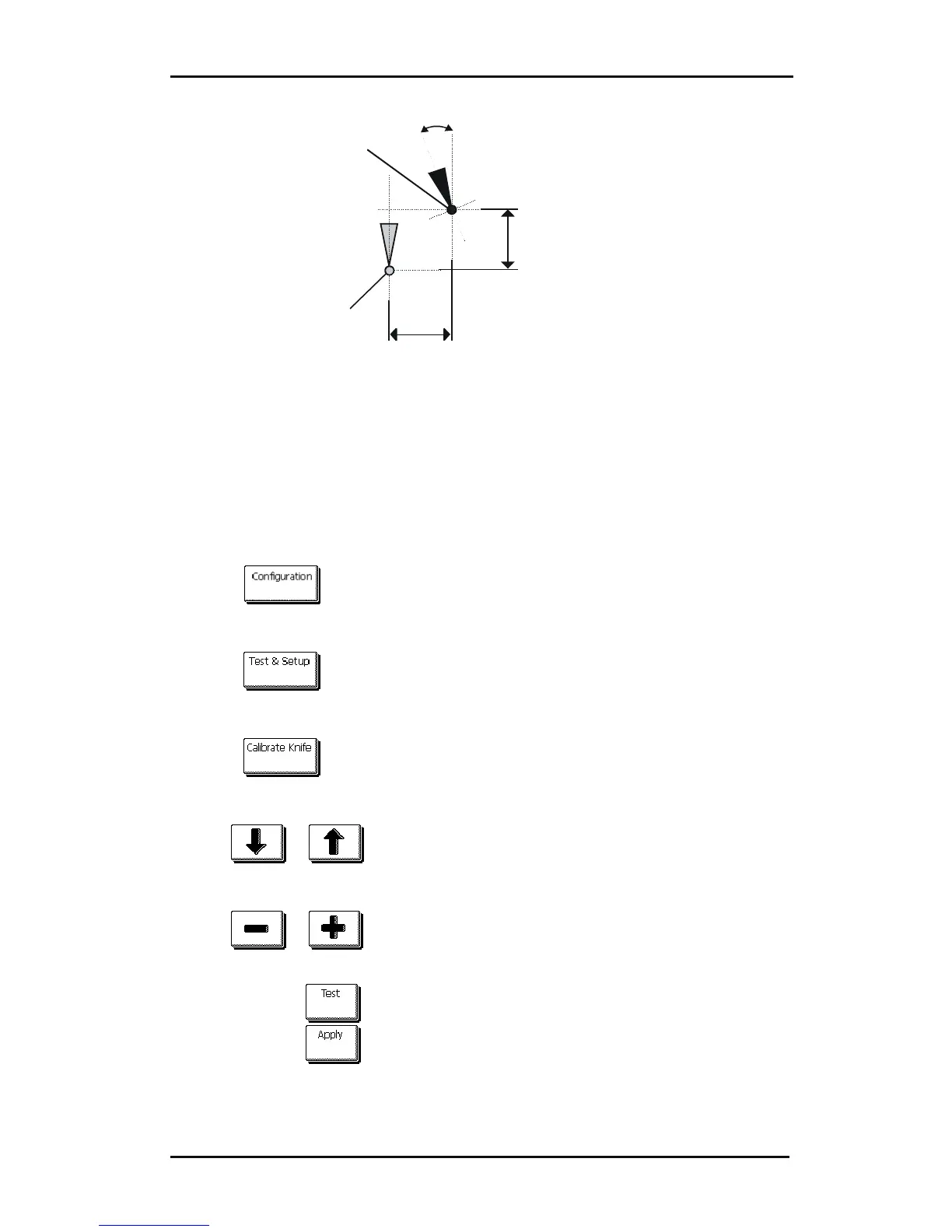

LONGITUDINAL deviation
LATERAL deviation
Theoretical center
of the knife
ORIGIN deviation
Real center
of the knife
FIG 2-4
2-4 POSSIBLE KNIFE CALIBRATIONS
During the knife calibration routine, the cutter will cut a series of test patterns that
allow the user to identify errors in knife rotation and concentricity. Use the touch
screen to make corrections.
Setting tangential knife parameters:
1. Power on the cutter, load media, and mount tangential knife (see section 1).
2. Press
.
The main menu will appear on the screen.
3. Press
.
The main test will appear on screen.
4. Press
.
The three knife parameters will appear on screen.
5. Use
or to select the parameter to be changed.
The selected parameter will be highlighted on the touch screen.
6. Use
or to change the parameter.
The value (inverse) will change.
1. Press
to perform the internal knife calibration test.
2. Press
to confirm and exit the knife calibration menu.
