SWDE200B Operation & Maintenance Manual

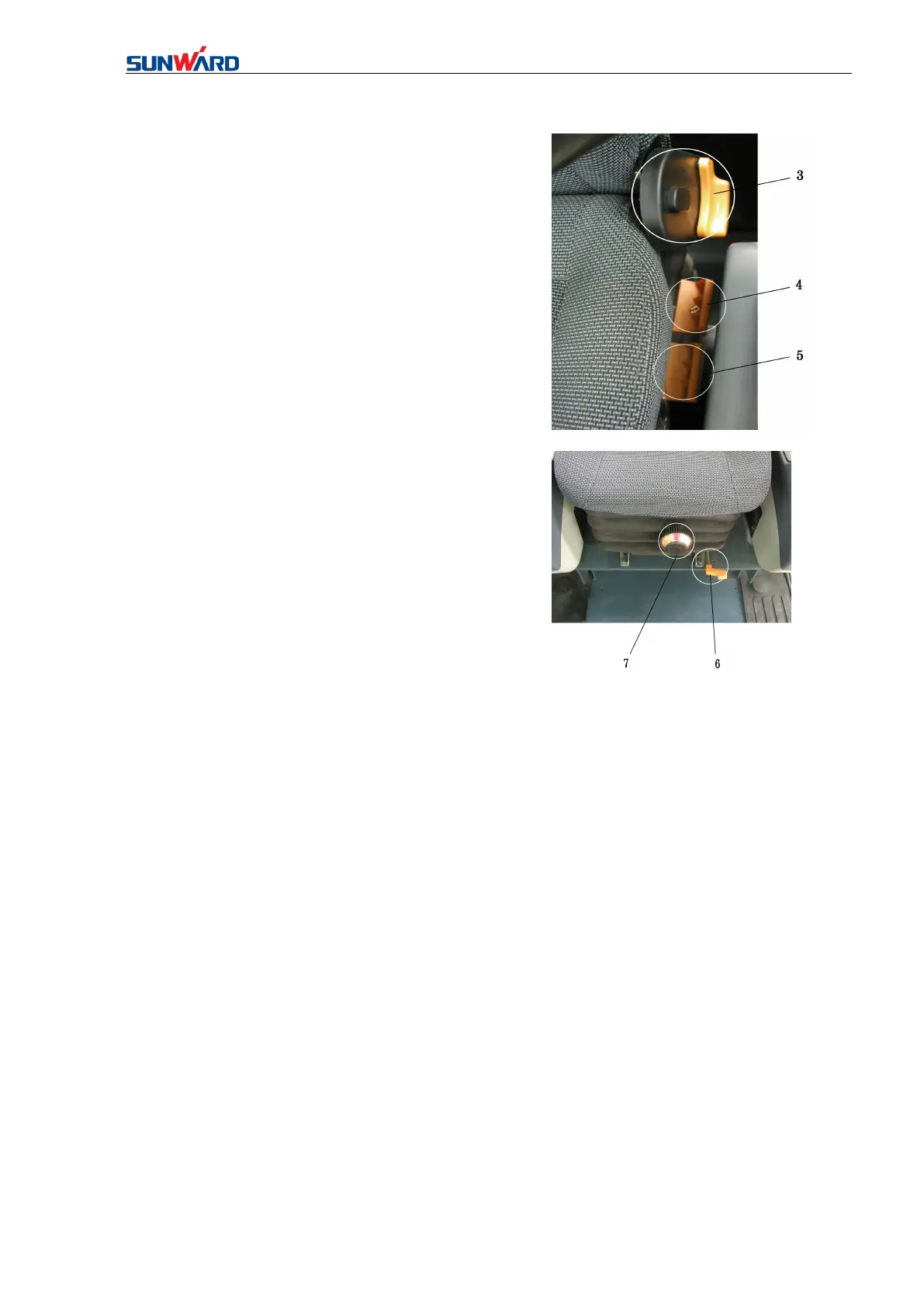

2. Pull handle 3 to adjust the angle of the
backrest 1 to make the operator feel more
comfortable
3. Pull handle 4 to realize right inclining of
the seat board 2.
4. Pull handle 5 to realize front inclining of
the seat board 2.
5. Turn button 7 to adjust the shock
absorbing ability of the seat.
6. Pull rod 6 to realize position adjusting
from front to back
1. Backrest 2. Seat Board 3. Adjusting
Handle for Backrest Angle
4. Adjusting Handle for right inclining of seat
board.
5. Adjusting Handle for front inclining of seat
board
6. Pulling Rod for seat adjusting between front and back.
7. Shock Absorbing Ability Adjusting Button
