SWDE200B Operation & Maintenance Manual
5. TRAVEL
5.1 TRAVELLING OPERATION
1. Set the “Travel/Rock Drilling Changeover Switch” to the travel position;
2. Push the pilot lever to travel the drilling rig (the operation should be gently to avoid the violent
action of the machine, such as steering)
3. High-speed mode can be used when travelling on level ground. Change the “Travel/Rock Drilling”
changeover switch to “High –speed Travelling” when parking or stopping.
Note ： Before travelling, drill frame
should be lifted above the ground at
least 0.5m. If the ground is not flat, the
lifting height should be over than 1m;
besides, surrounded equipment and
people should be observed to prevent
safety accidents; Watch the high
pressure lines overhead and adjust the
feeding height in time; always follow
the traffic rules to ensure safety.
Turning should be avoided as
possible as it could be while reversing to
protect the travel mechanism.

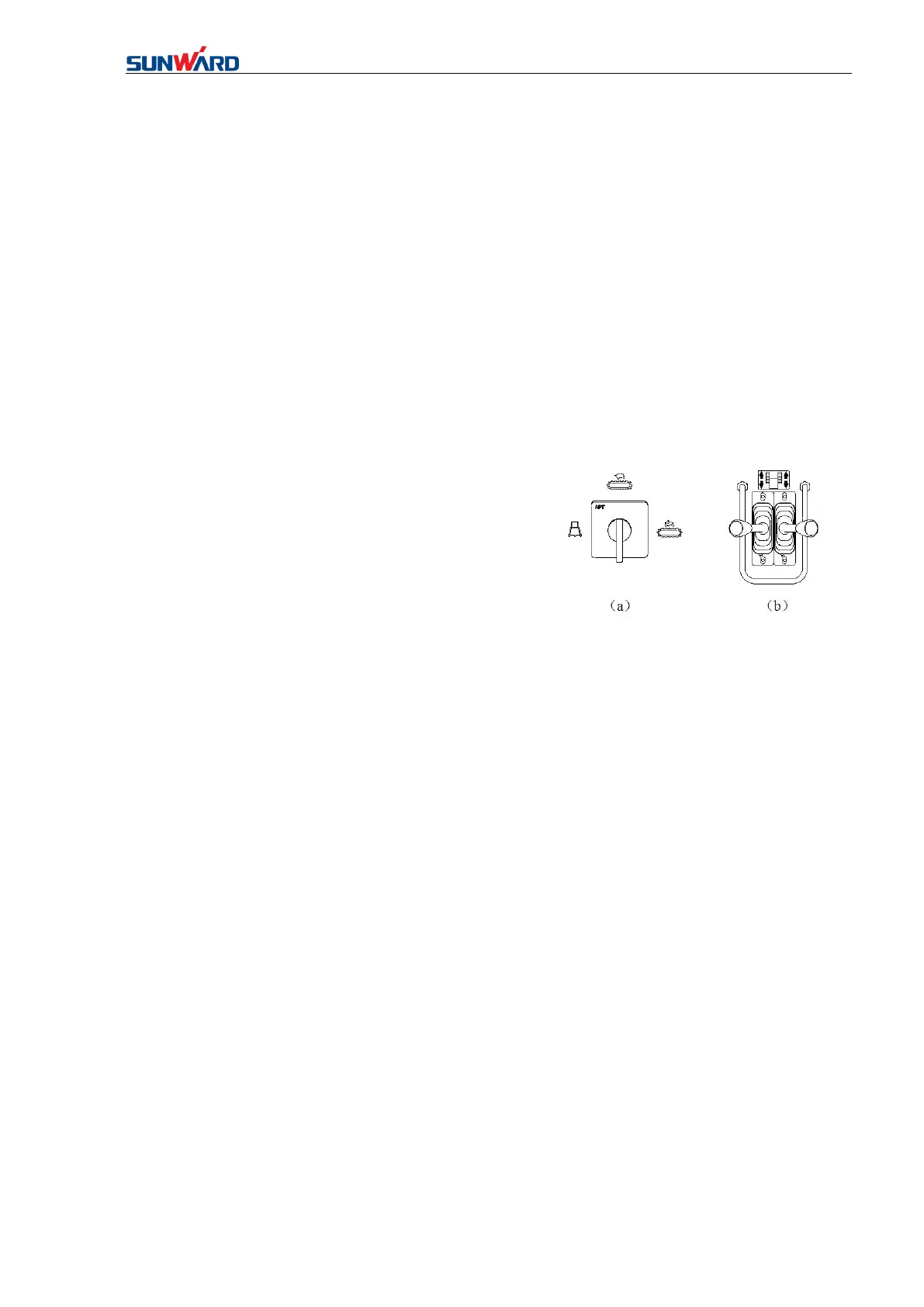

FIG. 5.1 Travel Selector Switch
