SWDE200B Operation & Maintenance Manual

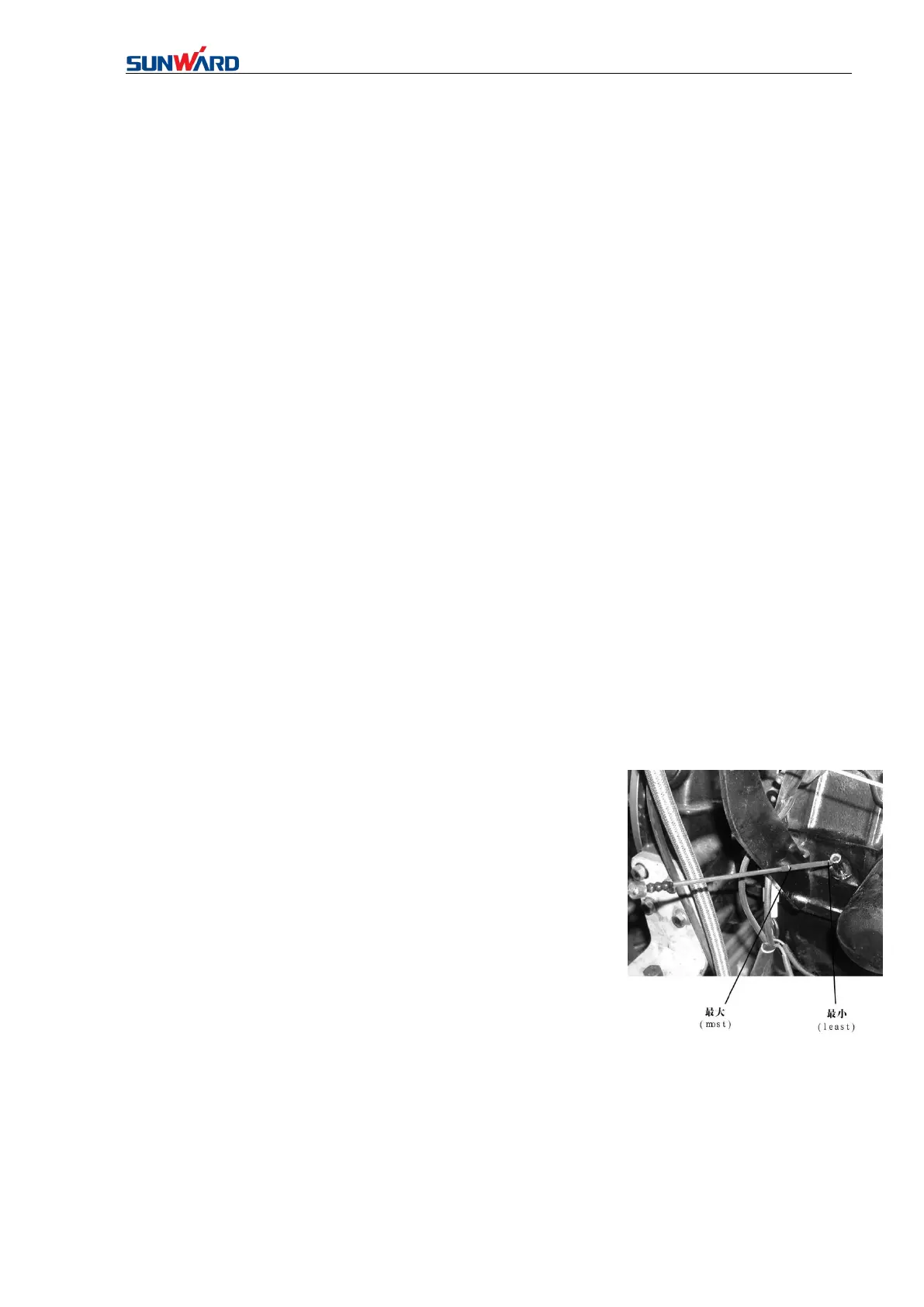

4.1.8 Oil Level of Hydraulic Oil Tank
【IMPORTANT】
Please pay attention to the following items
when filling oil:
1. Park the machine at level road and retract
the oil cylinder fully. The oil surface should
be under the top observing hole of the oil
level gauge.
2. Park the machine at level land, the oil surface should be above the under observing hole when
extending the cylinder fully. (As picture Min)
3. The filling oil quality should be chosen according to lubrication material list.
4. Filling oil should transit through oil return
filter. Please do standard maintaining every
day.\
4.1.9 Lubrication
Lubricate the specified places according to the table of maintenance.
4.1.10 Protection Device
Check the cover plate and baffle.
4.1.11 Safety
Keep people away from the drilling rig and clean off obstacle.
