SWDE200B Operation & Maintenance Manual
3. Turn the key to OFF position to shut the engine, then, take off the key from the switch.
4. Switch off the pilot controlled valve.

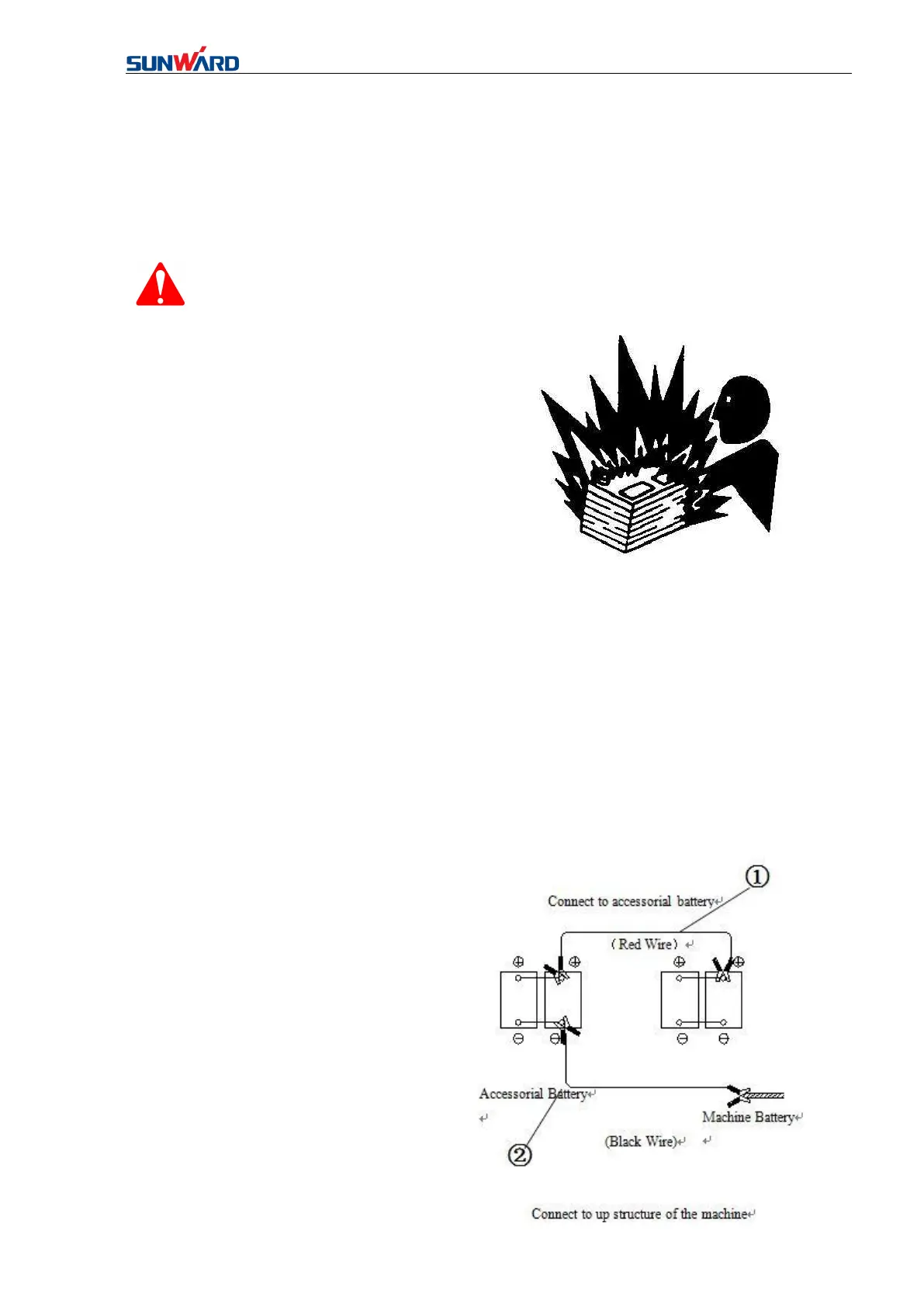

4.3 Using Auxiliary Battery
ATTENTION
1. Please keep the battery away from flame
or any sparkle since explosive air would be
produced during charge or usage. Charge the
battery in well-ventilated area and place it on
dry hard or concrete ground instead of steel
plate. If placing battery on steel plate,
sparkles may be produced. Never connect
the anode pole with cathode pole as it would
result in short circuit.
2. Operator should sit on the seat to control the machine when starting the engine. For straddle
starting, it is a kind of operating by two persons simultaneously.
【IMPORTANT】
The electrical system of the machine is 24 voltage, cathode connected with ground. And it is
only available for 24 voltage accessorial battery.
When the battery is used up, start the engine with accessorial battery as the following steps
1. Connect accessorial battery
a. Stop the engine equipped with accessorial
battery.
b. Connect one end of the red wire ① with
anode pole （ + ） of the machine battery.
Connect the other end with anode pole （+）
of accessorial battery.
c. Connect one end of the black wire ② to
cathode pole （ - ） of accessorial battery.
Connect the other end of the black wire ②
to machine structure frame as ground wire.
To Next Page
