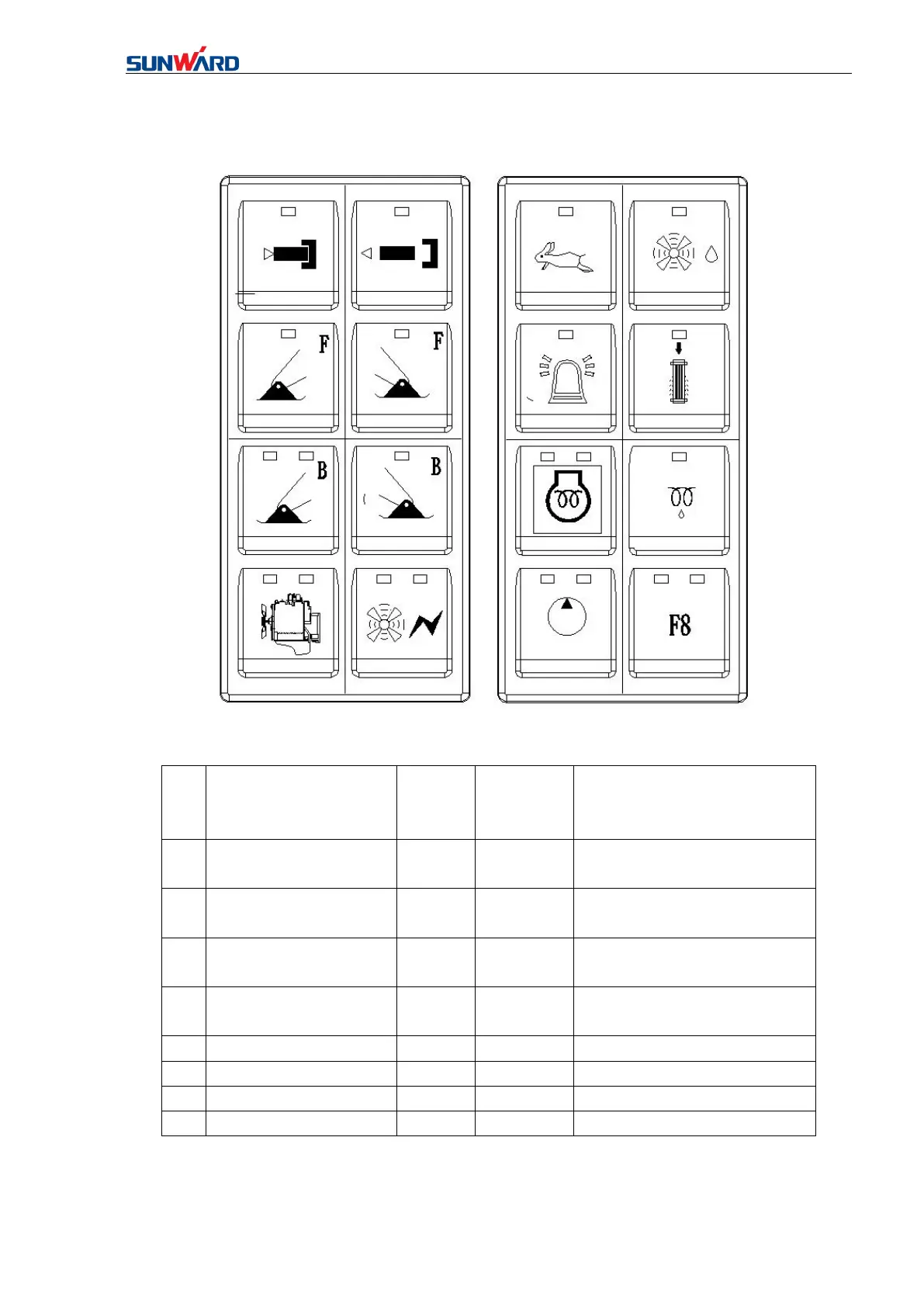

2.9 BUS PANEL
No.
Part
Button
Code
Indicator
Light
Status
Remark
1
Swing Rod Limit
Extend
E1
Green
Drilling Frame Type
2
Swing Rod Limit
Retract
E2
Green
Drilling Frame Type
3
Left Front Outrigger
E3
Green
Drilling Frame Type /Boom
Type
4
Right Front Outrigger
E4
Green
Drilling Frame Type /Boom
Type
5
Left Rear Outrigger
E5
Yellow
Drilling Frame Type
6
Right Rear Outrigger
E6
Yellow
Drilling Frame Type
7
Diesel Engine Mode
E7
Green
Diesel Electric Integrated
8
Transformer Cooling
E8
Green
Diesel Electric Integrated
