2.4 MAIN OPERATING INTERFACE
1 2 3 4 5
1. Failure code warning 2. Inclination display
3. General parameters display 4. Air compressor parameters display
5. Host parameters display

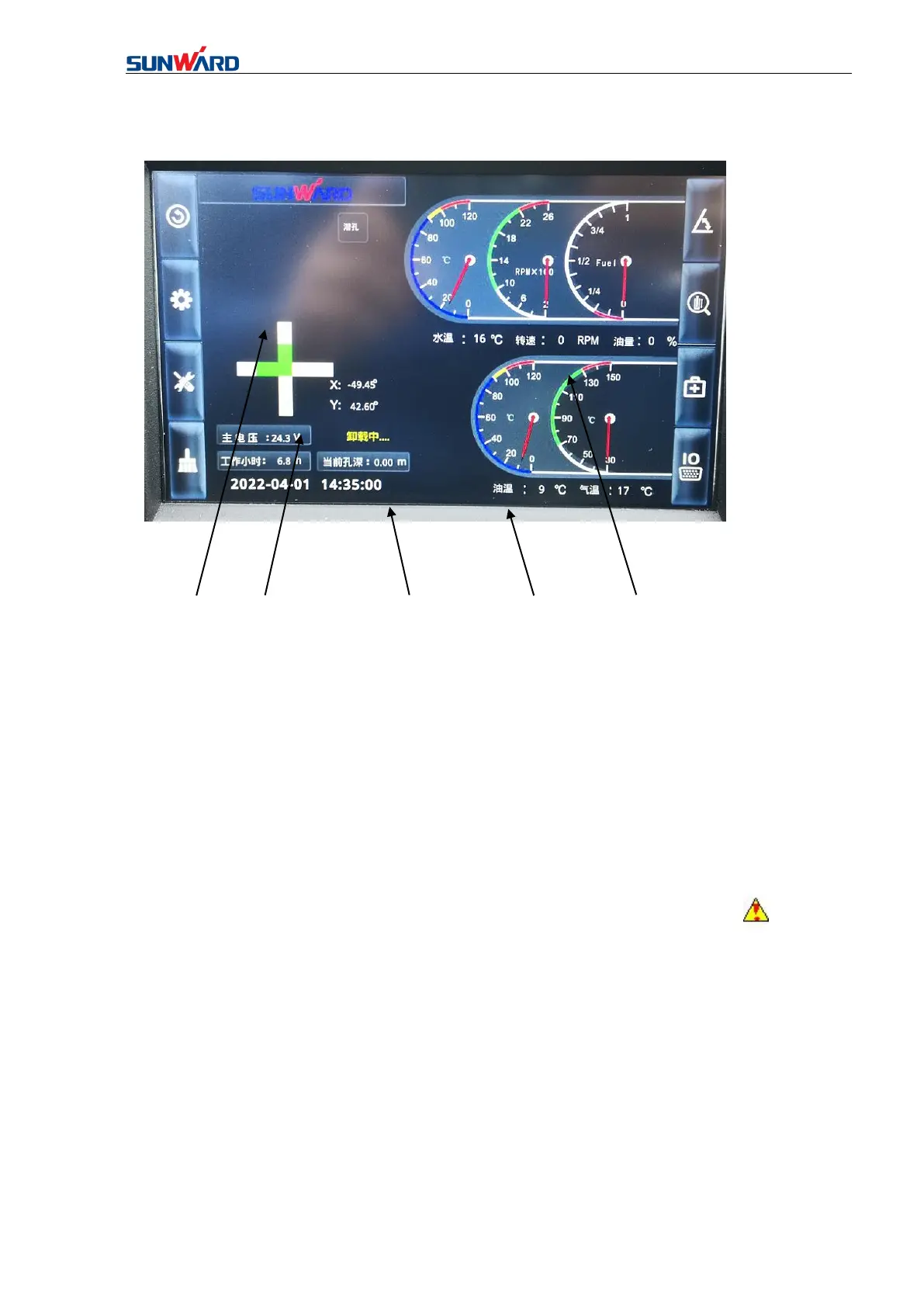

Figure 3.2 Main Operating Interface
The main operation interface shows all the “fault alarm code” “inclination of drill
hole” “the operation parameters of the main engine” “the drilling depth” “the running
parameters of the air compressor”.
Icon 1 “fault code alarm” is the fault code alarm area. The alarm icon will flash
when a sensor of the machine fails or exceeds normal working range, prompting the operator to
inspect it. When the alarm appears, click icon F7“fault alarm code” on the main operating
interface to enter monitoring interface to check the detailed alarm. Then handle the alarm
situation, such as “engine oil pressure sensor alarm”, the operator will check the engine
lubrication system, troubleshooting.
Icon 2“inclination display” is the inclination display area of drill pipe. By installing the
inclination sensor on the drill rack, the current drilling pipe inclination data is displayed in
real-time in the interface after the sensor data conversion calculation.
