191

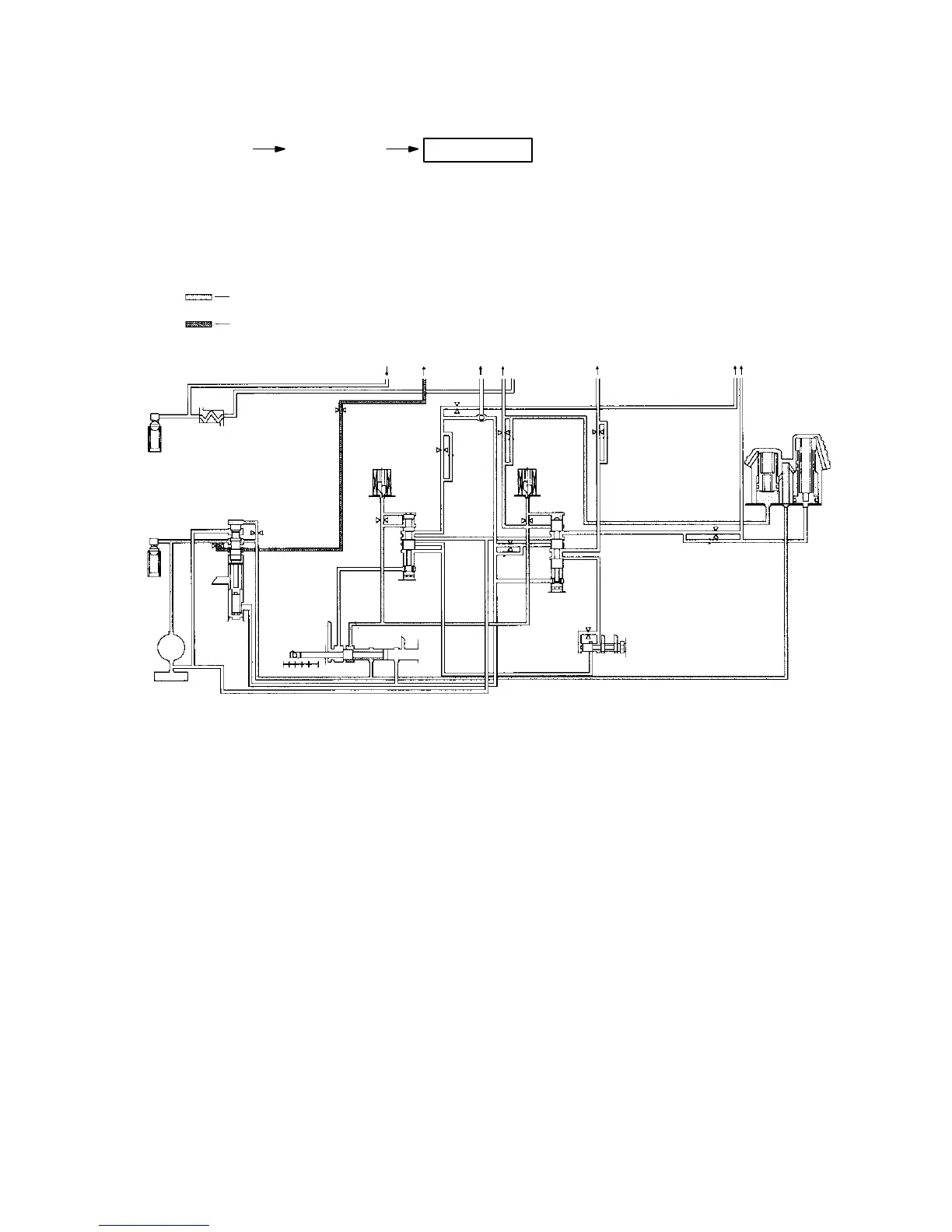

1ST GEAR (D, 2 RANGE)
Line Pressure
Pressure regulator valve manual valve forward clutch
Since solenoid valve No. 1 is ON, the 2–3 shift valve is not operated, the line pressure is halted at the 2–3 shift valve.
Shift solenoid valve No. 2 is OFF, the 1–2 shift valve is operated, and the line pressure operates only on the forward
clutch.
LINE PRESSURE
TORQUE CONVERTER PRESSURE
TORQUE
CONVERTER
DIRECT
CLUTCH
FORWARD
CLUTCH
INTERNAL
LUBRICATION
FIRST REVERSE
BRAKE
SECOND BRAKE SERVO
RELEASE SIDE TIGHTENING SIDE
NO.1
NO.2
ACCUMULATOR
COOLER BYPASS
VALVE
OIL COOLER
SOLENOID NO. 1
SOLENOID
NO. 2
PRESSURE
RELEASE VALVE
OIL PUMP
PRESSURE
REGULA-
TOR
VALVE
L2DNR P
MANUAL
VALVE
2–3 SHIFT
VALVE
1–2 SHIFT
VALVE
LOCOST MODULATOR VALVE
