9. Final Drive Mechanism
9-6

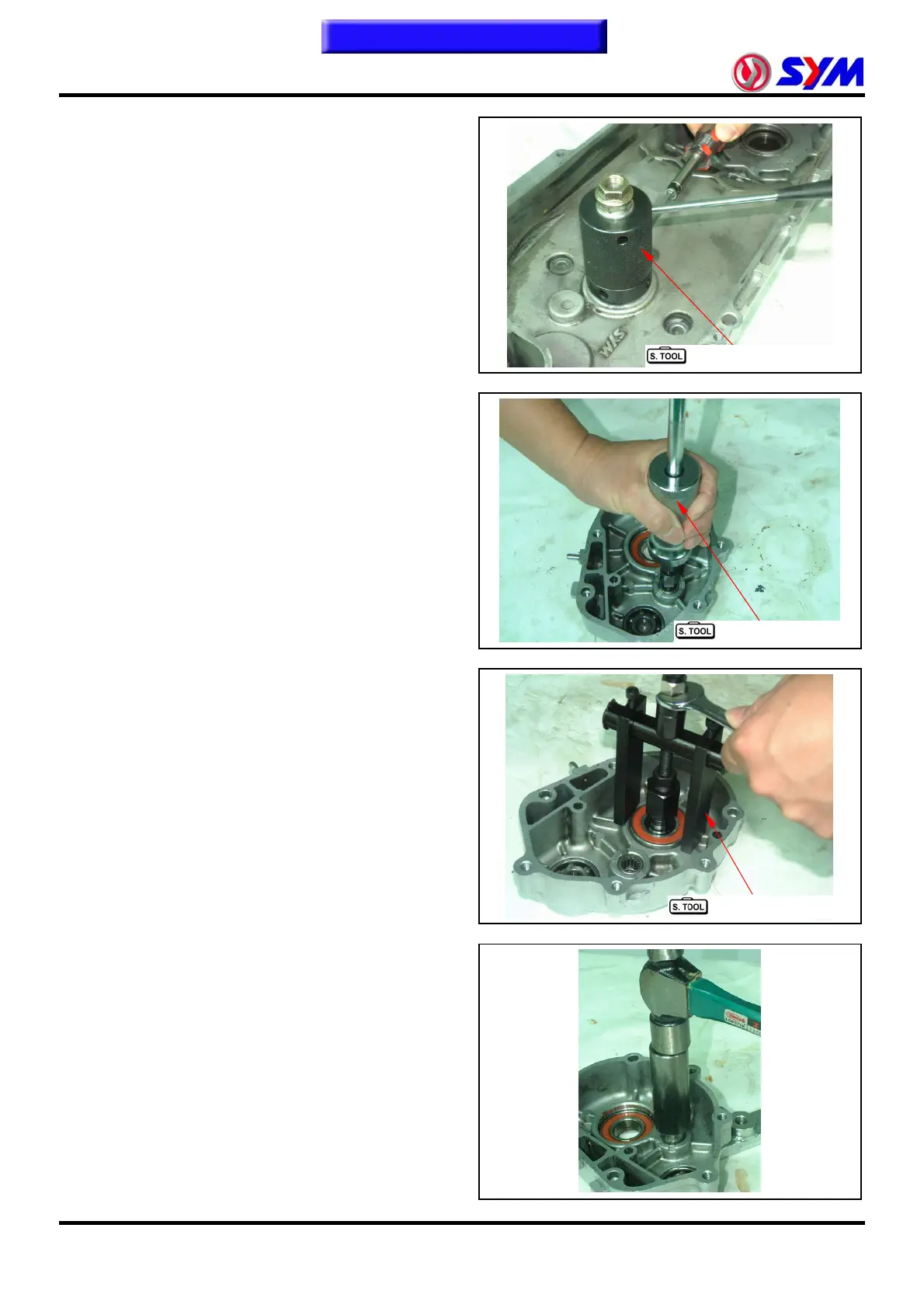

Install assembly directs puller bearing puller.
Special Service Tools:
Assembly directs puller SYM-2341110
Use screw driver hold bearing puller lower part,
and turn the bearing puller upper part to install the
drive shaft bearing.
Gear box cover side
Remove drive shaft bearing and counter shaft
bearing from gear box cover using following tools.
Special tool:
Inner bearing puller SYM-6204020 or
SYM-6204021
Remove oil seal, and then remove final shaft
bearing from gear box cover using following tools.
Special tool:
Inner bearing puller SYM-6204022
Install a new drive shaft bearing and counter shaft
bearing into gear box cover.
Assembly directs puller
Inner bearing puller
Inner bearing puller
