. Final Drive Mechanism
9-7

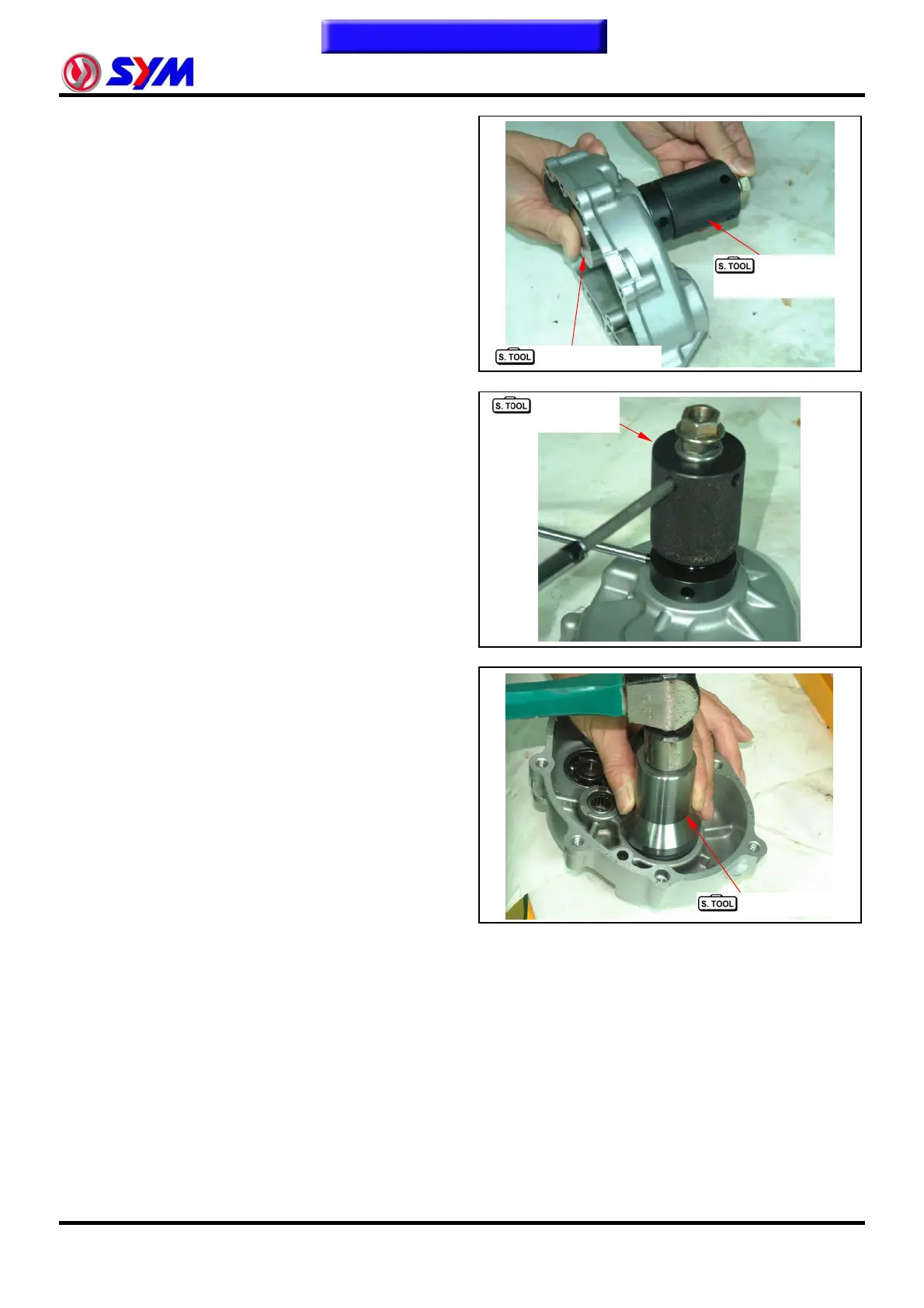

Install new final shaft bearing and bearing puller
onto left crankcase.
Special tool:
Bearing puller 6205 SYM-9100400-6205
Install assembly directs puller bearing puller.
Special Service Tools:
Assembly directs puller SYM-2341110
Use screw driver holder bearing puller lower part,
and turn the bearing puller upper part to install the
final shaft bearing.
Apply with grease onto final shaft oil seal.
Install the oil seal into gear box cover.
Special tool:
Oil seal driver 34*52*5 SYM-9125500-HMA
Assembly
directs puller
Bearing puller 6205
Assembly
directs puller
Oil seal driver
