Please note:
The right position is particularly important when installing
the electronic cartridge. As can be seen on the right of
the above illustration, the position also depends on the
installation situation of the flush valve housing: Horizontal
housing = shut-o on the left, electronics on the right (fig.
a); Vertical housing = shut-o at the top, electronics at the
bottom (fig. b). If the cartridge is installed incorrectly, the
function may operate to start with, however, malfunctions
will occur after a while.

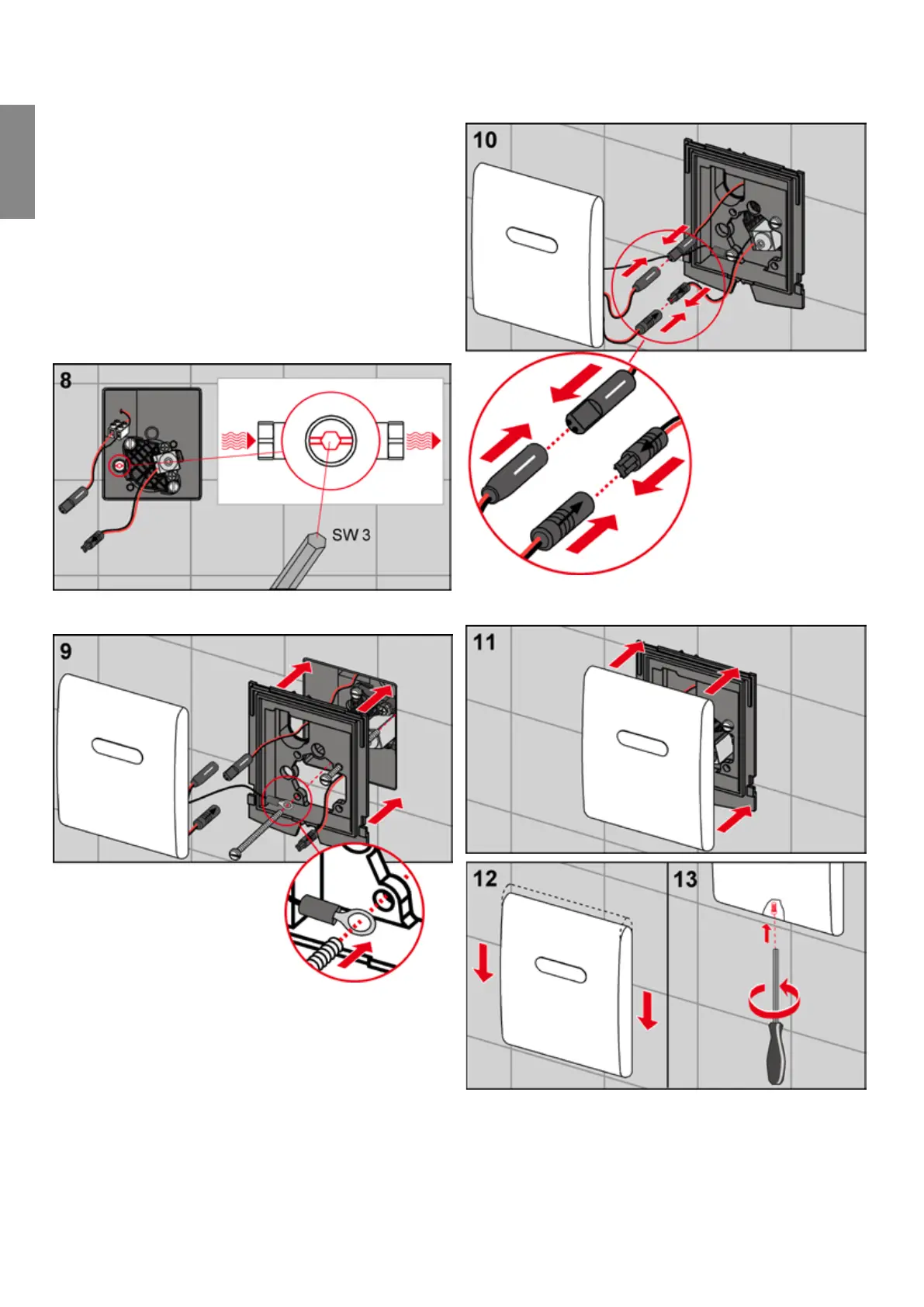

Open the inlet flow control.
Earth the electronics via the fastening screw on the flush
valve housing (see details) and screw the support frame
onto the urinal flush valve housing.
Connect the battery and cartridge to the electronics.
Finally, install the flush plate cover and mount the van-
dal-resistant screw supplied.
TECE flush plates – TECEplanus infrared electronics
-
