... Geronto module with conduits

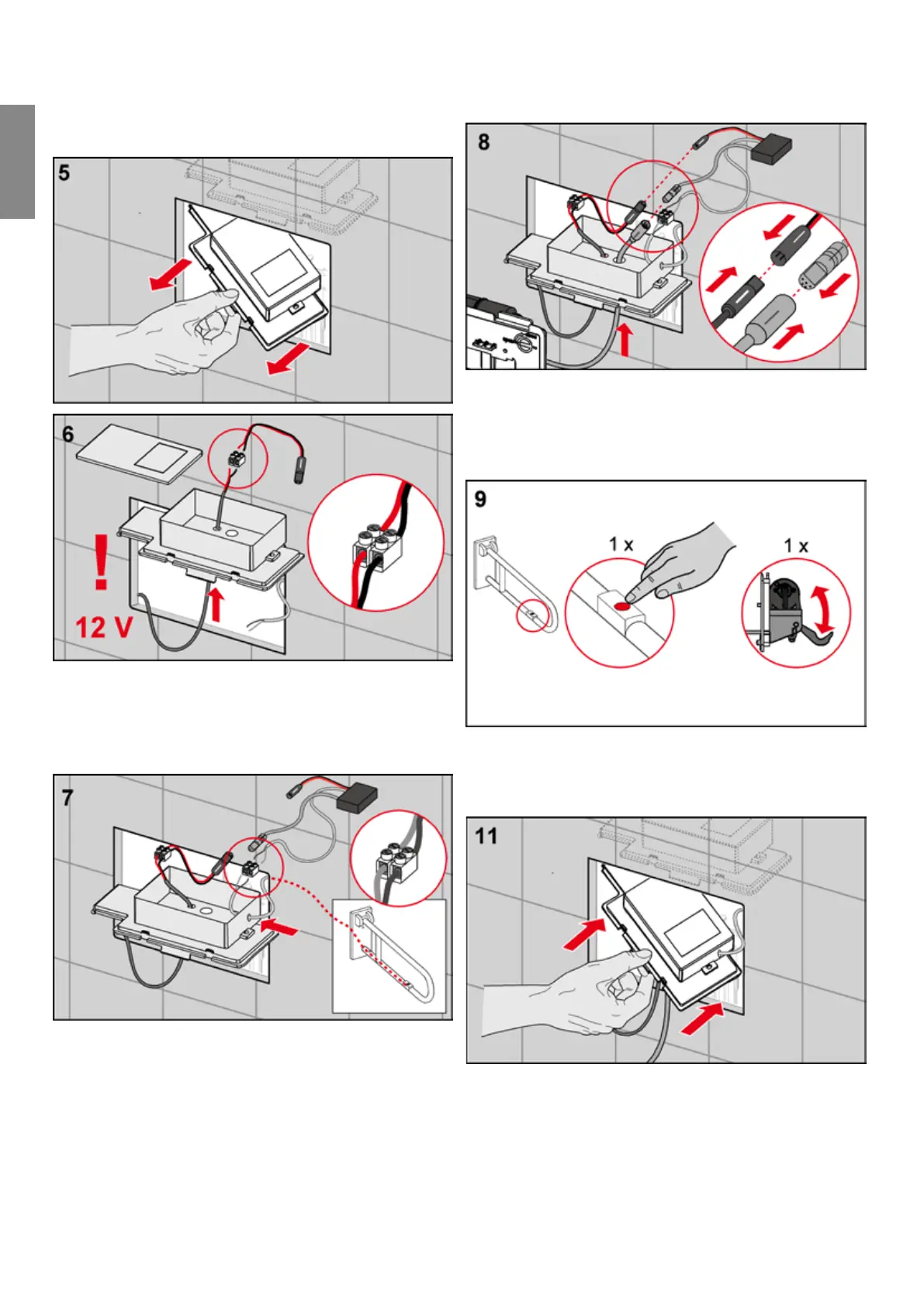

Open the cistern cover and remove it with the installation
box. Guide the cable from the transformer through the
bottom opening and connect it to the mains connection
adapter (ensure correct polarity – see details in fig. ).
Guide the cable from the switch on the safety support arm
from the side into the box and connect it to the electronics
(terminal strip). Ensure correct polarity.
Then connect the electronics first to the motor (grey plug)
and then also to the batteries (black plug). If the installation
is correct, the motor will be activated once for checking
purposes.
Now check that the electronics are functioning correctly:
To do this, press the button again to activate the motor
(once).
Place the electronics in the installation box, seal and place
back in the cistern.
TECE flush plates – TECEplanus electronics, cable-connected remote release
-
