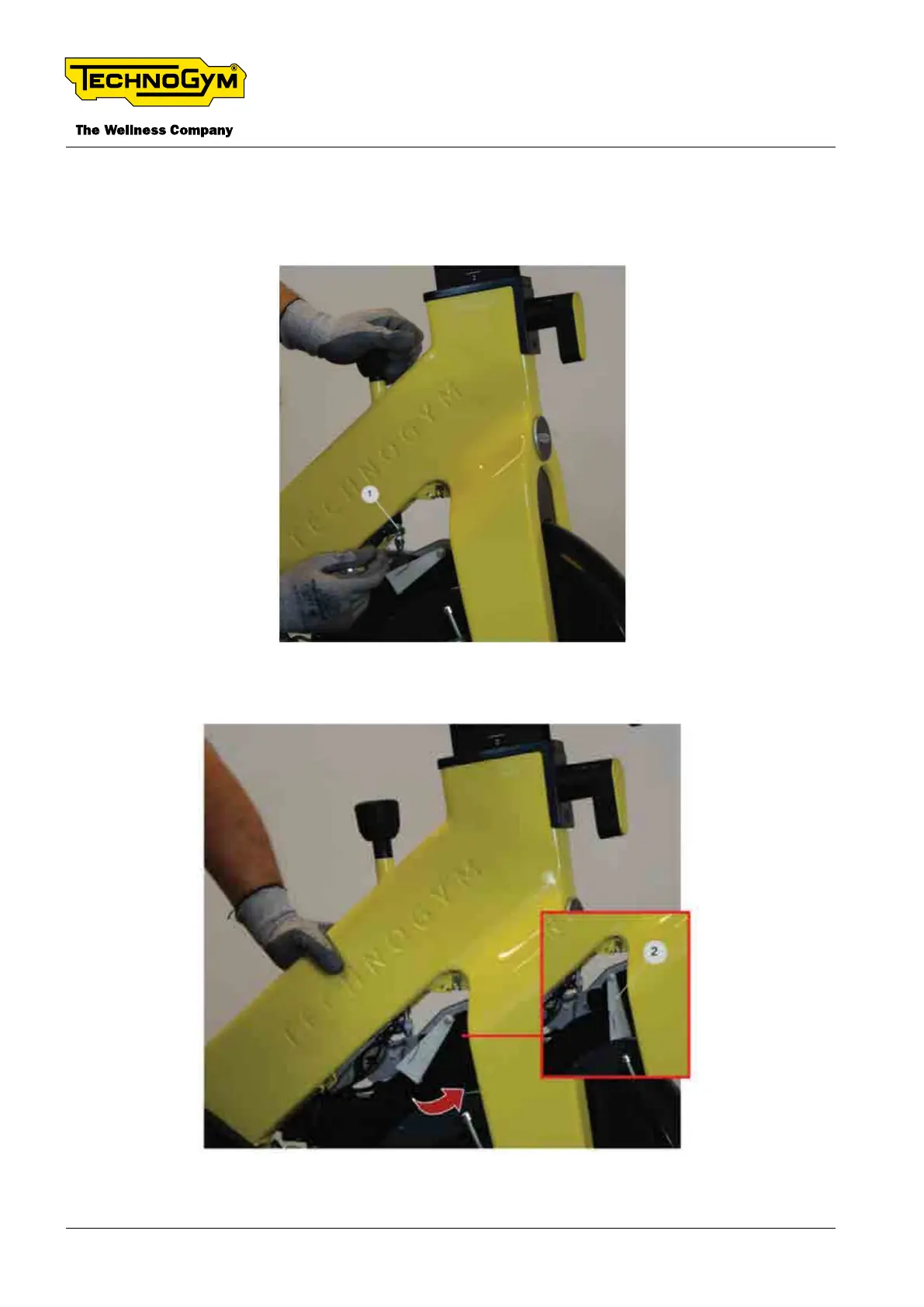

3. Check that the knob is in a horizontal position (must be the zero position).
4. If the knob is not in a horizontal position, move it so it is in this position. Keep the knob sta-
tionary with one hand and adjust the self-locking nut (1). Test it again.
Fig. 24
5. Unhook the template [2] and position it as shown in gure.
Fig. 25
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 42 - TSG-00187-EN - Uncontrolled copy if printed
