6. Check that the brake is in the correct position (there must be no plays when pressing the
knob).
ATTENTION: DO NOT PRESS TOO HARD ON THE KNOB TO AVOID FLEXING THE
COMPONENT [2].

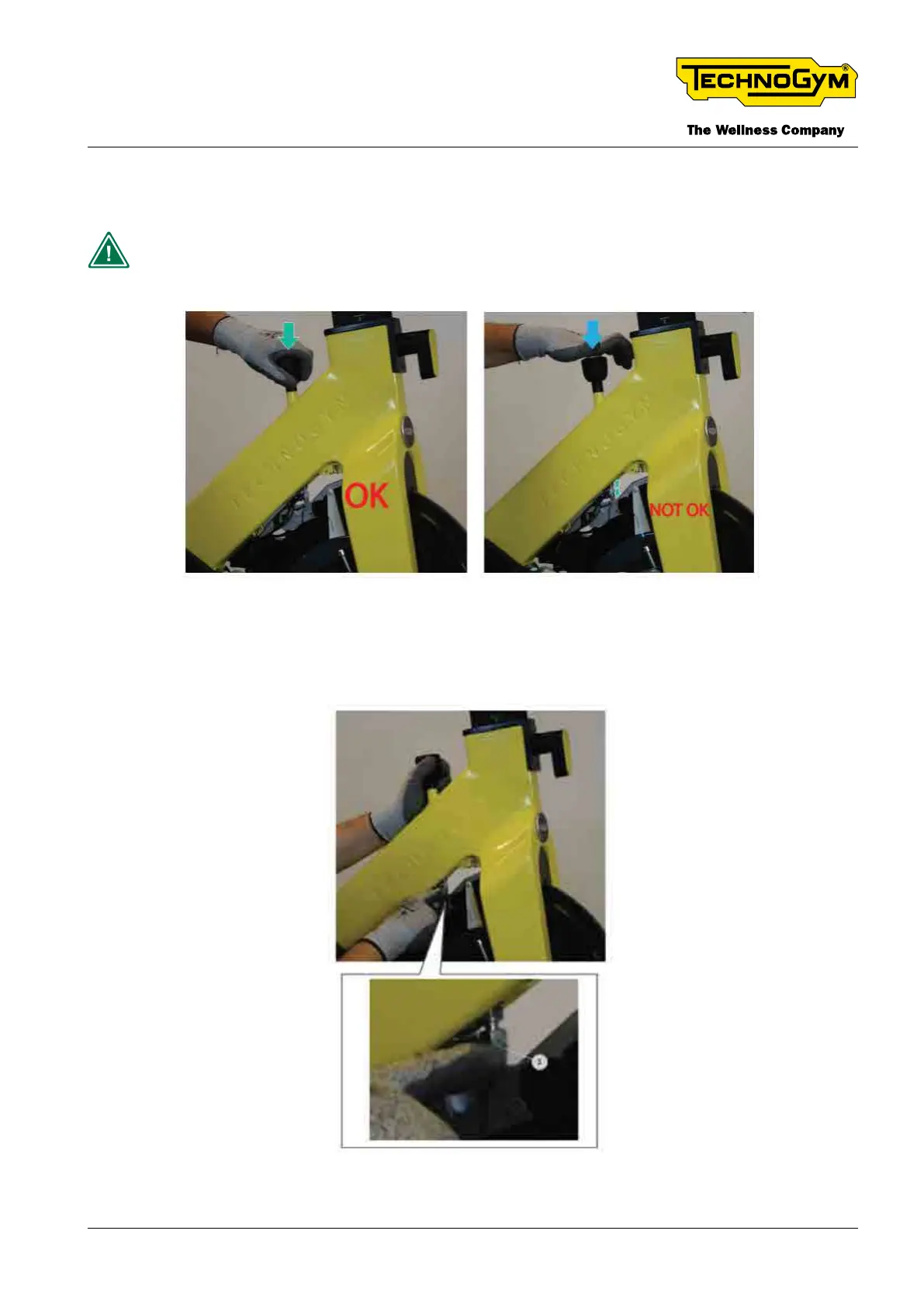

Fig. 26
7. If the brake is not in the correct position, the nut [3] must be adjusted until reaching the correct
position of the brake.(there must be no plays when pressing the knob).
Fig. 27
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
- 43 -TSG-00187-EN - Uncontrolled copy if printed
