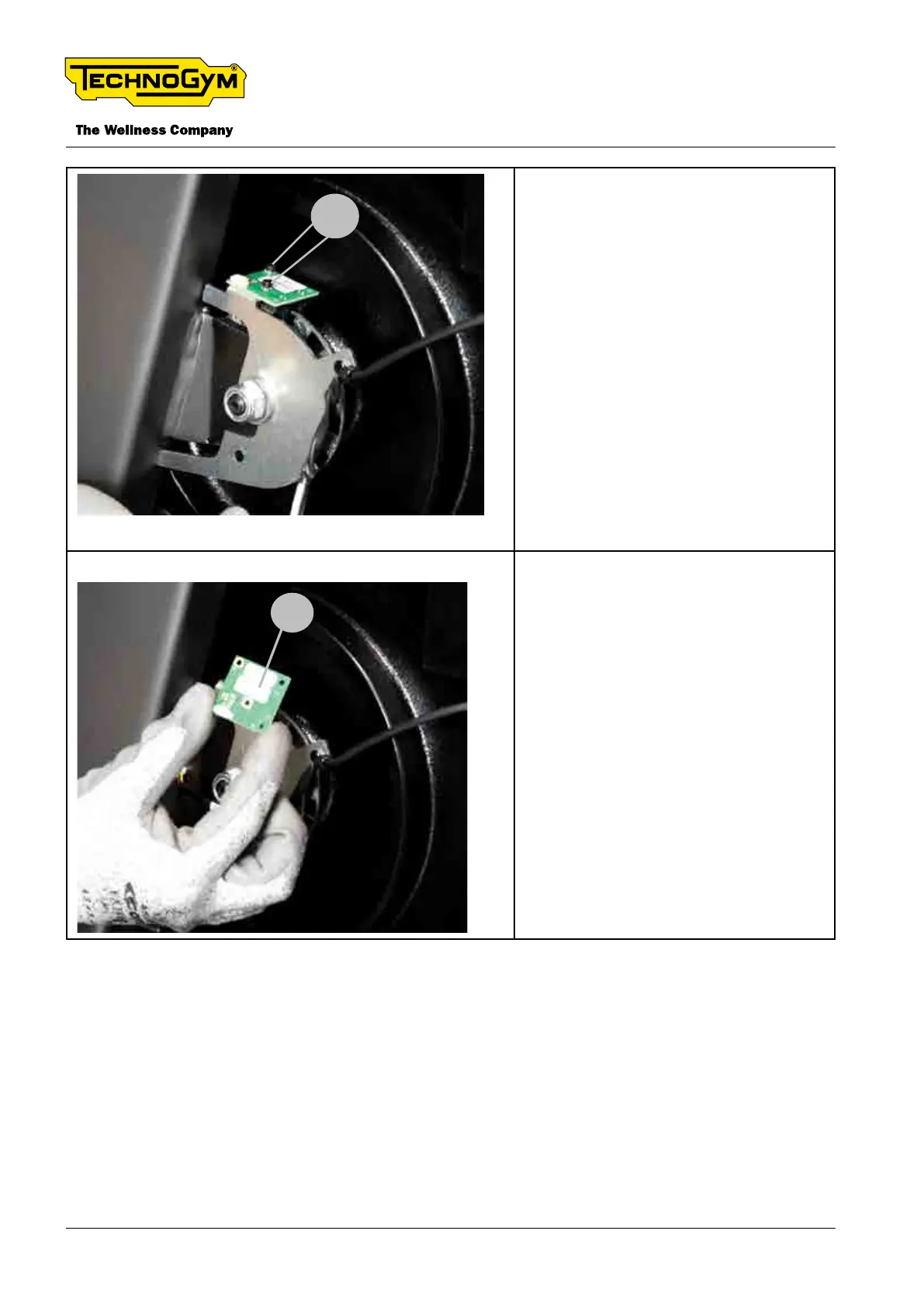

Remove the two screws (H). (TOOL:

2.5mm hexagon key wrench)

It’s now possible to remove the RPM

sensor board (I).

TECHNOGYM BIKE LIVE Technical Service Guide

Rev. 2.0

- 70 - TSG-00187-EN - Uncontrolled copy if printed
