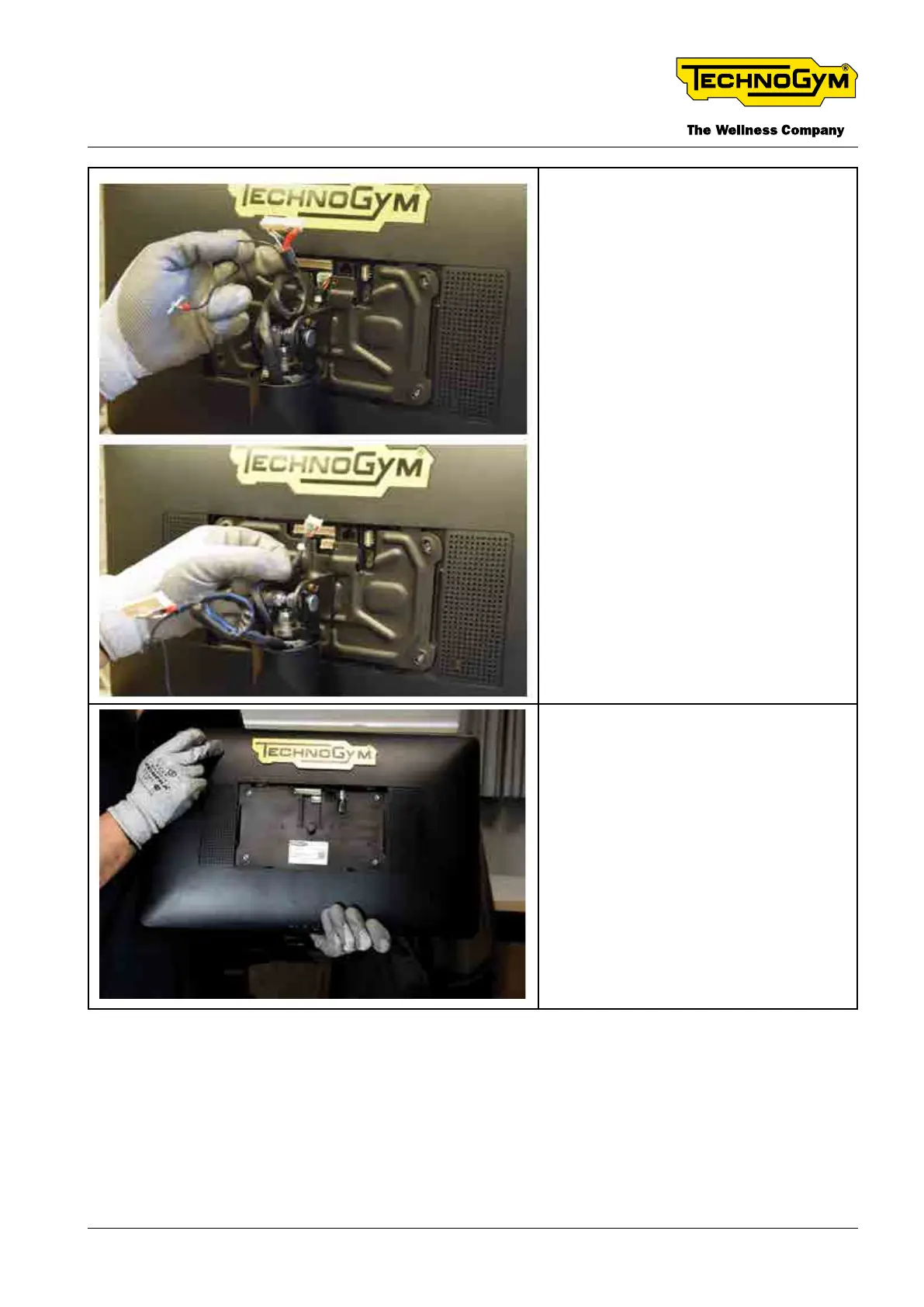

Disconnect the two connectors.

It’s now possible to remove the display.

TECHNOGYM BIKE LIVE Technical Service Guide

Rev. 2.0

- 81 -TSG-00187-EN - Uncontrolled copy if printed
