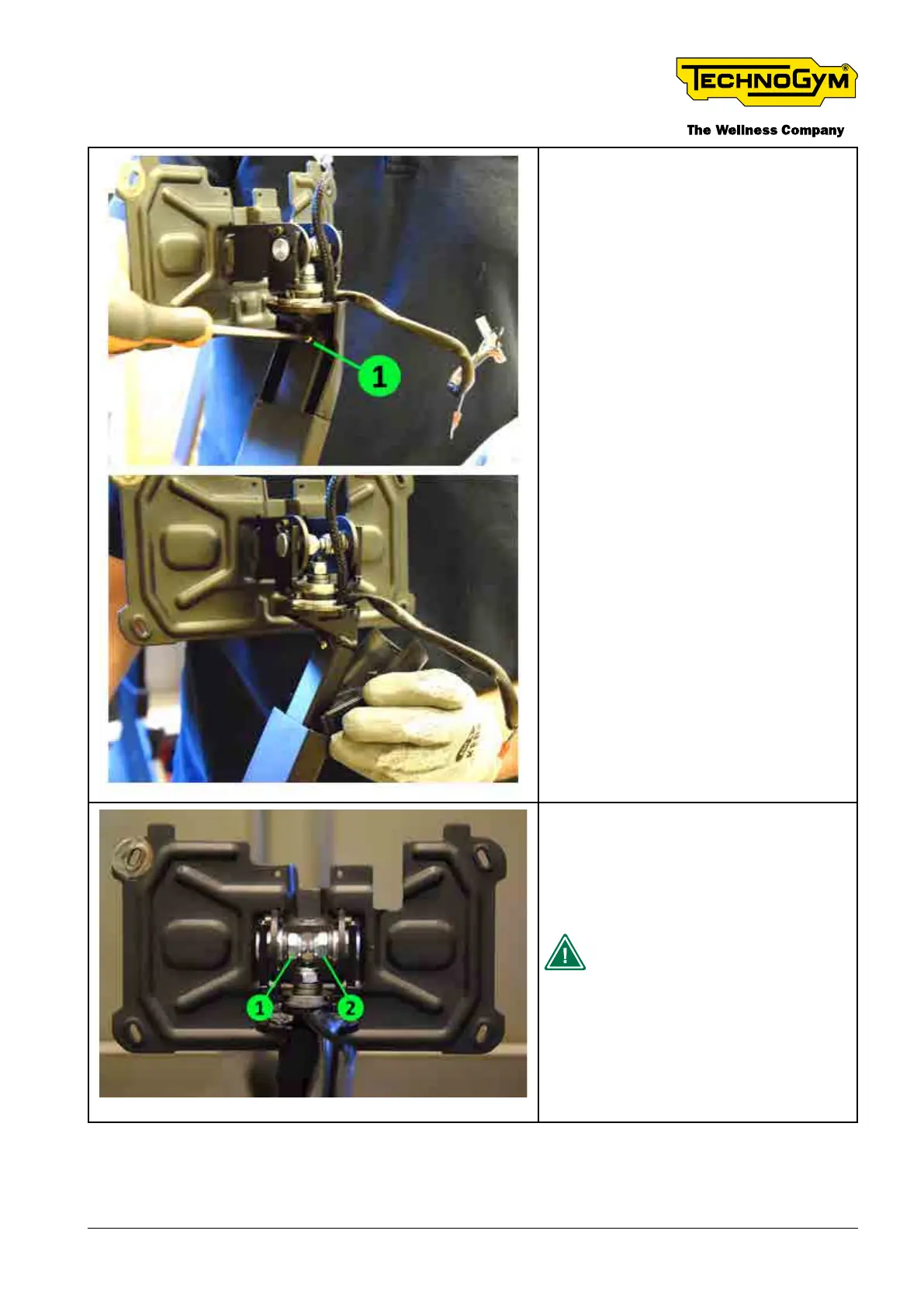

Remove the screw to disassemble the
second part of the casing, (TOOL: Me-
dium-sized Phillips screwdriver).
Remove the two nuts to disassemble
the display support, (TOOL: 13 mm
open end wrench).
ATTENTION: REASSEMBLE
WITH A TORQUE OF 16 NM -
12 LBF.-FT, (TOOL: TORQUE
WRENCH) AND REPLACE
THE NUTS [1], [2] WITH THE
NEW ONES.
TECHNOGYM BIKE LIVE Technical Service Guide
Rev. 2.0
