RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.6

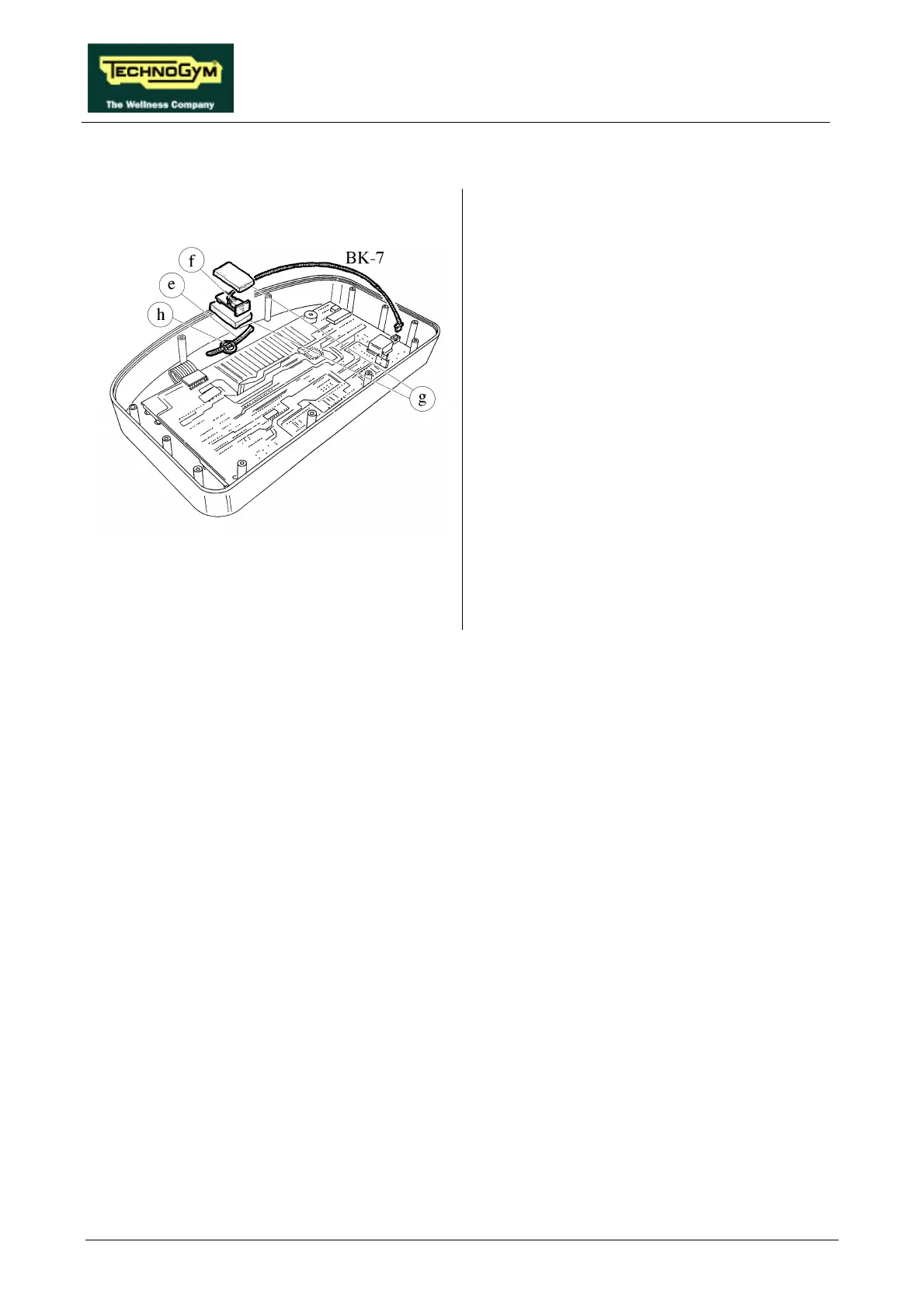

Version B: receiver positioned inside the display, secured by a strap.
Figure 7.5-3
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Cut the fixing strap e.
2. Disconnect the connector f of RECEIVER
cable BK-7.
To assemble the new RECEIVER, with the
display on a work bench:
1. Connect the connector f of RECEIVER cable
BK-7.
2. Position the RECEIVER between the foam
pads g as shown in the figure at left.
3. Passing the strap through clamp h, fix and
secure with the strap.
