RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.7

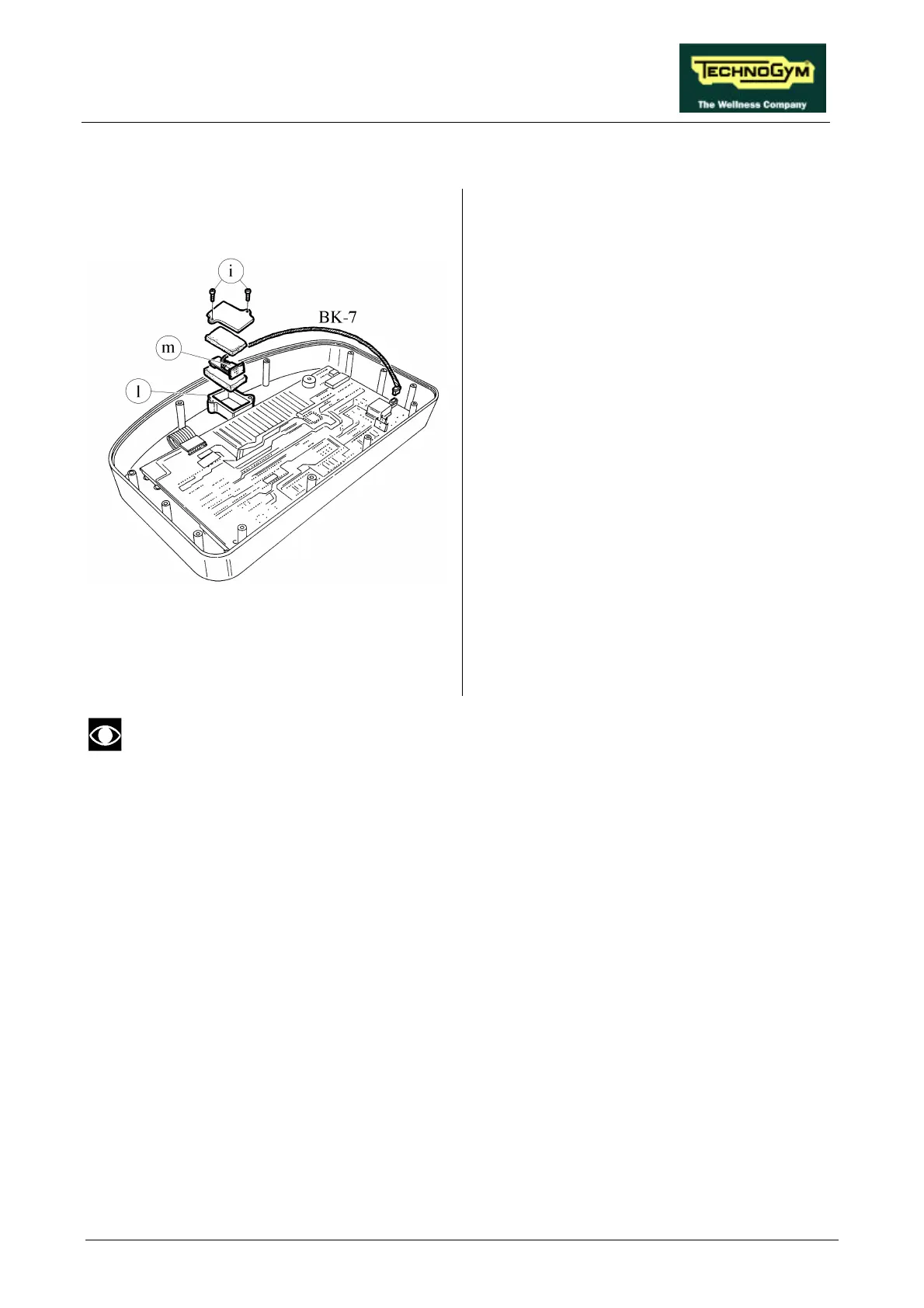

Version C: receiver housed in a box inside the display.
Figure 7.5-4
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Unscrew the screws i on RECEIVER housing
box l using a small Phillips screwdriver.
2. Disconnect the connector m of RECEIVER
cable BK-7.
To assemble the new RECEIVER, with the
display on a work bench:
3. Connect connector m of RECEIVER cable
BK-7.
4. Position the RECEIVER in the box as shown
in the figure at left.
5. Lock down the screws i of the RECEIVER
housing box.
WARNING: route the cables as described in paragraph 11.1. “Technical notes on cardio
receivers”.
