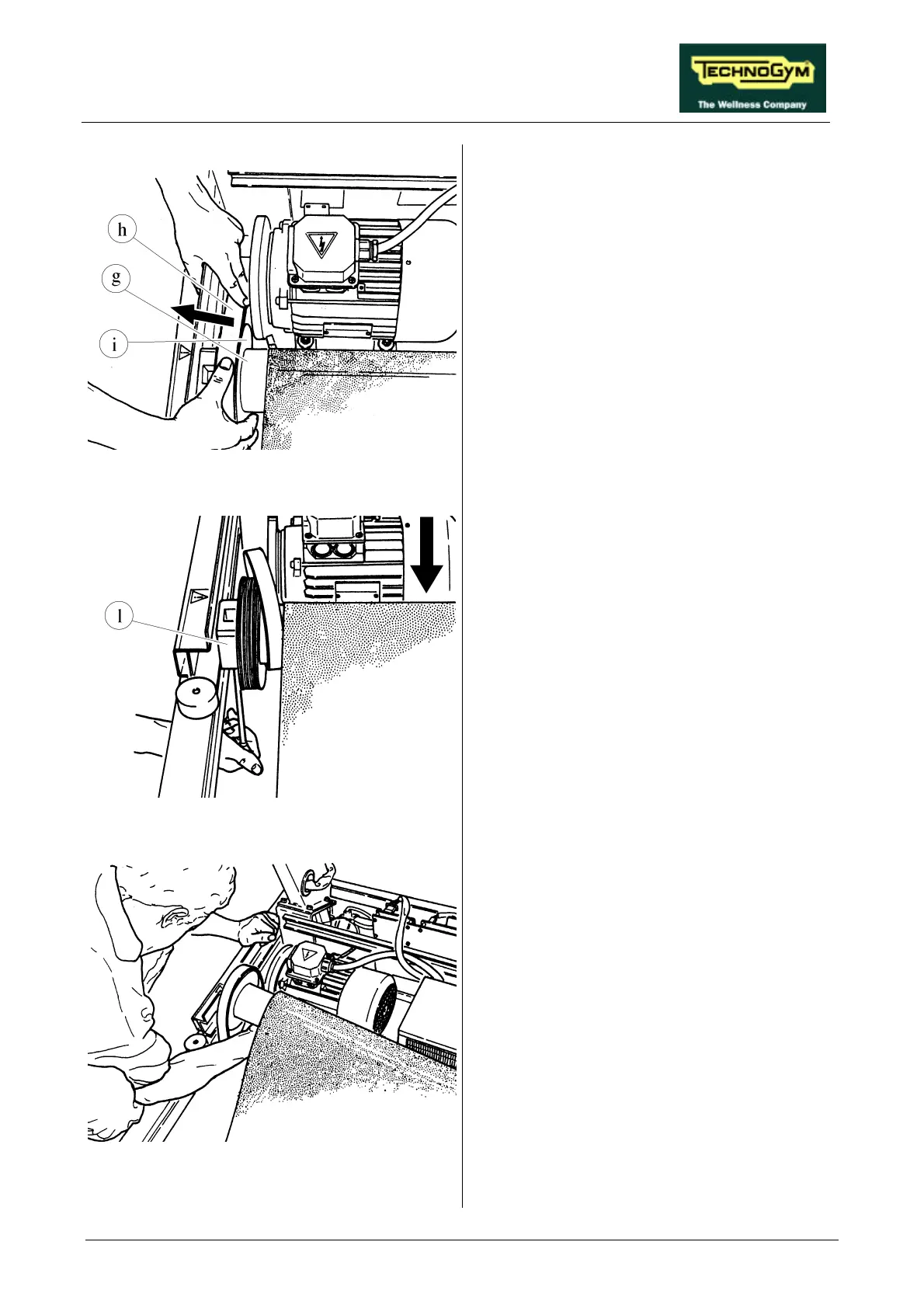

Figure 7.10-4
9. Move the belt motor toward the DRIVING
ROLLER g and pull outward to remove belt
h from the motor pulley i.
Figure 7.10-5
10. Unscrew the 2 fixing screws of the DRIVING
ROLLER l using a 6-mm Allen T wrench.
Figure 7.10-6
11. Disengage the DRIVING ROLLER from its
supports.
12. Remove the MOTOR BELT by pulling it out
from the DRIVING ROLLER.
13. Remove the DRIVING ROLLER.
14. Remove the TREAD BELT.
