RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.23

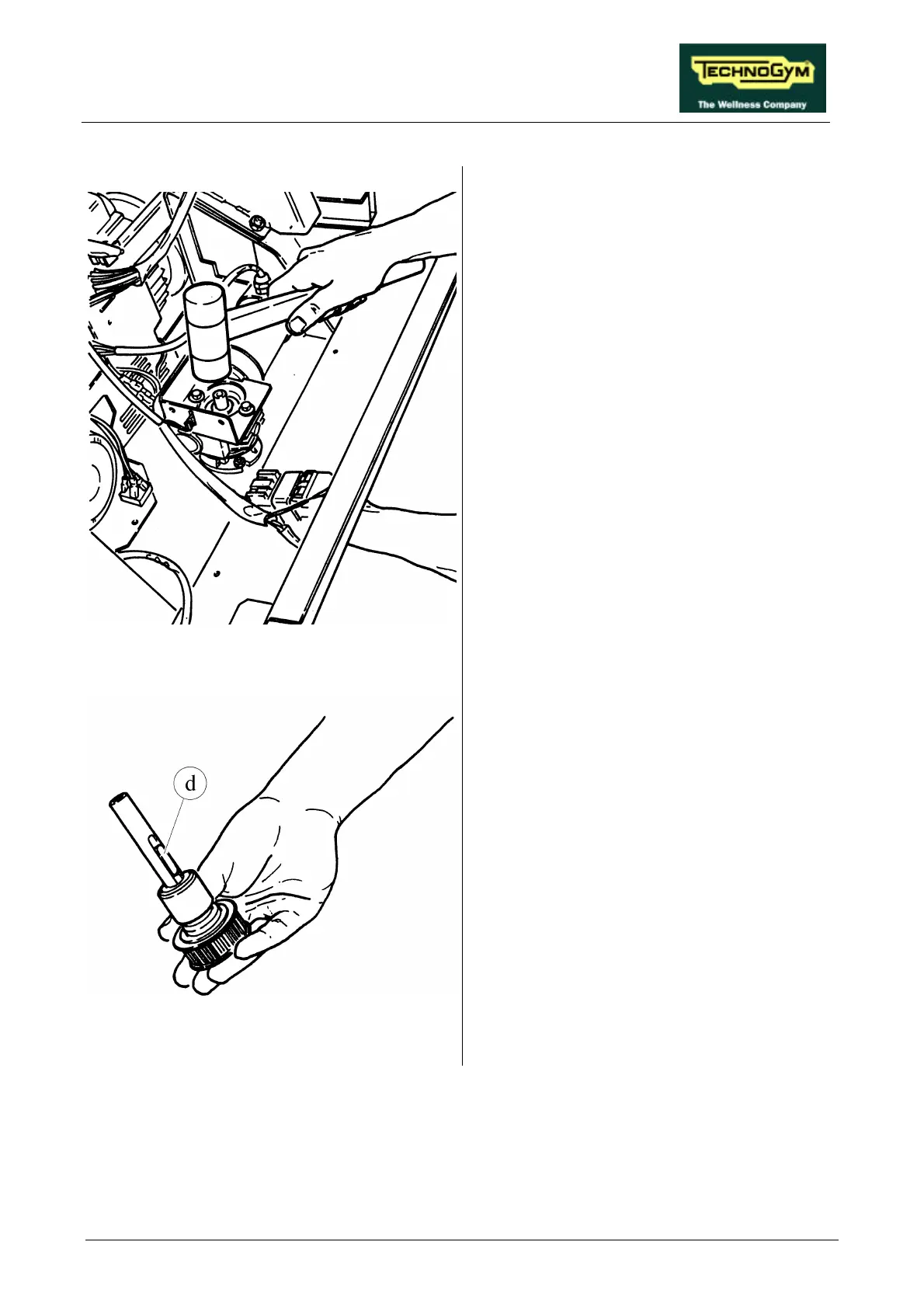

Figure 7.15-3
8. Strike the motor shaft with a rubber hammer,
and, using a pointed tool if necessary, remove
the shaft from the lower side of the machine.
Figure 7.15-4
9. Recover the tab d.
Continued on the following page→
