RUN XT: Service & Maintenance Manual - rev. 2.0
Page 7.24

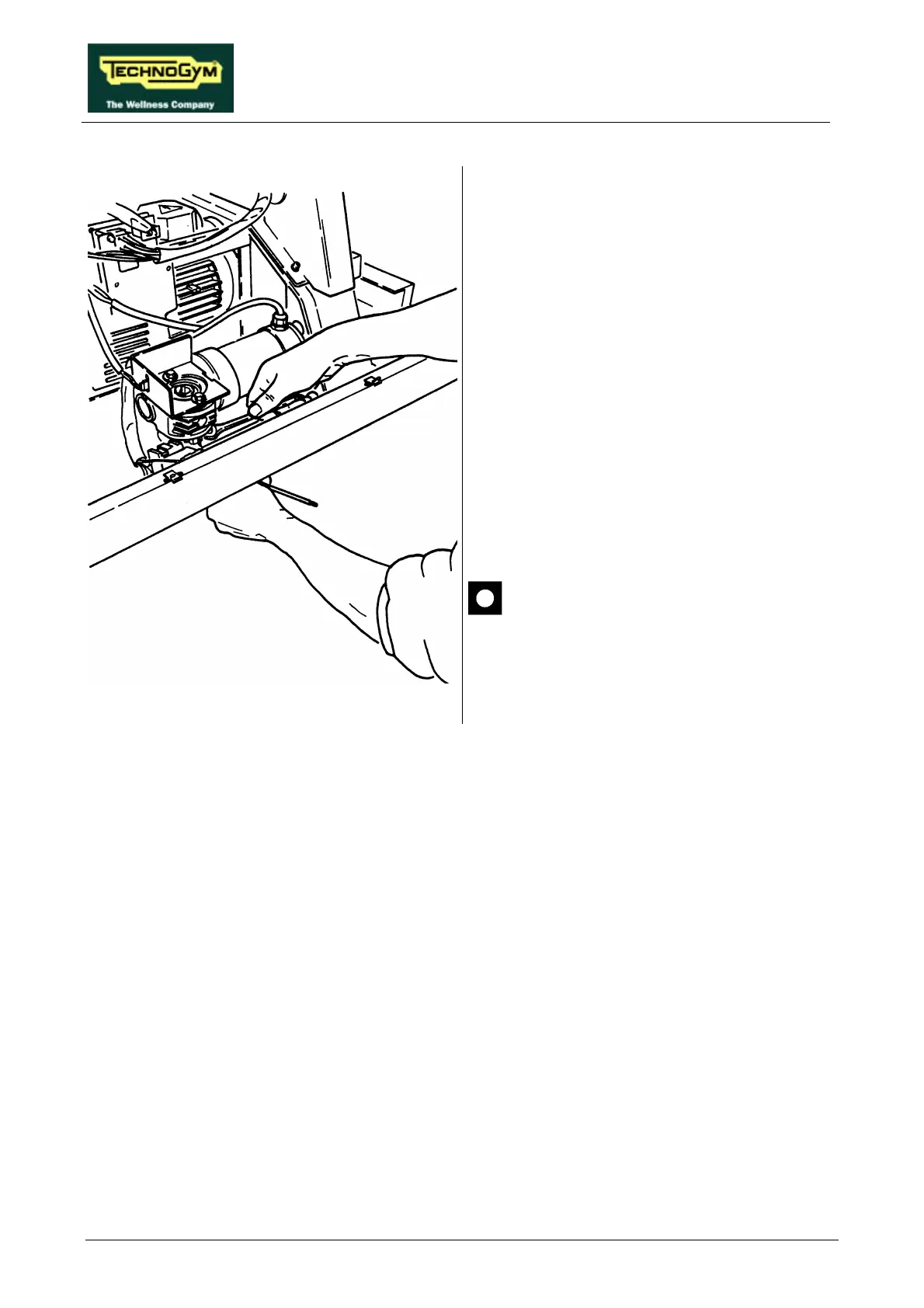

Figure 7.15-5
10. Disassemble protective housing of the
encoder wheel, using, depending on the type
of motor:
• “BONFIGLIOLI” motor: 10-mm wrench;
• “SITI” motor: 8-mm wrench.
11. Unscrew the 4 fixing screws of the UP-
DOWN MOTOR using a 4-mm Allen T
wrench and holding the nut in place with a
10-mm wrench.
12. Remove the UP-DOWN MOTOR.
To reassemble the UP-DOWN MOTOR, carry
out the above steps in reverse order.
After completing the procedure, adjust
the tension of the up-down motor belt as
instructed in paragraph 8.5. .
